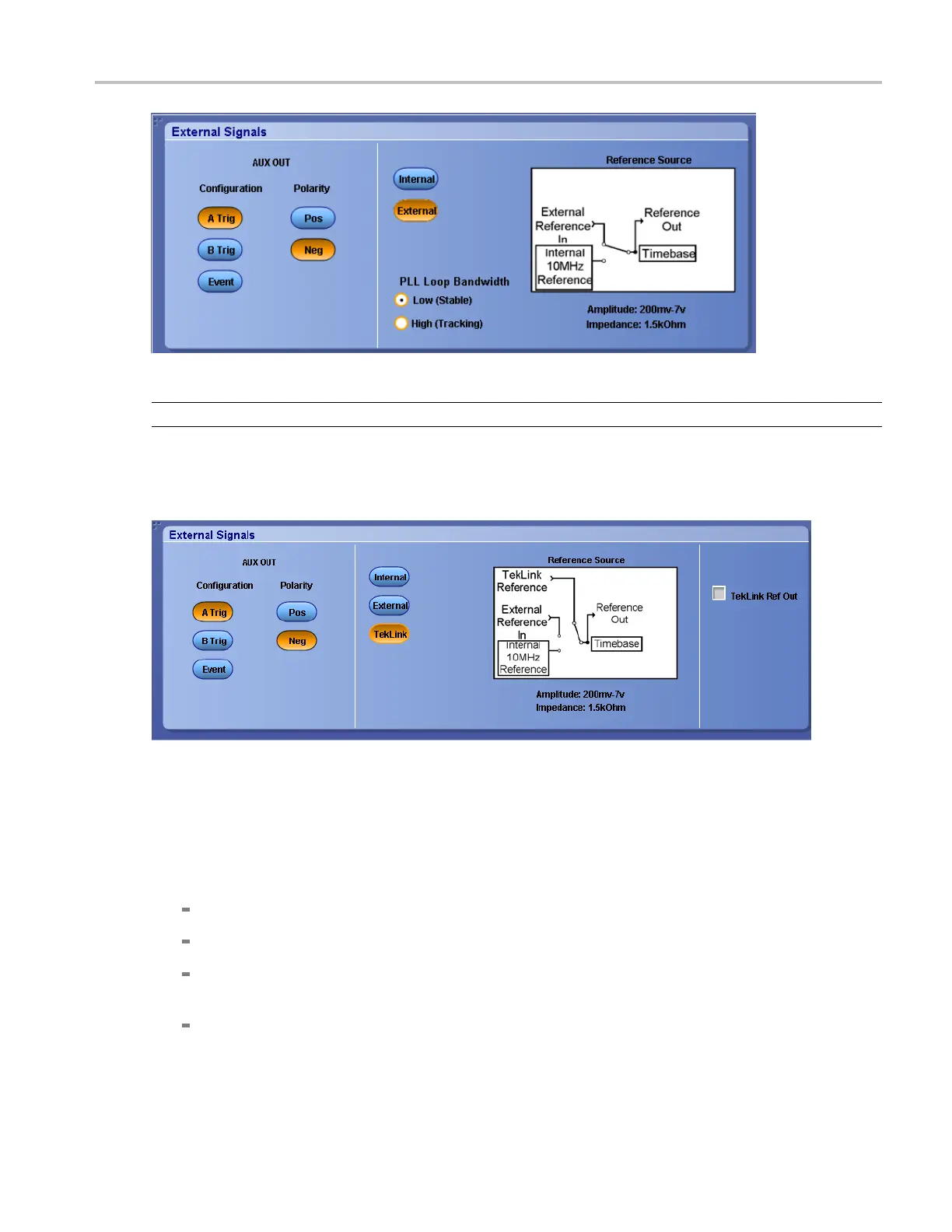

Utilities External Signals Control Window

NOTE. TekL

ink is available only on MSO70000C and DSA/DPO70000/D Series instruments.

The oscilloscope detects TekLink or TekLink Hub connections and allows you to select TekLink as a

referen

ce source.

To use

To send a signal from the Aux Out BNC connector when the instrument triggers:

1. Clickonthedesiredconﬁguration button: A Trig, B Trig, Event, or Ref Out.

A Trig to send a signal when the A Trigger generates a trigger

B Trig to send a signal when the B Trigger generates a trigger

vent to send a signal out the connector when cer tain events occur, such as a ma sk test failure or

completion

ef Out to send a copy of the internal reference clock out the connector

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 547
