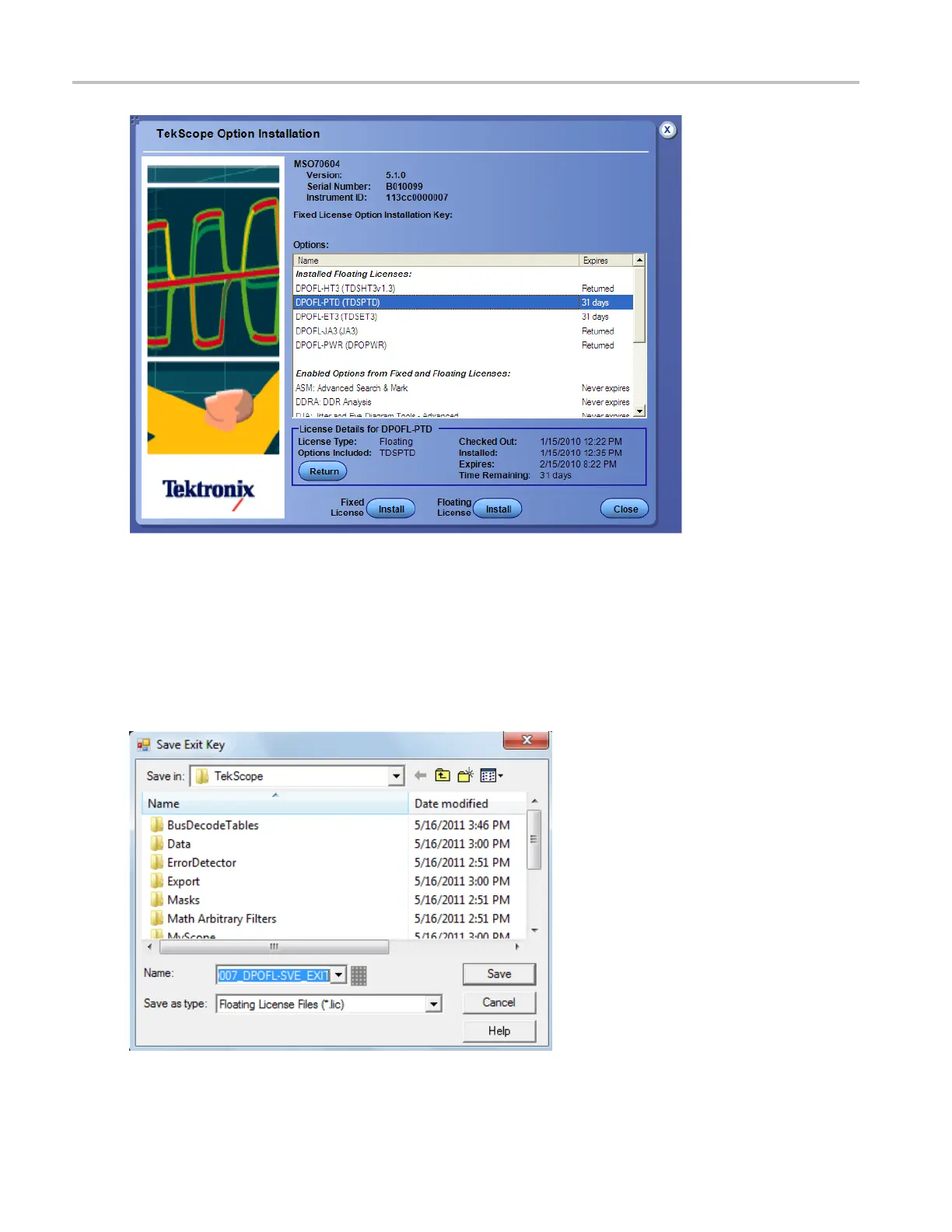

Utilities Return the Floating License for the Installed Option(s)

3. Select the Option (for example DPOFL-PTD (TDSPTD)) in the Tekscope Option Installation dialog

box and click the Return button (when the license is still valid) or click Exit Key button (when the

license has expired).

A dialog box appears. Click OK.

4. Browse to the path where you want to save the Exit Key ﬁle.

568 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
