Oscilloscope Reference Cos

Cos

Inserts the text COS( into the math expression.

Cosh

Inserts the text COSH( into the math expression. The COSH function computes the hyperbolic cosine of x.

Crossing pe

rcent

Crossing p

ercent measurement is the eye crossing point expressed as a percentage of eye height.

Crossing Percent = 100 × [(pCross1Mean - pBaseMean)/(pTopMean - pBaseMean)]

Cursors menu

Use the Cursors menu options to select cursor types, mode, and position, and to turn cursors on and off.

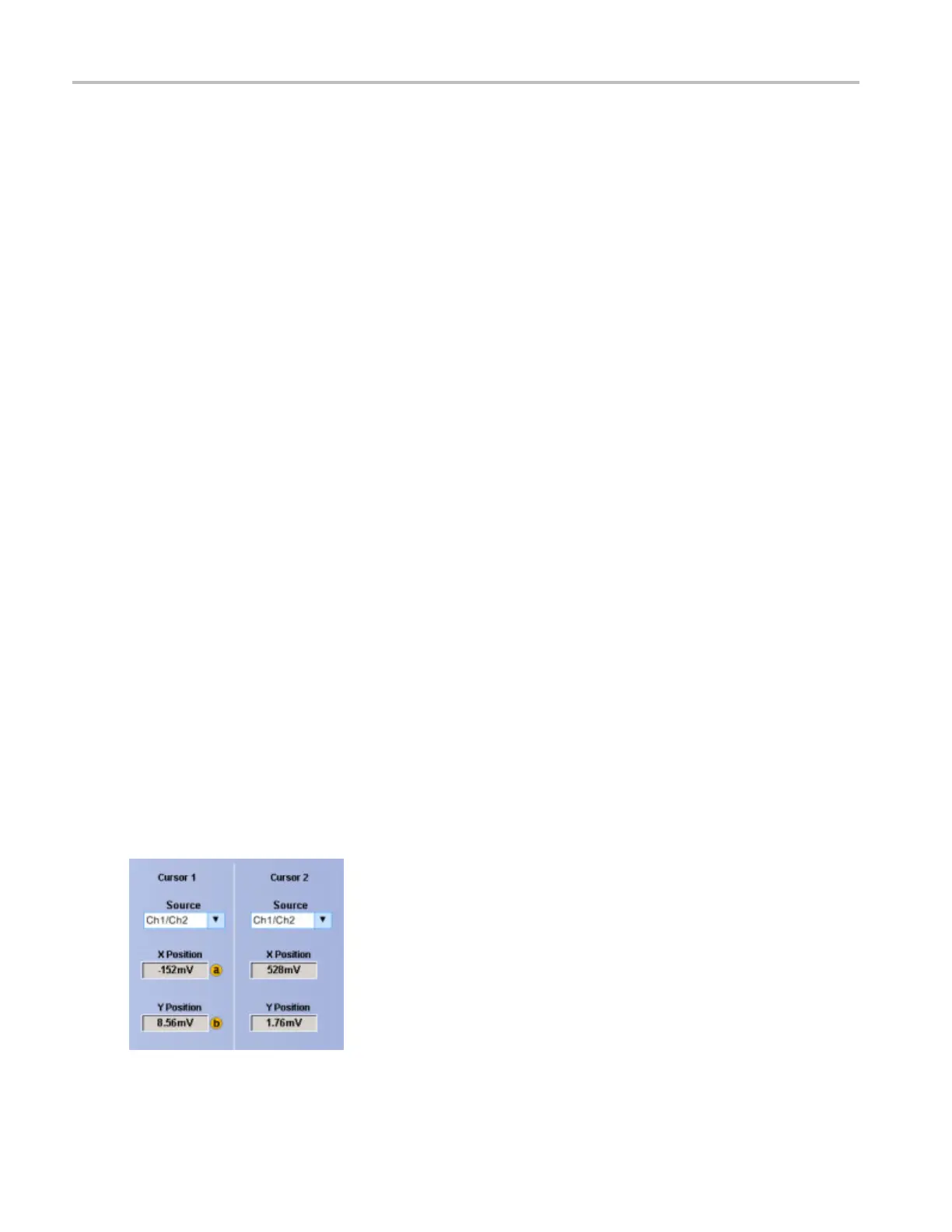

Set the cursor sources (XY display)

From the Cursor menu, select Cursor Setup.

Overview

Use these controls to deﬁne the source for both Cursor 1 and Cursor 2 for any cursor type.

800 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
