Oscilloscope Reference Dead time

Dead time

Dead time is the time that the instrument requires to process an acquisition.

The instru

ment cannot acquire any new data until the previous data has been processed. If dead time is

long, the instrument can miss acquiring infrequent events.

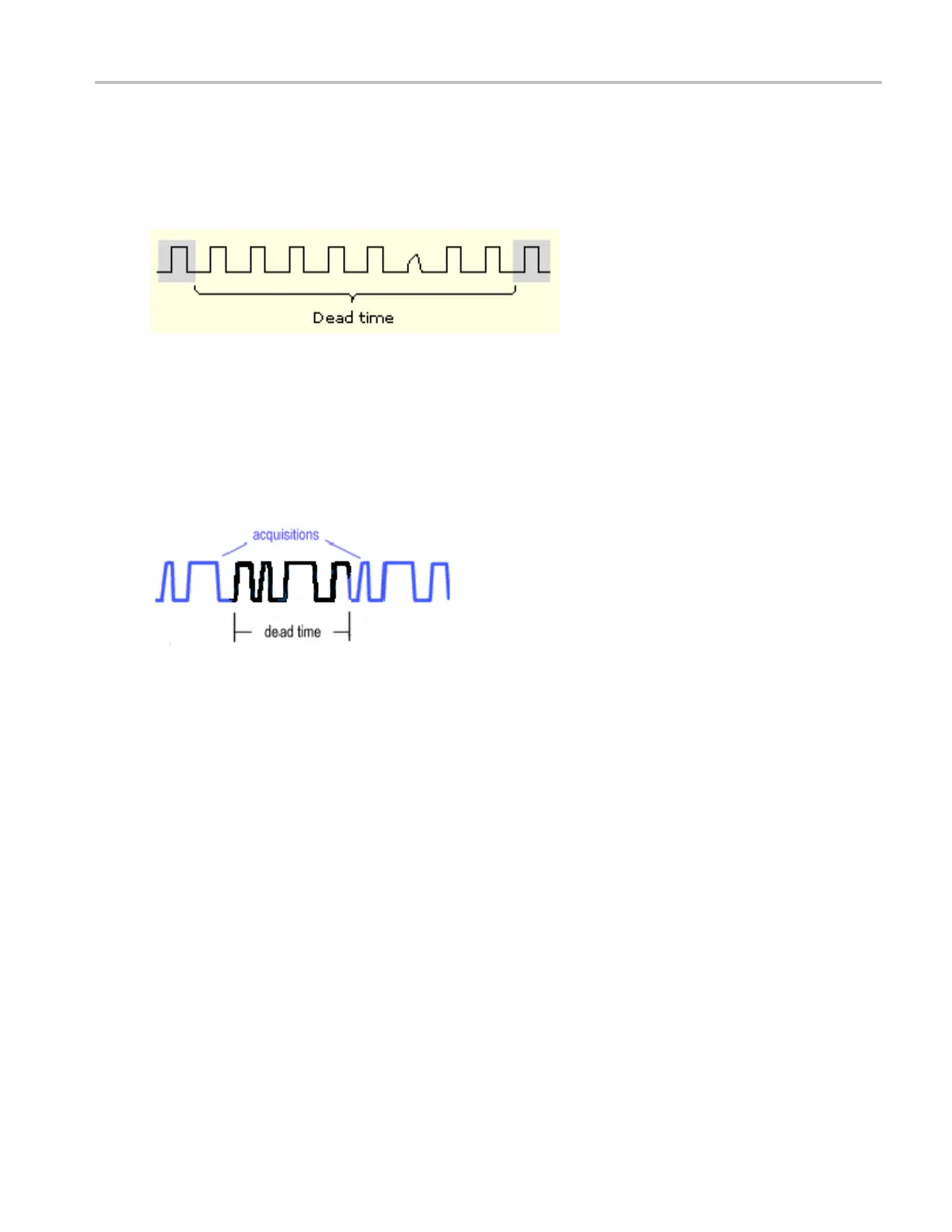

"Dead tim

e" between acquisitions
