Oscilloscope Reference Math arbitrary ﬁlters

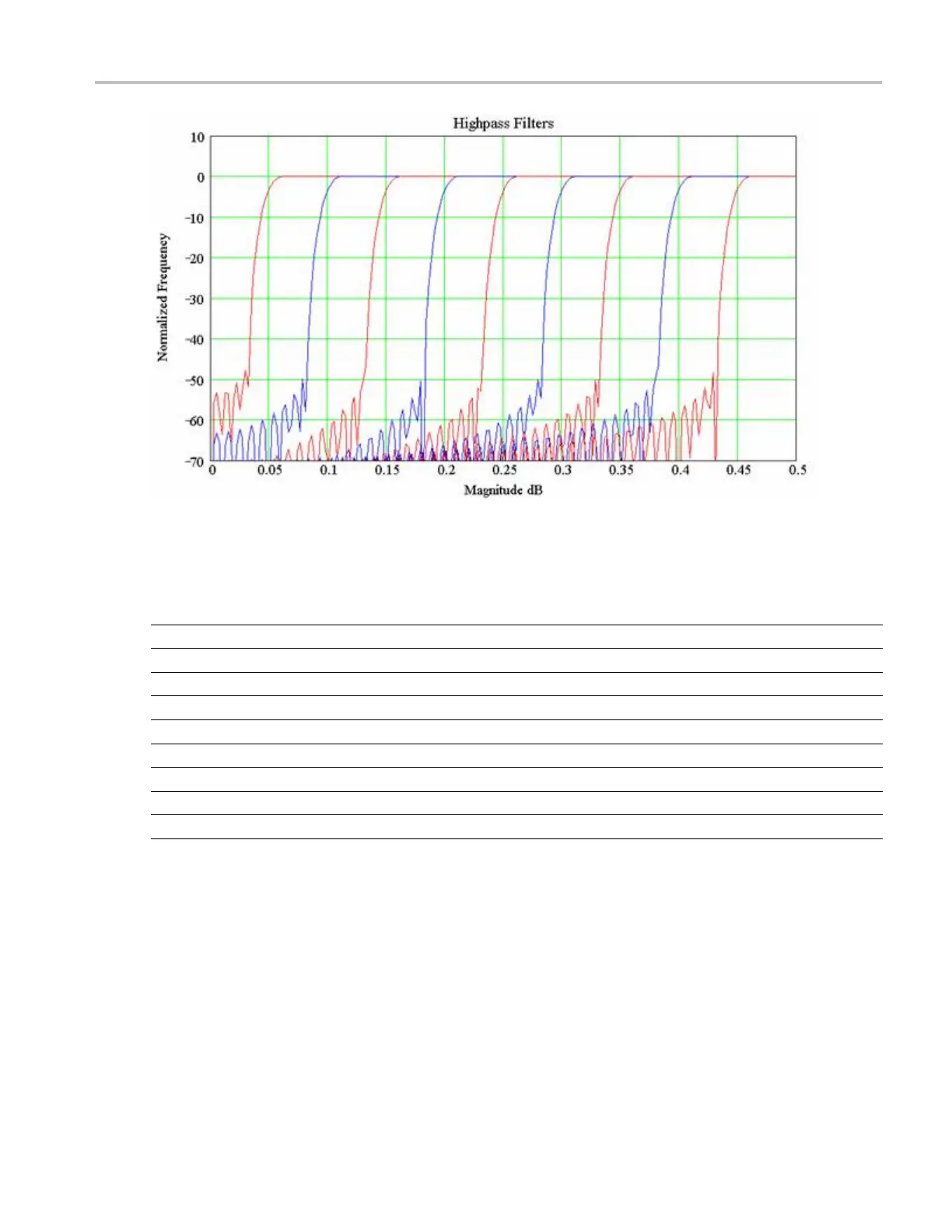

Frequency response of the available high pass ﬁlters

The following table lists the available high pass ﬁlters:

File name

Normalized cutoff frequency

highpass_0.05bw.ﬂt

0.05

highpass_0.10bw.ﬂt

0.10

highpass_0.15bw.ﬂt

0.15

highpass_0.20bw.ﬂt

0.20

highpass_0.25bw.ﬂt

0.25

highpass_0.30bw.ﬂt

0.30

highpass_0.35bw.ﬂt

0.35

highpass_0.40bw.ﬂt

0.40

highpass_0.45bw.ﬂt

0.45

xxx

Band pass ﬁlters

Each ﬁlter has a bandwidth of 0.05 times the sample rate. They will operate at any sample rate. The

available center frequencies are 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45. Stop band attenuation is

approximately -60 dB and pass band ripple is around 1dB.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 859
