Removal and Installation Procedures
SPG600 & SPG300 Sync Pulse Generators Service Manual 6-9

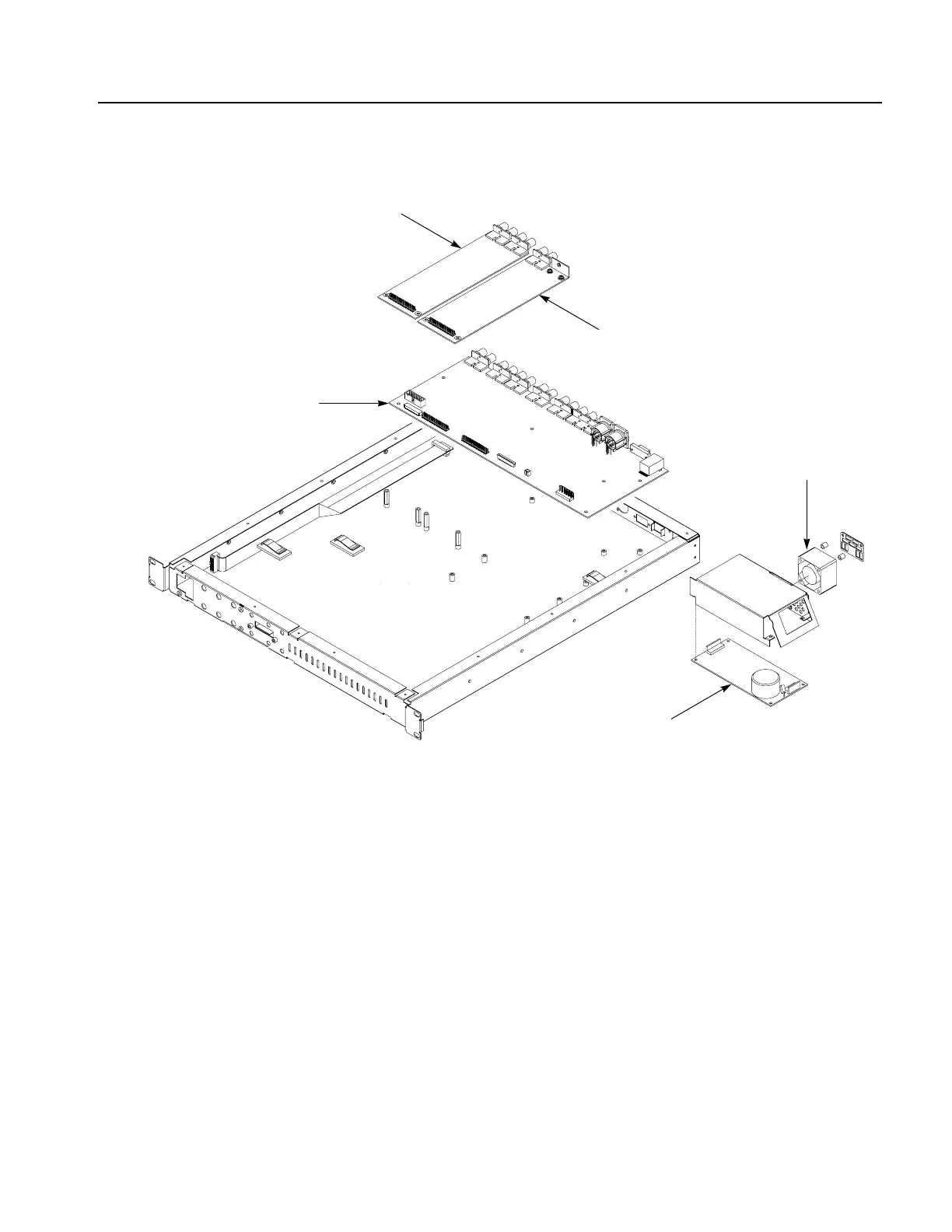

Figure 6-3: SPG600 internal modules
A10 Main board
Fan
Power supply
A30 analog board (Option 02)
A40 SDI board (Option 03)
