Tektronix SPG600 Service Manual

Troubleshooting
6-40 SPG600 & SPG300 Sync Pulse Generators Service Manual

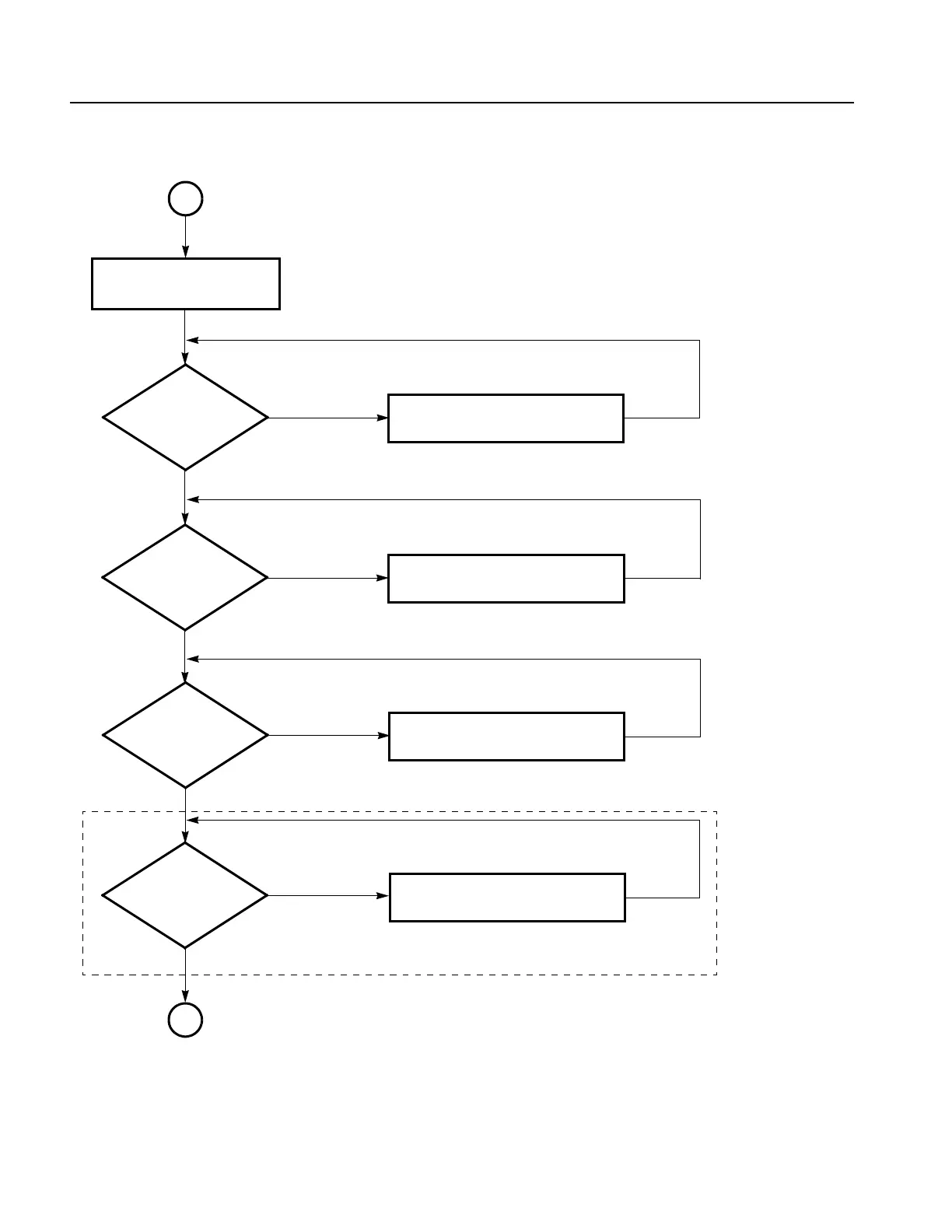

Figure 6-3: Troubleshooting procedure (3)
2
Perform Functional Check
Procedure in the User Manual.
Is the Genlock
function operating
correctly?
Replace the A10 Main board.
No
Yes
Are signals output
from CH 1 to CH 4
correctly?
Replace the A10 Main board.
No
Yes
Are signals output
from SDI 1 and SDI 2
correctly?
Replace the A10 Main board.
No
Yes
Are signals output
from CH 5 to CH 8
correctly?
Replace the A30 Analog board.
No
Yes
3
SPG600 Option 02 only
