2-20 SPG600 & SPG300 Sync Pulse Generators Service Manual
Genlock Menu
Pressing the GENLOCK button displays the Genlock menu. This menu lets you
select the genlock source, set the timing offset, and set the instrument actions when
lock is lost. Use the up (
S) or down (T) arrow button to scroll through the menu.

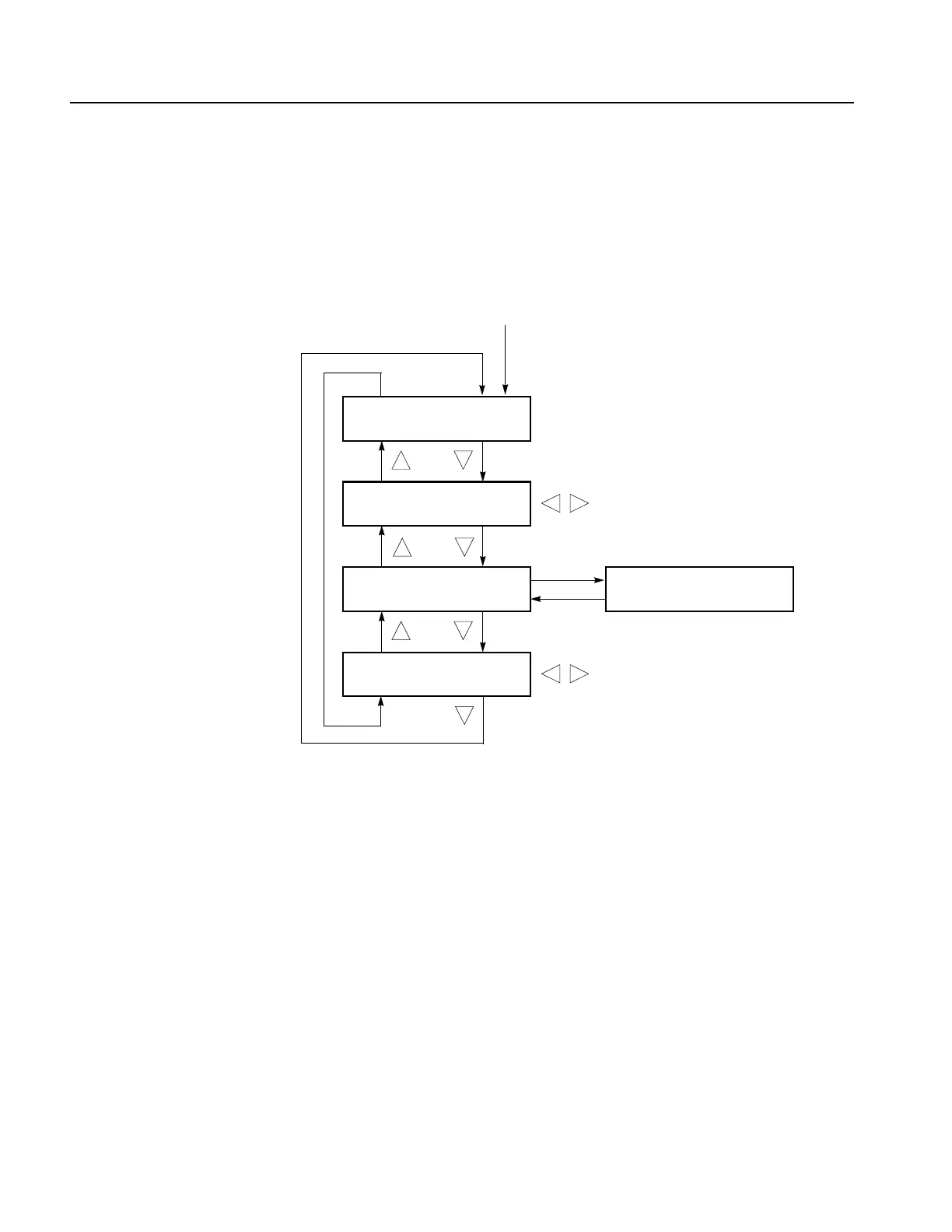

Figure 2-14 shows the Genlock menu diagram.
Figure 2-14: Genlock menu diagram
Press the Gen Lock button
Internal CW 1 MHz
525 SYNC CW 3.58 MHz
NTSC Burst CW 4.43 MHz
625 SYNC CW 5 MHz
PAL Burst CW 10 MHz
Internal Mode
Stay Mode
ENTER
CANCEL
To Genlock timing submenu
(page 2-21)
GENLOCK STATUS
Internal
GENLOCK SOURCE
 Internal ↵
GENLOCK TIMING
LOCK LOSS ACTION
 Internal Mode ↵
