Tektronix SPG600 - Figure 6-14: Front-Panel Assembly Removal (SPG300)

Removal and Installation Procedures
SPG600 & SPG300 Sync Pulse Generators Service Manual 6-25
5. Remove the A20 front-panel board: See Figure 6-14.
a. Use a screwdriver with a #2 Phillips tip to remove the two screws securing
the A20 front-panel board to the chassis.
b. Unplug the cable from the A10 Main board.
6. Reinstallation: Perform steps 3 through 5 in reverse order to reinstall the
front-panel assembly.

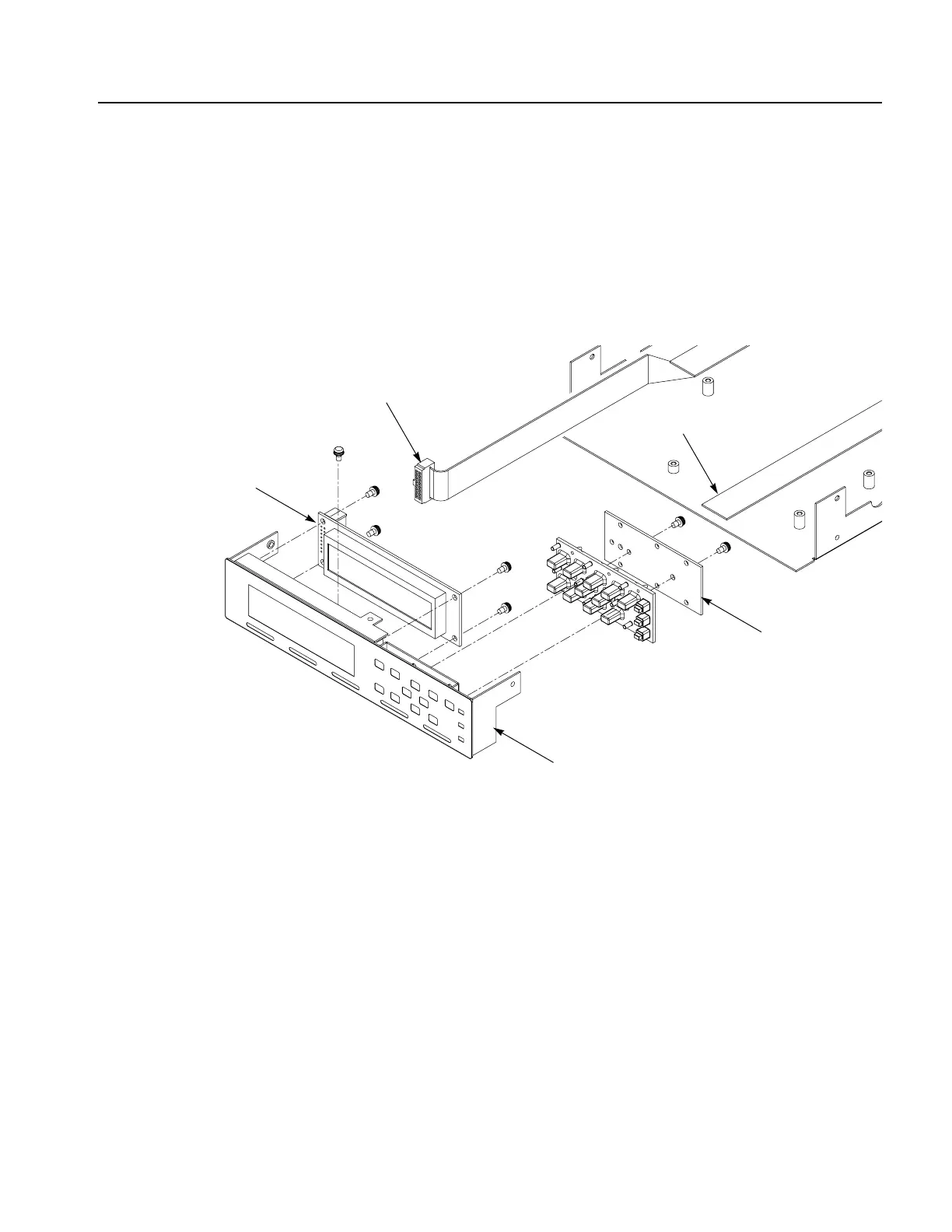

Figure 6-14: Front-panel assembly removal (SPG300)
Front chassis
From J000 on the
A50 Main board
A20 Front-panel
board
LCD module
From J010 on the
A50 Main board
