Removal and Installation Procedures
SPG600 & SPG300 Sync Pulse Generators Service Manual 6-11

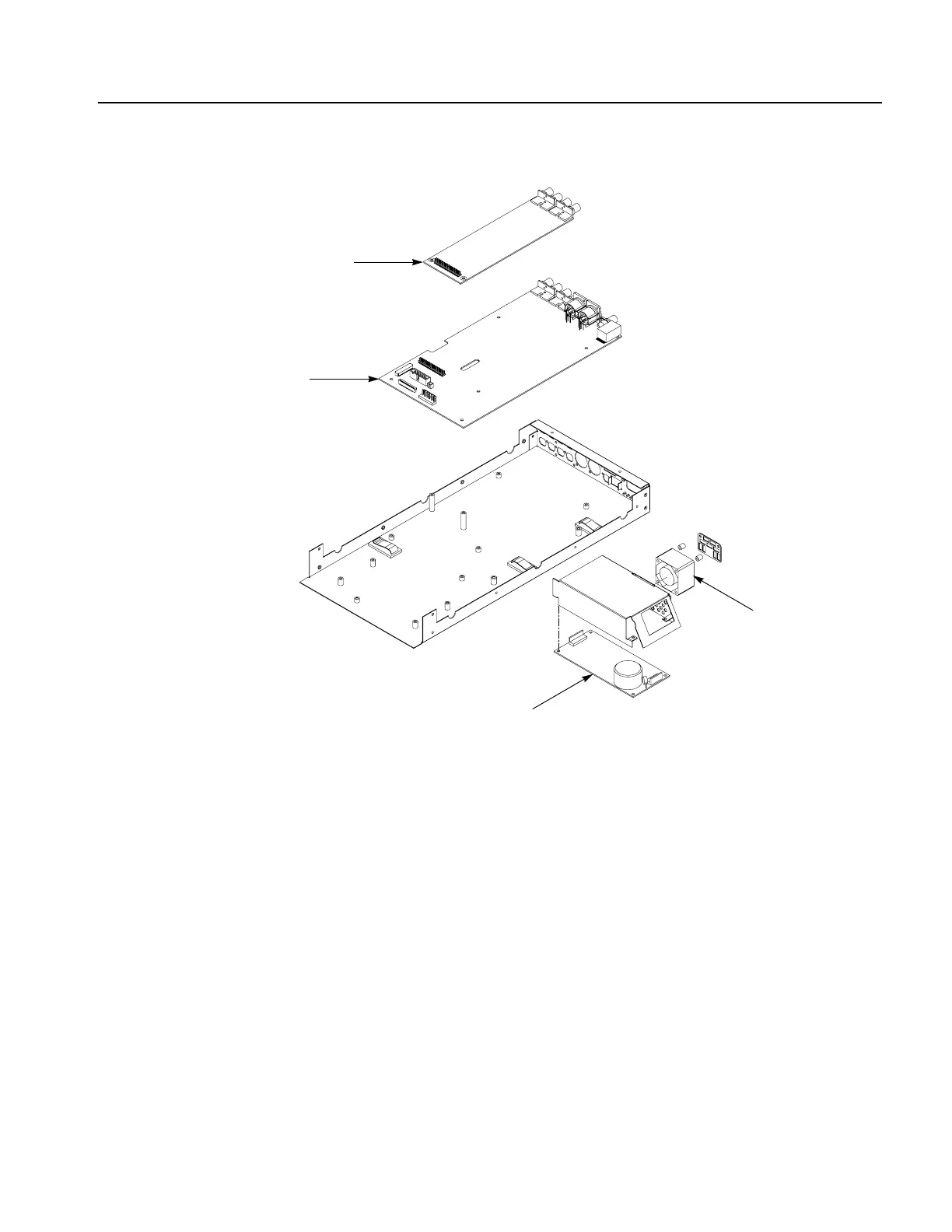

Figure 6-5: SPG300 internal modules
A50 Main board
Fan
Power supply
A60 Analog board
