Diagrams
SPG600 & SPG30
0 Sync Pulse Generators Service Manual

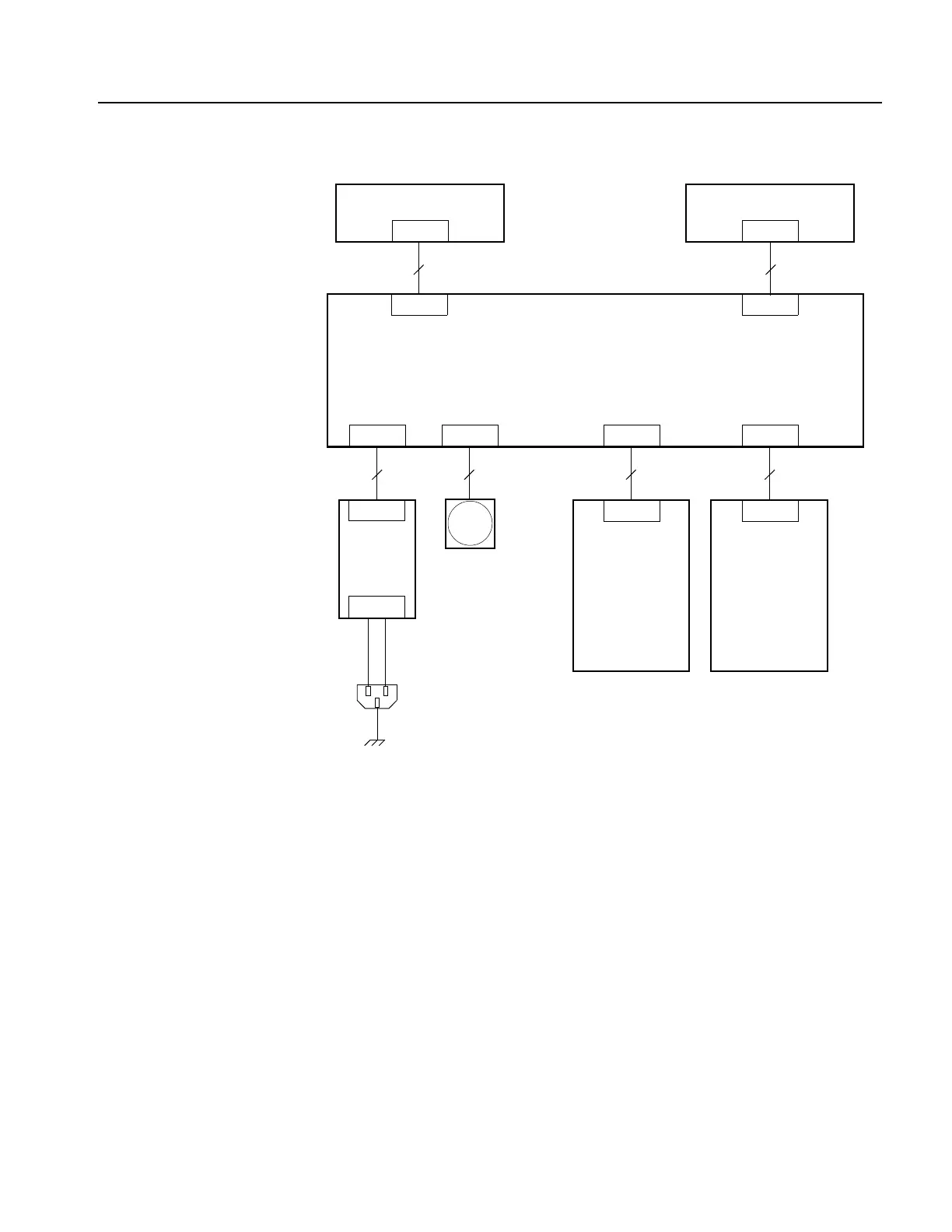

9-5
Figure
9-4:
SPG600 i
nter
connect diagram
LCD Module
A10
Main Board
A20
Front-panel Board
Power
Supply
Module
A30
Analog Bo
ard
(Option 02)
A40
SDI Board
(Option 03)
J600
J610
J900
J000
J010
J1
J1
J1
J1
CN2
Fan
J5
2
64
4
4
4
16
24
W40
W50
W30
W60
W70
CN1
W20
RFI filter
160
162
Table of Contents
Table of Contents
5
General Safety Summary
13
Service Safety Summary
15
Preface
17
About this Manual
17
Manual Conventions
18
Finding Other Information
18
Introduction
19
Performance Check Interval
19
Strategy for Servicing
19
Tektronix Service Offerings
20
Product Overview
23
Table 1-1: Output Capability of the SPG600 and the SPG300
23
Specifications
25
General Characteristics
25
Table 1-1: Reference Inputs
26
Table 1-2: Analog Outputs (Standard and Option 02)
26
Table 1-3: Serial Digital Interface (Standard and Option 03)
27
Table 1-4: AES/EBU Audio Outputs
28
Table 1-5: Analog Audio Outputs
29
Table 1-6: GPI (General Purpose Interface)
29
Table 1-7: SNMP Error Report
29
Table 1-8: AC Power Source
30
Table 1-9: Clearance
30
Table 1-10: Mechanical Characteristics
30
Figure 1-1: SPG600 Dimensions
31
Figure 1-2: SPG300 Dimensions
32
Table 1-11: Environmental Characteristics
33
Installation
37
Supplying Operating Power
37
Table 2-1: Power-Cord Conductor Identification
38
Table 2-2: Power Cord Identification
39
Operating Environment
40
Applying and Interrupting Power
40
Repackaging Instructions
41
Installed Options
41
Menus
43
Video Menu
43
Figure 2-1: Video Menu Diagram
44
Figure 2-2: Test Signal (Analog) Submenu Diagram
45
Figure 2-3: Test Signal (SDI) Submenu Diagram
46
Figure 2-4: Timing (Analog) Submenu Diagram
47
Figure 2-5: Timing (SDI) Submenu Diagram
47
Figure 2-6: Overlay Submenu Diagram
48
Figure 2-7: Logo Submenu Diagram
49
Figure 2-8: ID Text Submenu Diagram
50
Figure 2-9: SDI Parameters Submenu
51
Figure 2-10: Audio Menu Diagram
52
Figure 2-11: AES/EBU Submenu Diagram
53
Figure 2-12: Embedded Submenu Diagram
54
Figure 2-13: Audio Channel Submenu Diagram
55
Genlock Menu
56
Figure 2-14: Genlock Menu Diagram
56
Figure 2-15: Genlock Timing Submenu Diagram
57
System Menu
58
Figure 2-16: System Menu Diagram
58
Figure 2-17: Preset Submenu Diagram
59
Figure 2-18: Network Information Submenu Diagram
60
Figure 2-19: Network Setup Submenu Diagram
61
Figure 2-20: GPI Submenu Diagram
62
Figure 2-21: System Information Submenu Diagram
63
Figure 2-22: System Setup Submenu Diagram
63
Figure 2-23: Configuration Submenu Diagram
64
Theory of Operation
65
A10 Main Board (SPG600) and A50 Main Board (SPG300)
67
A20 Front-Panel Board
69
Power Supply Module
70
Performance Verification
71
Preparation for Performance Verification
73
Equipment Required
73
Table 4-1: Equipment Required for Performance Verification
73
Calibration Data Report
74
Table 4-2: SPG600 and SPG300 Calibration Data Report
74
Performance Verification Procedures
76
Figure 4-1: Equipment Connection for Verifying Subcarrier Frequency
76
Figure 4-2: Equipment Connections for Verifying the Genlock Function
78
Figure 4-3: Equipment Connection for Verifying the Blanking Level
81
Figure 4-4: Equipment Connection for Verifying the Serial Digital
84
Outputs
84
Figure 4-5: Initial Equipment Connection for Verifying the Serial
88
Digital Audio Outputs
89
Audio Outputs
91
Audio Outputs
92
Output
94
Adjustment Procedure
97
Requirement for Adjustment
97
Equipment Required
97
Table 5-1: Equipment Required
97
Master Clock Frequency Adjustment
98
Figure 5-1: Equipment Connection for Adjusting Master Clock
98
Maintenance
101
Related Maintenance Procedures
103
Preparation
104
Inspection and Cleaning
104
Table 6-1: External Inspection Check List
105
Table 6-2: Internal Inspection Check List
106
Removal and Installation Procedures
107
Preparation
107
Table 6-1: Summary of Procedures
108
Figure 6-1: Instrument Orientation (SPG600)
109
Table 6-2: Tools Required for Module Removal
109
Figure 6-2: SPG600 External Modules
110
Figure 6-3: SPG600 Internal Modules
111
Figure 6-4: SPG300 External Modules
112
Figure 6-5: SPG300 Internal Modules
113
Removal and Installation Procedures Access Procedure
114
Default Chapter
114
Access Procedure
114
Figure 6-6: Guide to Removal Procedures
114
Procedures for SPG600 External Modules
115
Top Cover
115
Figure 6-7: Top Cover Removal (SPG600)
116
Front-Panel Assembly
117
Figure 6-8: Front-Panel Assembly Removal (SPG600)
118
RFI Filter
118
Procedure for SPG600 Internal Modules
119
A30 Analog Board (Option 02)
119
A40 SDI Board (Option 03)
120
Figure 6-9: A30 Analog Board Removal
120
Figure 6-10: A40 SDI Board Removal
121
A10 Main Board
122
Figure 6-11: A10 Main Board Removal
123
Power Supply Module
123
Figure 6-12: Power Supply Module Removal (SPG600)
124
Procedures for SPG300 External Modules
125
Top Cover
125
Figure 6-13: Top Cover Removal (SPG300)
126
Front-Panel Assembly
126
Figure 6-14: Front-Panel Assembly Removal (SPG300)
127
RFI Filter
128
GPI Connector
128
Procedures for SPG300 Internal Modules
129
A60 Analog Board
129
Figure 6-15: A60 Analog Board Removal
130
A50 Main Board
130
Figure 6-16: A50 Main Board Removal
131
Power Supply Module
132
Figure 6-17: Power Supply Module Removal (SPG300)
133
Setting Main Board Parameters after Replacement
135
Setting the Instrument Serial Number
135
Installing the Option Key (Option 01 Only)
136
Setting the Date and Time
136
Troubleshooting
139
Figure 6-1: Troubleshooting Procedure (1)
140
Figure 6-2: Troubleshooting Procedure (2)
141
Figure 6-3: Troubleshooting Procedure (3)
142
Figure 6-4: Troubleshooting Procedure (4)
143
Figure 6-5: A10 Main Board View of SPG600
144
Figure 6-6: A10 Main Board View of SPG300
145
Options
147
Additional Features
149
Service Options
149
Electrical Parts List
151
Diagrams
155
Figure 9-1: SPG600 Block Diagram
158
Figure 9-2: SPG300 Block Diagram
159
Figure 9-3: Main Function Block Diagram
160
Figure 9-4: SPG600 Interconnect Diagram
161
Figure 9-5: SPG300 Interconnect Diagram
162
Mechanical Parts List
165
Using the Replaceable Parts List
166
Figure 10-1: SPG600 External Modules
169
Figure 10-2: SPG600 Internal Modules
171
Figure 10-3: SPG300 External Modules
173
Table: Replaceable Parts List (SPG300)
174
Figure 10-4: SPG300 Internal Modules
175
