Tektronix SPG600 Service Manual

Menus
SPG600 & SPG300 Sync Pulse Generators Service Manual 2-15
SDI Parameters Submenu
This menu allows you to select which component(s) of the serial digital signal is
(are) available, the serial digital signal resolution, and the insertion of the EDH
(Error Detection and Handling) bits. Use the up (
S) or down (T) arrow button to
scroll through the menu. Figure 2-9 shows the SDI parameters submenu diagram.

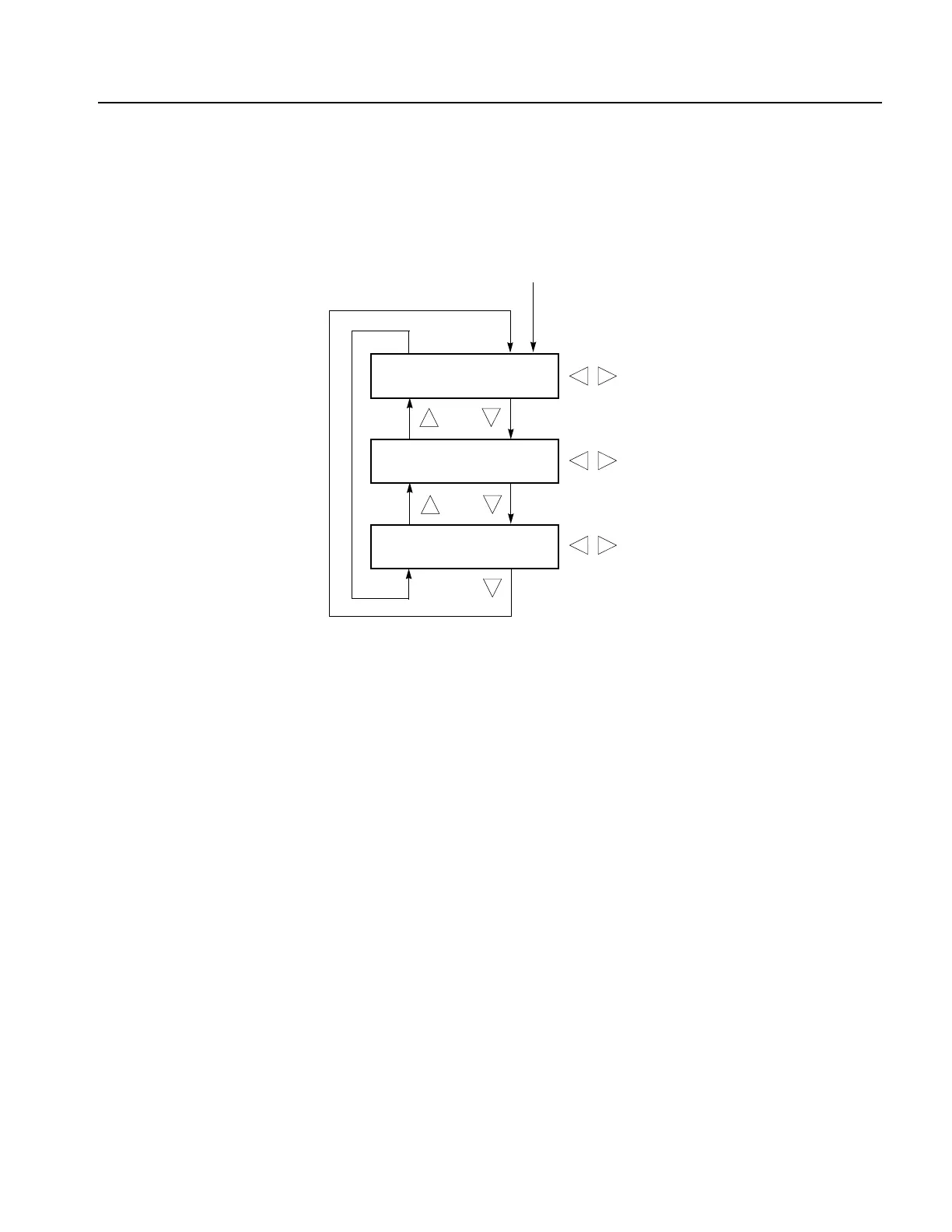

Figure 2-9: SDI parameters submenu
Select PARAMETER in the VIDEO menu
10-bit
8-bit
Disable
Enable
: SDI (STD) COMPONENT
 Y, Cb, Cr ↵
: SDI (STD) PRECISION
 10-bit ↵
: SDI (STD) EDH
 Enable ↵
Y,Cb,Cr Cb,Cr
YY,Cb
Cb Y,Cr
Cr
