SPG600 & SPG300 Sync Pulse Generators Service Manual 2-21
Genlock Timing Submenu
This menu allows you to adjust the timing offset of the input signal relative to the
internal reference signal (frame reset signal). Use the up (
S) or down (T) arrow
button to scroll through the menu. Figure 2-15 shows the Genlock timing submenu
diagram.

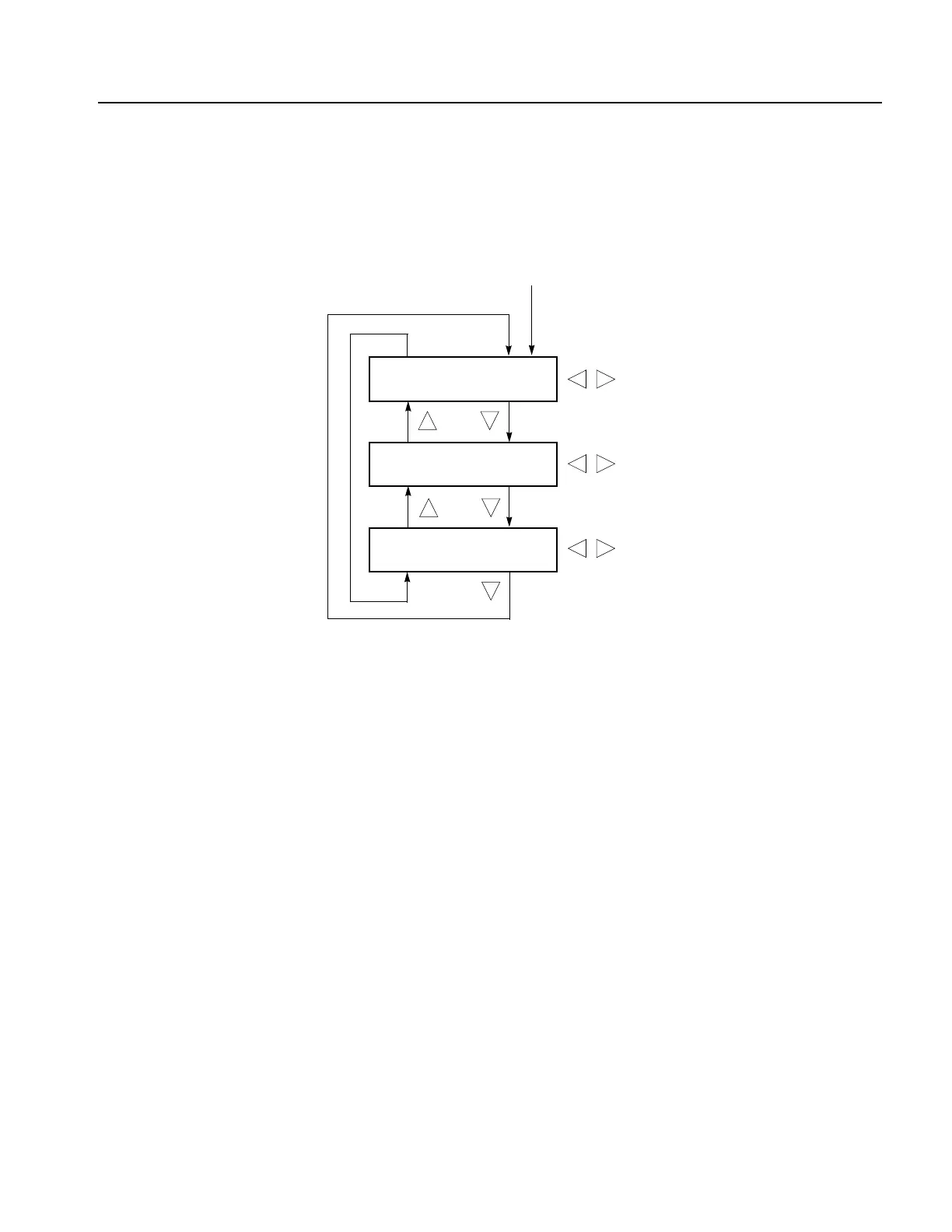

Figure 2-15: Genlock timing submenu diagram
Set the vertical timing in 1 line steps
Set the horizontal timing in 1 clock steps
Set the horizontal timing in 0.1 ns steps
TIMING : VERTICAL
0 Line (s)
TIMING : HORIZONTAL
0.0000
µs
TIMING : FINE
0.0 nsec
Select GENLOCK TIMING in the Genlock menu
