Removal and Installation Procedures
6-16 SPG600 & SPG300 Sync Pulse Generators Service Manual

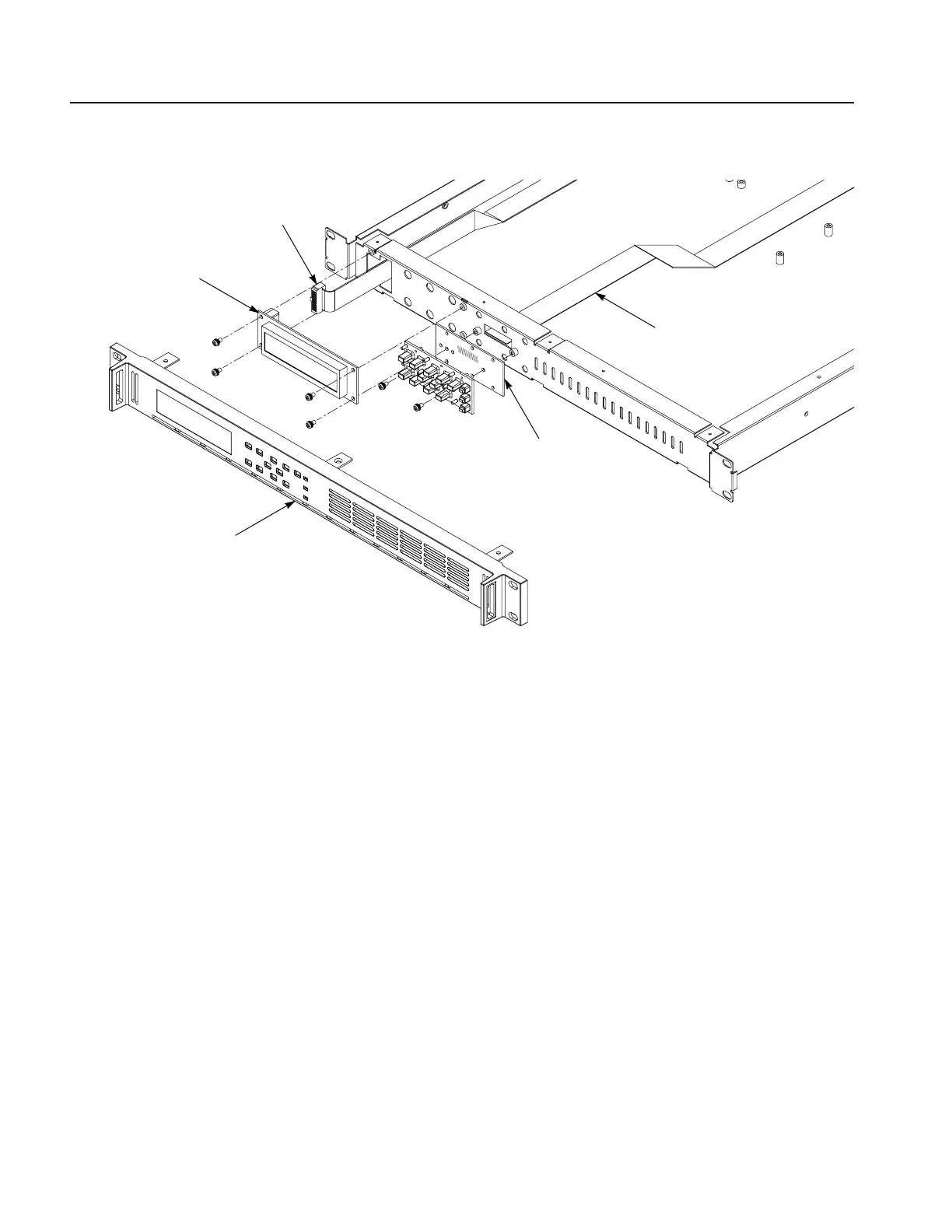

Figure 6-8: Front-panel assembly removal (SPG600)
RFI Filter
1. Locate module to be removed: Locate the RFI filter in the locator diagram
SPG600 External modules, Figure 6-2, on page 6-8.
2. Remove the RFI filter:
a. Unplug the cable from the A10 Main board.
b. Use a screwdriver with a #2 Phillips tip to remove the screw securing the
ground lead to the chassis.
c. Use a screwdriver with a #2 Phillips tip to remove the two screws securing
the RFI filter to the chassis.
d. Pull out the RFI filter from the chassis.
3. Reinstallation: Perform step 2 in reverse order to reinstall the RFI filter.
Front cover
From J000 on the
A10 Main board
A20 Front-panel
board
LCD module
From J010 on the
A10 Main board
To Next Page
