Tektronix SPG600 Service Manual

Menus
2-16 SPG600 & SPG300 Sync Pulse Generators Service Manual
Audio Menu
Pressing the AUDIO button displays the Audio menu. This menu lets you set the
parameters of the AES/EBU audio and embedded audio in the serial digital signal.
Use the up (
S) or down (T) arrow button to scroll through the menu. Figure 2-10
shows the Audio menu.

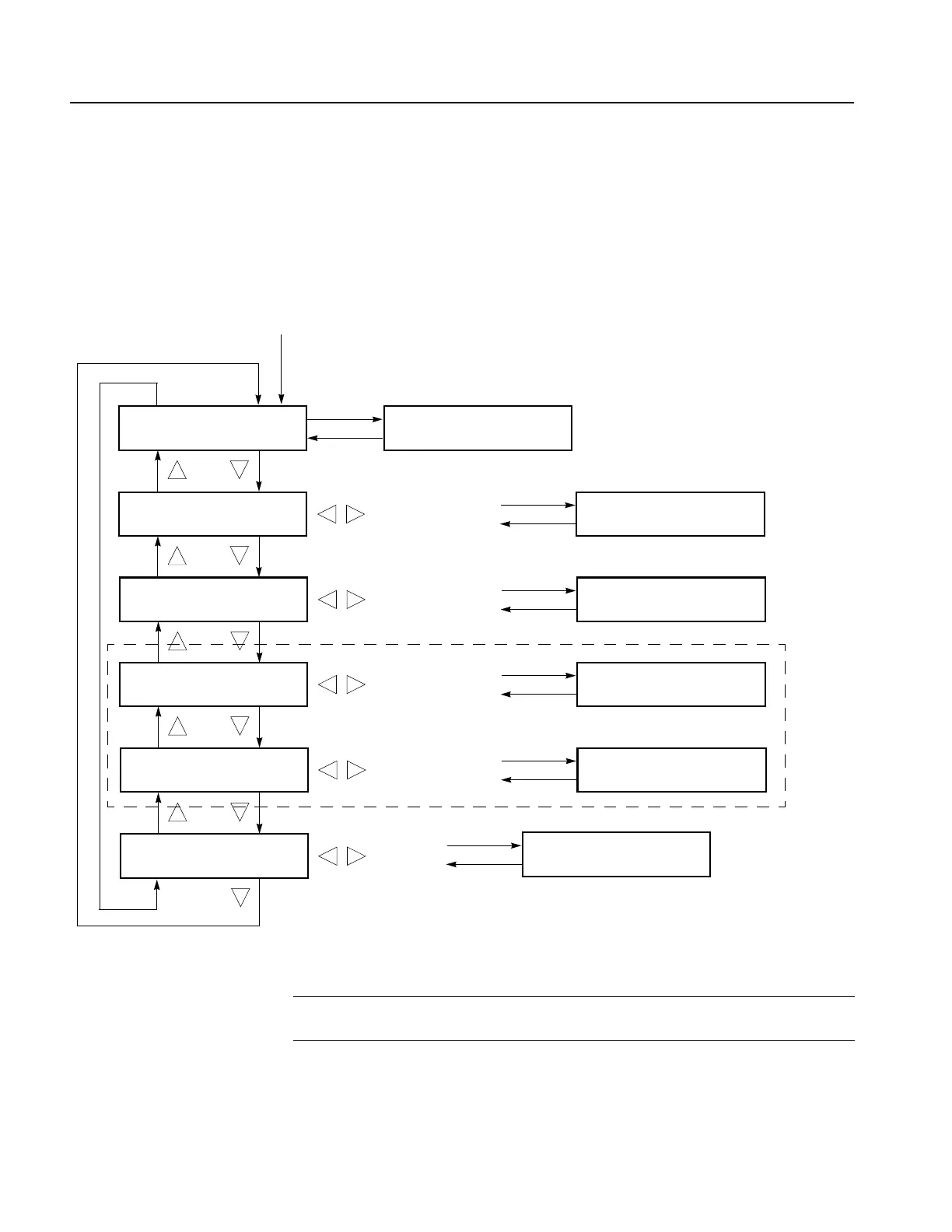

Figure 2-10: Audio menu diagram
NOTE. The ANALOG menu item is only available when you select Analog Audio in
the CONFIGRATION: XLR OUTPUT menu.
Press the AUDIO button
ENTER
CANCEL
To Embedded submenu
(page 2-18)
EMBEDDED (STD/BLK)
Group 1
AES/EBU
ENTER
CANCEL
To AES/EBU submenu
(page 2-17
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 2-18)
EMBEDDED (STD/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 2-18)
EMBEDDED (OPT/BLK)
Group 1
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 2-18)
EMBEDDED (OPT/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
SPG600 Option 03 only
ANALOG
Left
Left
Right
Both
ENTER
CANCEL
To Audio channel submenu
(page 2-19)
