Tektronix SPG600 Service Manual

Menus
2-10 SPG600 & SPG300 Sync Pulse Generators Service Manual
Test Signal (SDI) Submenu
This menu allows you to select a serial digital test signal for the SDI 2 output(s).
Use the up (
S) or down (T) arrow button to scroll through the menu. Figure 2-3
shows the Test signal (SDI) submenu diagram. Use the left (
W) or right (X) arrow
button to select a signal.

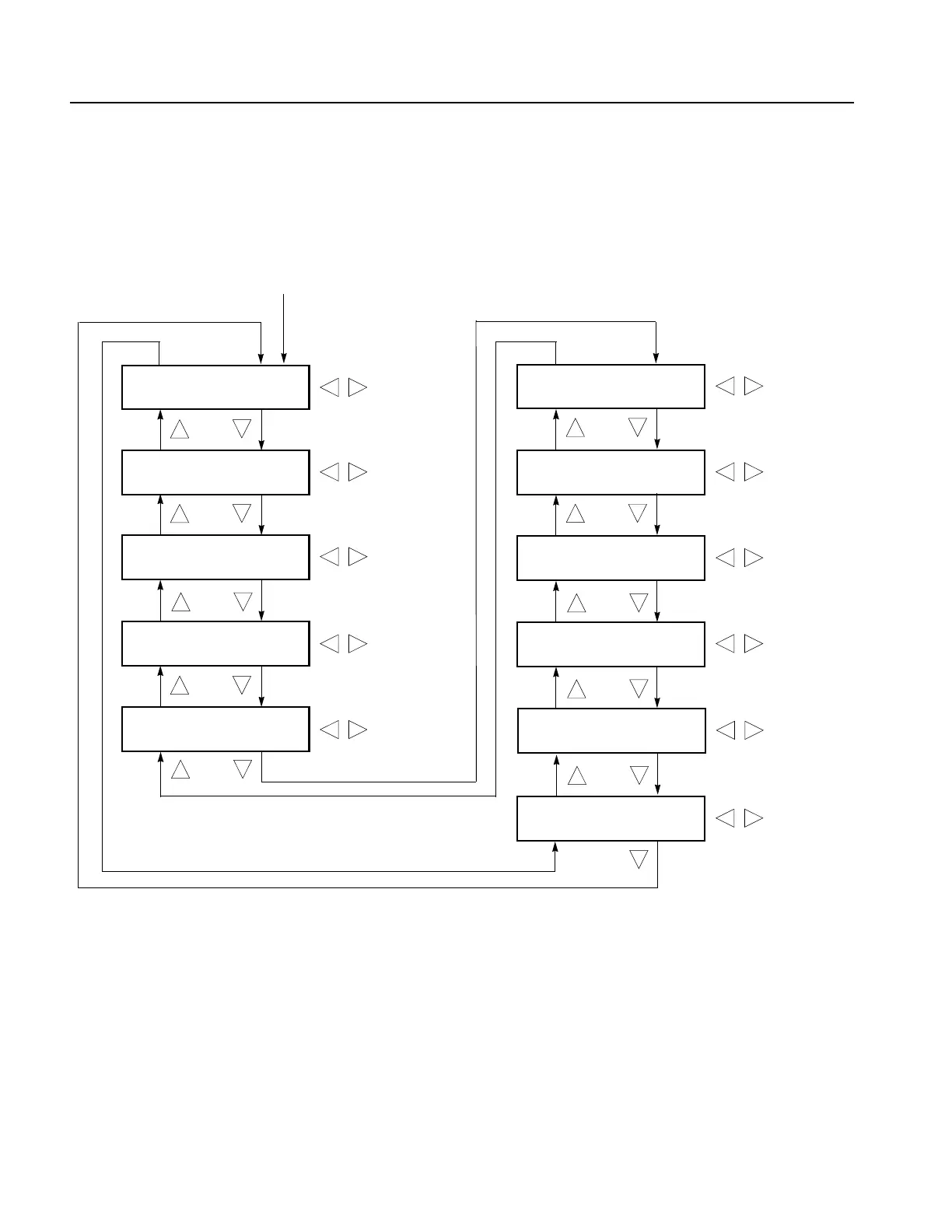

Figure 2-3: Test signal (SDI) submenu diagram
Select TEST SIGNAL (SDI) in the Video menu
Select a signal
TIMING
2.5 MHz Bowtie
REC 801
100% Color Bars
SDI
Checkfield
MULTI BURST
60% Y Multiburst
MONITOR
2 Pedestal & Pluge
LINEARITY
10 Step
FLAT FIELD
0 % Flat Field
COLOR BAR
SMPTE Color Bars
Select a signal
Select a signal
PULSE BAR
2T Pulse & Bar
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
SWEEP
100% Sweep
Select a signal
OTHER
Chroma Freq. Resp.
Select a signal
