Removal and Installation Procedures
SPG600 & SPG300 Sync Pulse Generators Service Manual 6-19
c. Use a screwdriver with #2 Phillips tip to remove the two screws securing
the A40 SDI board to the bottom of the chassis.
d. Lift the board up and away from the chassis to complete the removal.
4. Reinstallation: Perform step 3 in reverse order to reinstall the A40 SDI board.

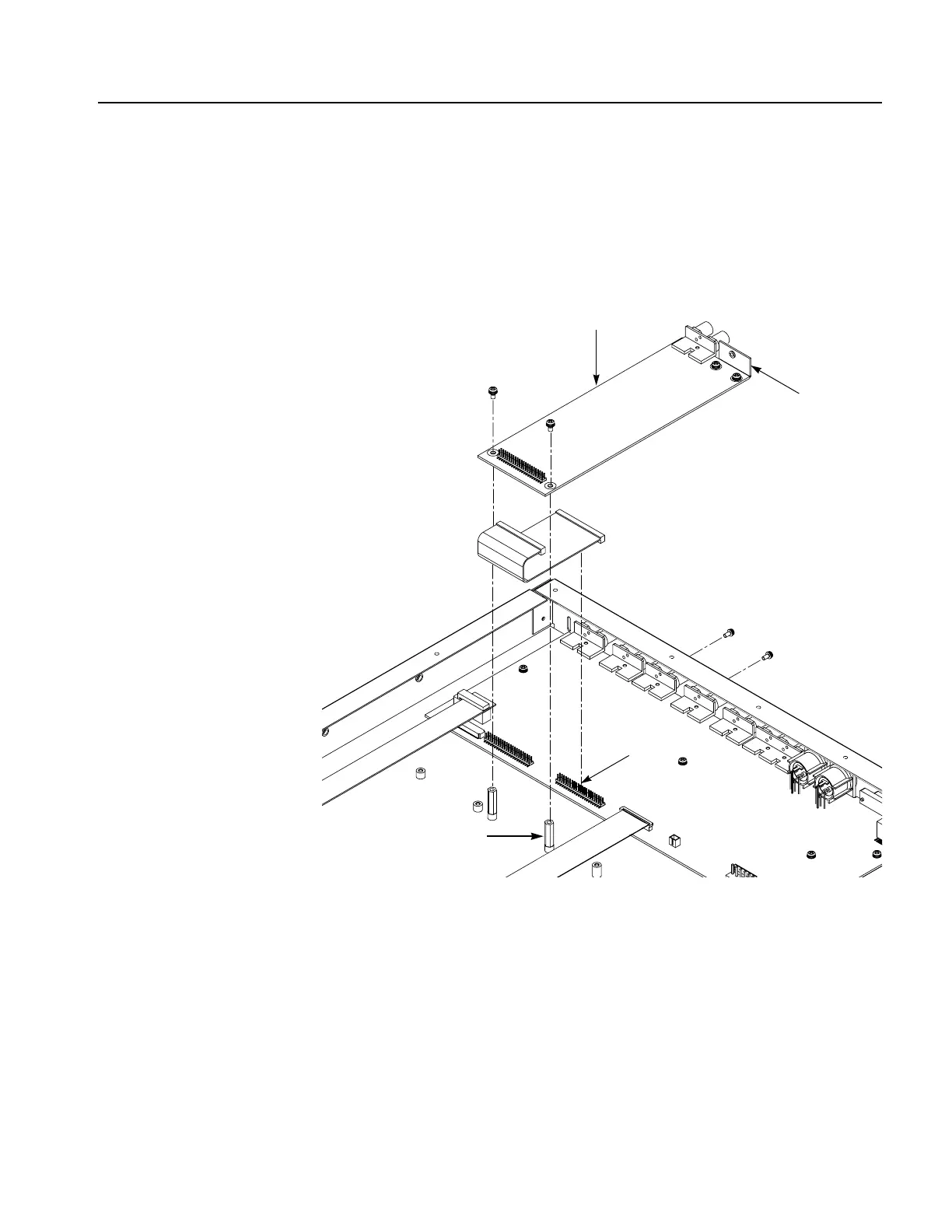

Figure 6-10: A40 SDI board removal
Spacer post
A40 SDI board
J610
A10 Main board
Bracket
