2-22 SPG600 & SPG300 Sync Pulse Generators Service Manual
System Menu
Pressing the SYSTEM button displays the System menu. This menu lets you set the
system-related settings such as network parameters and output configuration. Use
the up (
S) or down (T) arrow button to scroll through the menu. Figure 2-16
shows the System menu diagram.

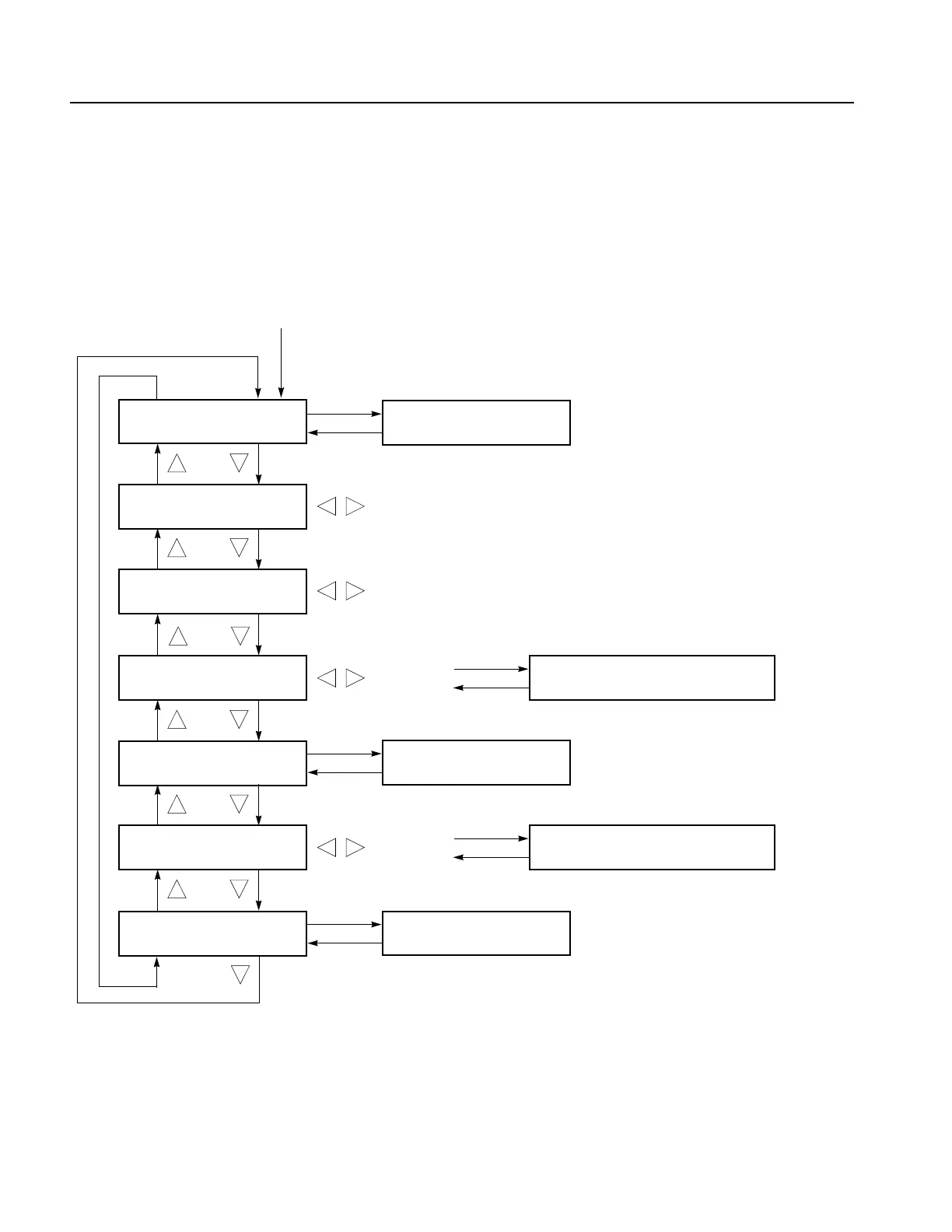

Figure 2-16: System menu diagram
Press the SYSTEM button
ENTER
CANCEL
To Network information submenu (page 2-24)
To Network setup submenu (page 2-25)
ENTER
CANCEL
To Preset submenu
(page 2-23)
Off 10 Minute
Immediately 30 Minute
1 Minute 1 Hour
Adjust the display contrast
ENTER
CANCEL
To GPI submenu
(page 2-26)
ENTER
CANCEL
To Configuration submenu
(page 2-28)
Information
Setup
CONFIGURATION
GPI
NETWORK
Information
LCD CONTRAST
Low << 17 >> HIGH
PRESET
ENTER
CANCEL
To System information submenu (page 2-27)
To System setup submenu (page 2-27)
Information
Setup
SYSTEM PARAMETER
Information
FRONT PANEL DISABLE
 Time Out: OFF ↵
