SPG600 & SPG300 Sync Pulse Generators Service Manual 2-25
Network Setup Submenu
This menu allows you to set the sync pulse generator network parameters when
connecting to a 100BASE-T Ethernet. Use the up (
S) or down (T) arrow button
to scroll through the menu items. Figure 2-19 shows the Network setup submenu
diagram.

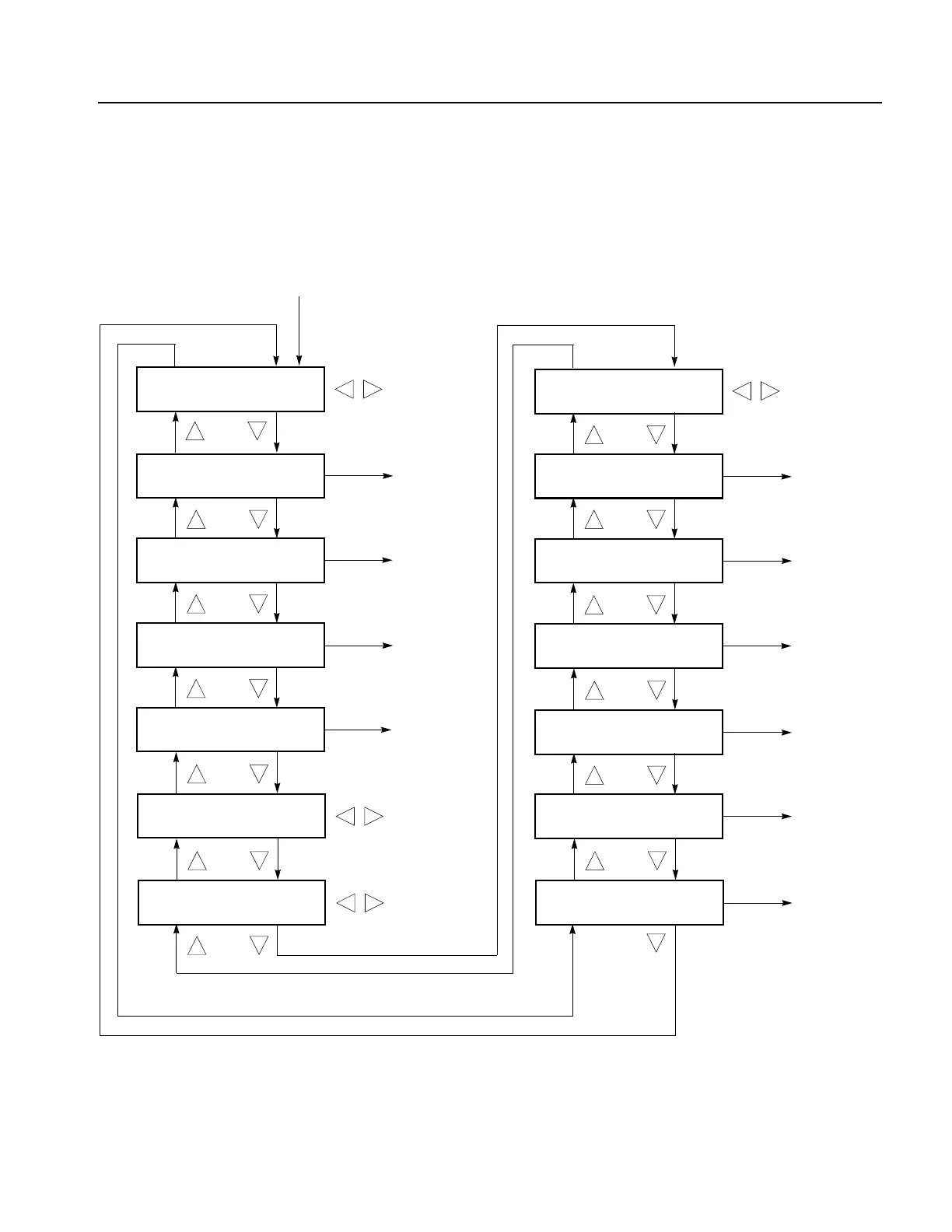

Figure 2-19: Network setup submenu diagram
Select Setup in the NETWORK menu item
Disable
Enable
Set the address
Set the address
: DHCP
 Disable ↵
: IP ADDRESS
000.000.000.000
: GATEWAY ADDR
000.000.000.000
Set the address
: SUBNET MASK
000.000.000.000
Set the address
: BRDCAST ADDR
000.000.000.000
ENTER
ENTER
ENTER
ENTER
Disable
Enable
: WEB INTERFACE
 Disable ↵
: SNMP TRAPS
 Disable ↵
: SNMP TRAP DEST-3
000.000.000.000
: SNMP TRAP DEST-1
000.000.000.000
: SNMP TRAP DEST-2
000.000.000.000
: SNMP TRAP DEST-4
000.000.000.000
Disable
Enable
Set the address
ENTER
Set the address
ENTER
Set the address
ENTER
Set the address
ENTER
Disable
Enable
: SNMP MODE
 Disable ↵
: SNMP SET COMMUNITY
private
: SNMP GET COMMUNITY
public
Set the string
ENTER
Set the string
ENTER
