Application Examples
108 TDS5000B Series Quick Start User Manual

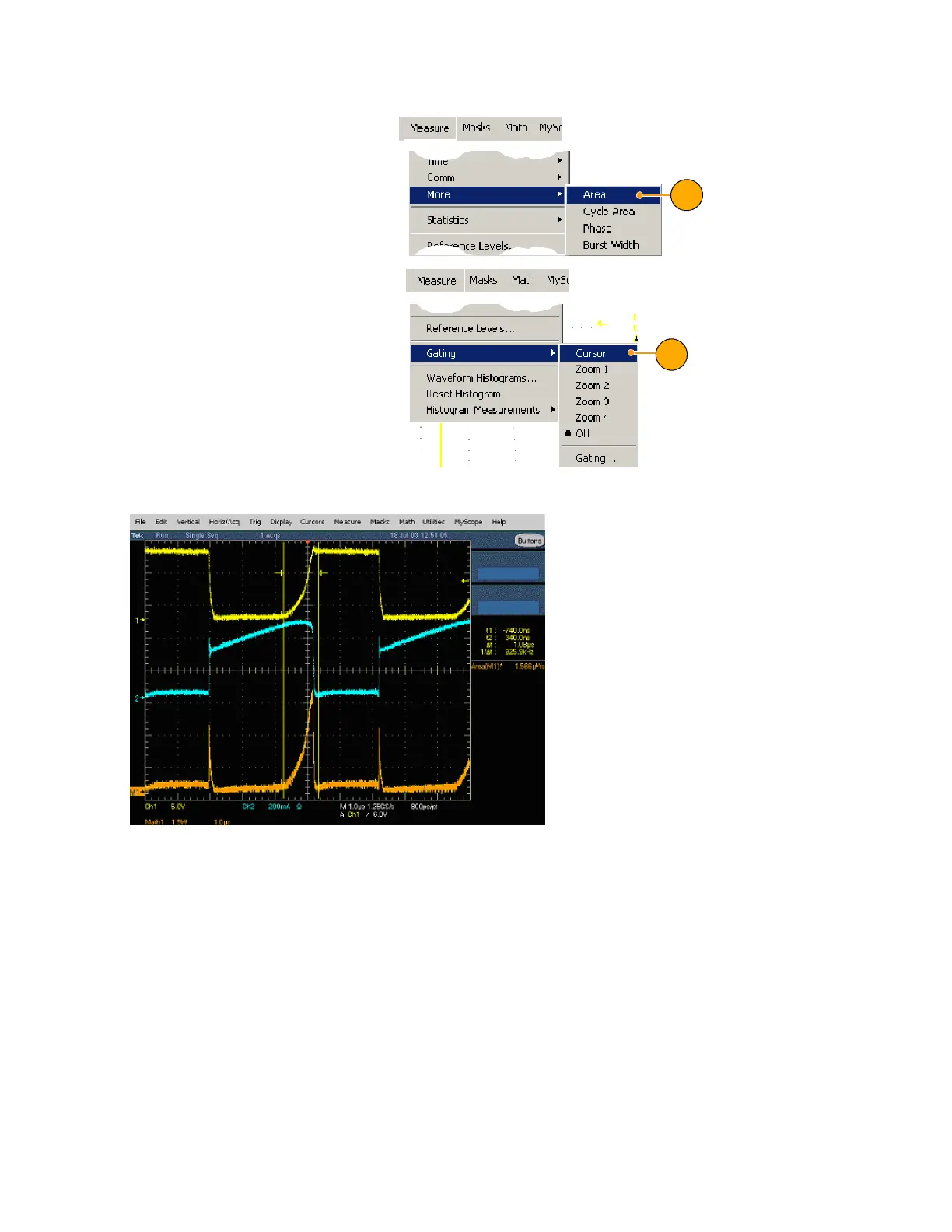

11. Select Measure > More > Area to
measure power.
11
12. To measure loss on a specific
transition, select Measure > Gat-
ing>Cursor, and then position
the cursors around the trans ition
of interest as shown in the follow-
ing illustration.
12
Quick Tips
H Tektronix offers a sophisticated power loss analysis package called TDSPWR3 that automates this and
many other power measurements. Contact your local Tektronix representative for details.
