CUTTING UNIT
4157082 First Edition 8-17
8
Repair
Grass Shield
Removal and Installation

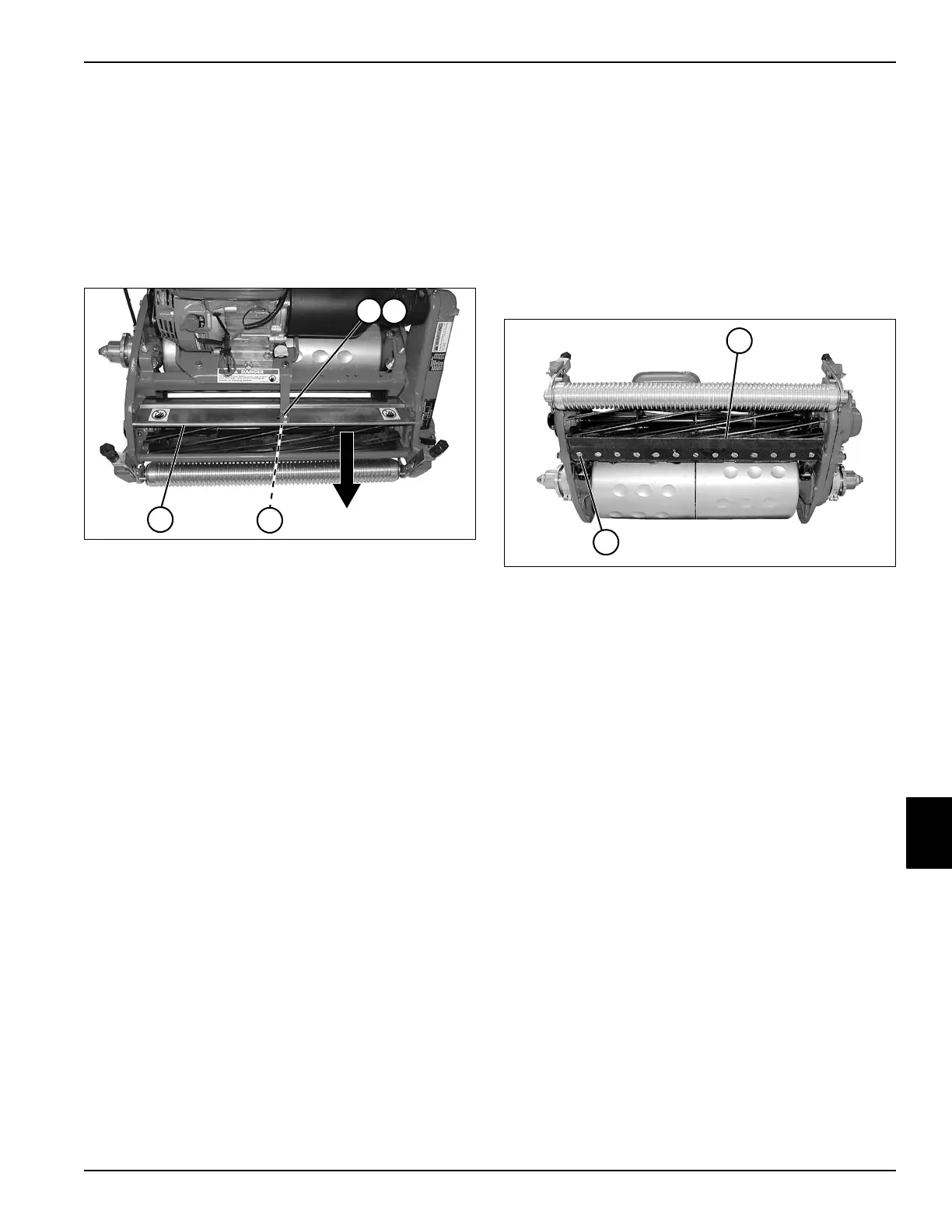

See Figure 8-10.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 8-10
2. Remove nut (1), lock washer (2), and screw (3).
3. Pull grass shield (4) forward.
Installation Note
Install the grass shield by reversing the order of removal.
Bedknife
Removal and Installation
See Figure 8-11.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Tip mower back on traction drum or tires. Do not
leave the mower tipped back for an extended length
of time or oil may migrate into the combustion
chamber.
Figure 8-11
3. Remove 13 flat-head screws (2) and remove the
bedknife (1).
Installation Note
Bedknife is installed by reversing order of removal.
3
TN0048
4
1
2
1
TN0035
2
