Textron Jacobsen InCommand PGM 22 - Adjustments; Repair; Handle Cover

6-2 4157082 First Edition
HANDLE AND CONTROLS
6
Adjustments
Handle Height Adjustment
See Figure 6-1.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

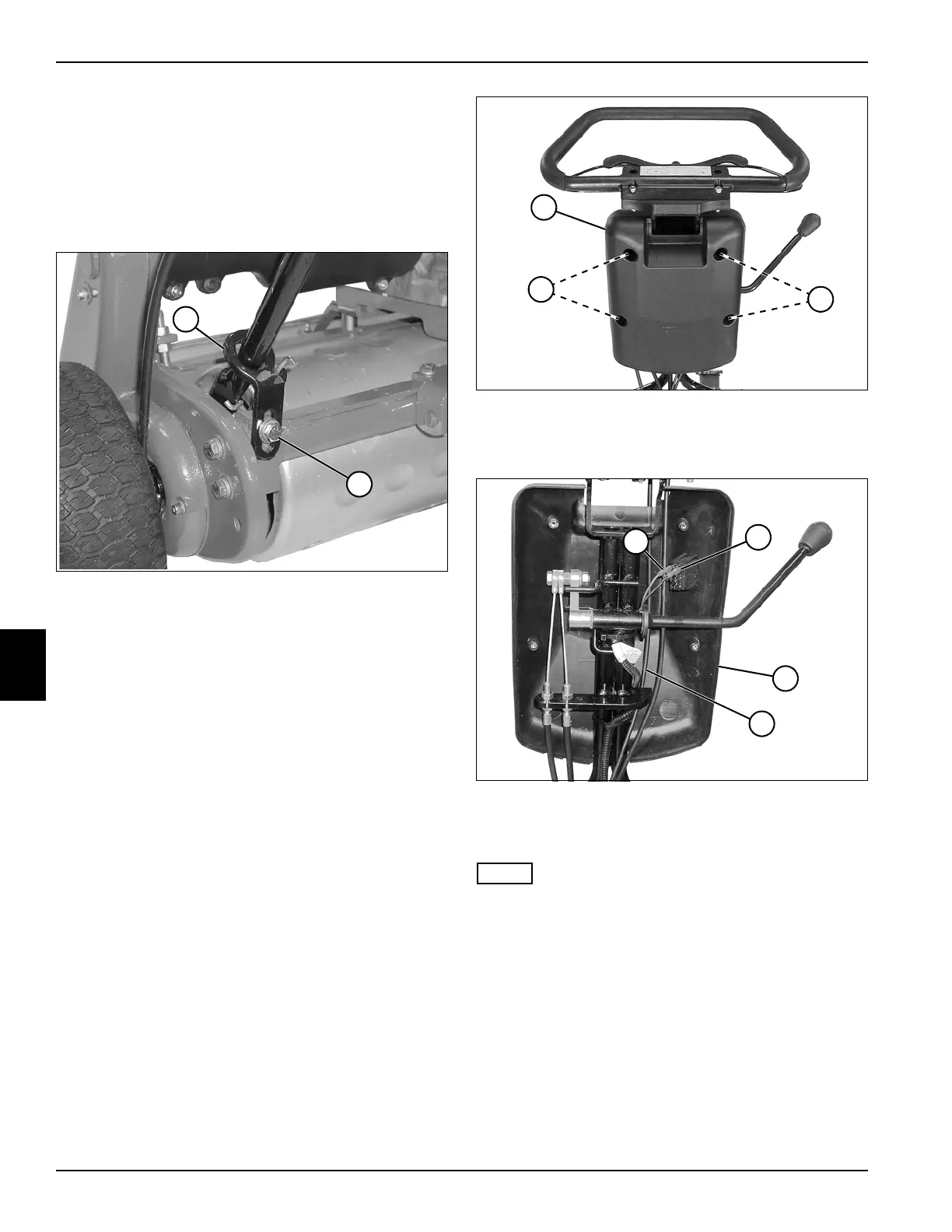

Figure 6-1
2. Loosen screws (2) on both sides of mower and adjust
handle stops (1) until desired handle height is
obtained.
3. Tighten screws (2).
Repair
Handle Cover
Removal
See Figures 6-2 and 6-3.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 6-2
2. Remove four socket-head screws (2) and remove
rear half of cover (1).
Figure 6-3
3. Remove throttle cable (6). (See “Throttle Cable” on
page 3-5.)
NOTE
Record location of wires before disconnecting.
4. Disconnect E-stop switch wires (3 and 4) and remove
front half of cover (5).
2
TN0023
1
2
TN0024
1
2
6
TN0025
4
3
5
