Textron Jacobsen InCommand PGM 22 - Drive Assembly

10-18 4157082 First Edition
ACCESSORIES
10
Drive Assembly
Removal

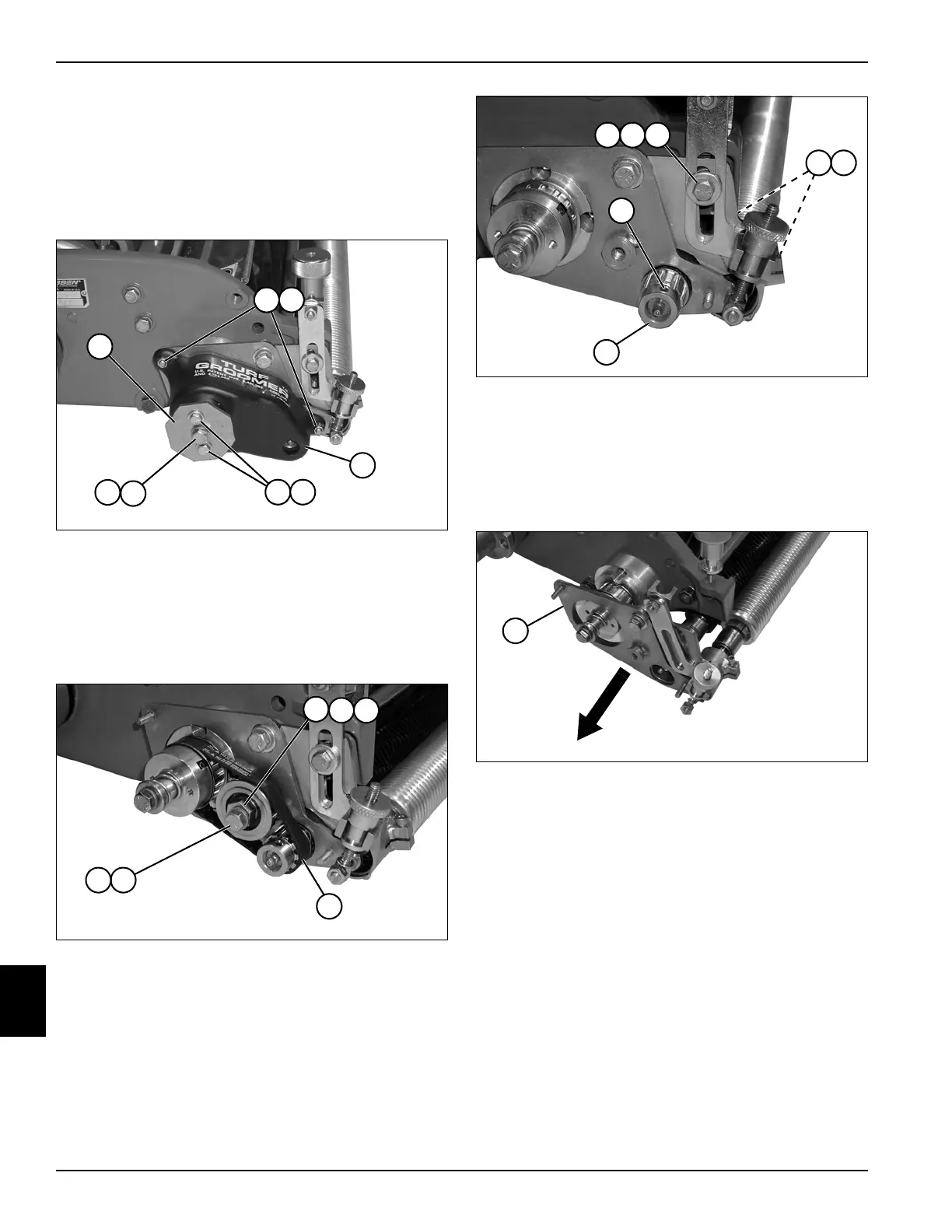

See Figures 10-31 through 10-34.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 10-31
2. Remove hex head screws (5) and lock washers (6).
3. Remove hex head screw (7), lock washer (8), and
clutch control knob (1).
4. Remove lock nuts (2), flat washers (3), and belt cover
(4).
Figure 10-32
5. Remove hex head screw (9) and lock washer (10).
6. Remove eccentric adjuster nut (11), idler pulley (12),
and spacer (13).
7. Remove drive belt (14).
Figure 10-33
8. Remove set screw (21) and drive pulley (20).
9. Loosen groomer shaft set screw (18) and roller shaft
set screw (19).
10. Remove hex head screw (15), spacer (16), and lock
nut (17).
Figure 10-34
11. Remove drive assembly (22) from machine.
TN0311
5
8
1
3
4
6
7
2
TN0333
109
12
11
13
14
15
TN0334
21
20
18 19
16 17
TN0335
22
