Right-Side Gear Drive—Disassembly
and Assembly

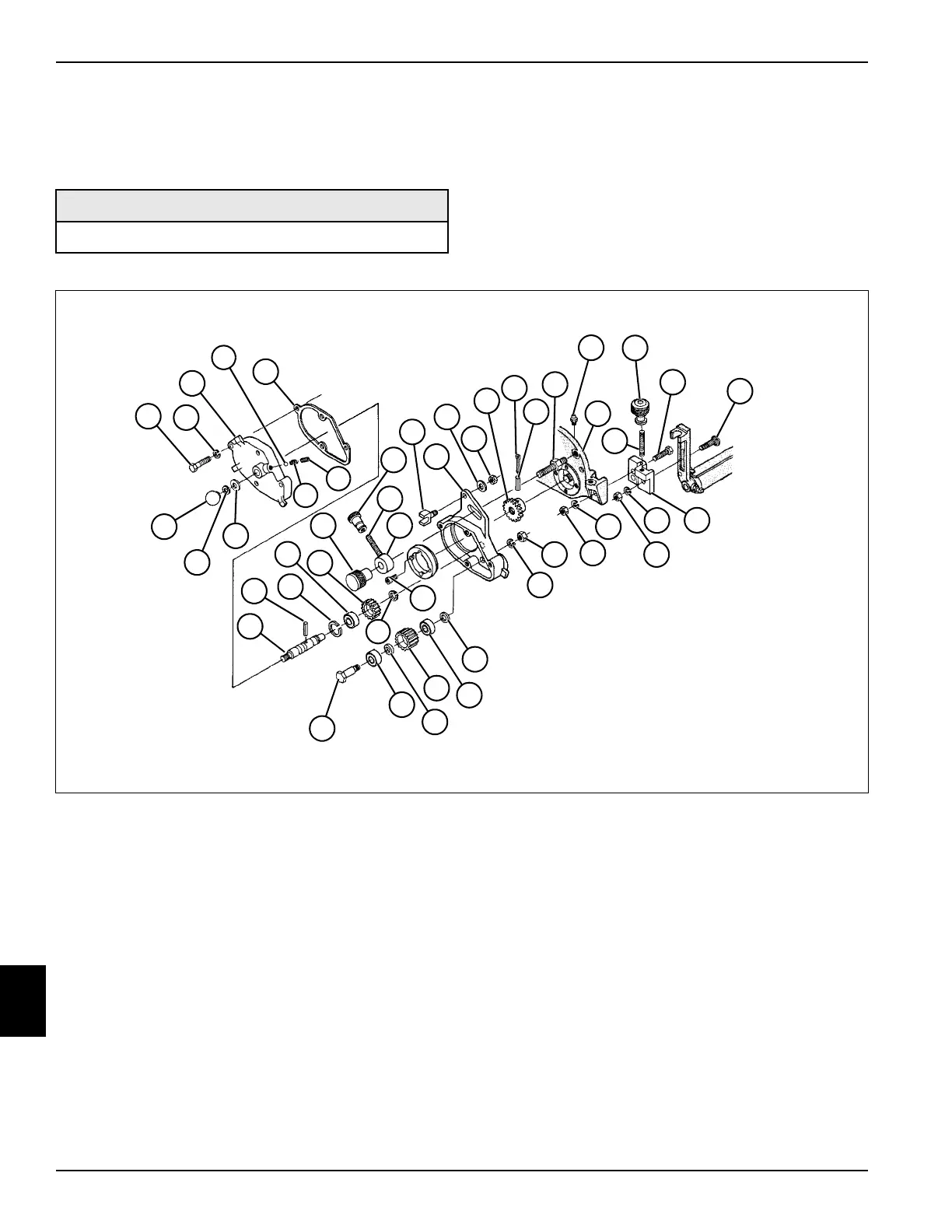

See Figure 10-55.
Figure 10-55
Assembly Notes
• Apply Sunray DX-671 or Gulf Supreme #0 grease
around gears and bearings, then fill gear box
approximately 1/3 full before installing cover.
• Install new gear box gasket (6) during assembly.
• Apply lithium grease NLGI Grade 2 to the channel of
roller bracket extension (36) before installing roller.
• Apply lithium grease NLGI Grade 2 to studs (20 and
32) before installing adjusters.
• Apply lithium grease NLGI Grade 2 to grease fitting
(30) after assembly.
Required Materials
Sunray DX-671or Gulf Supreme #0 Grease
TN0345
3
2
4
6
11
12
13
14
15
18
17
16
19
20
21
22
23
24
25
26
27
28
29
5
8
7
1
10
9
30
31
33
32
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1Knob
2 5/16-18 x1-3/4” Hex Bolt
3 5/16” Lock Washer
4Gear Box Cover
5Ball
6Gear Box Gasket
7Set Screw
8Spring
9 3/8” Flat Washer
10 3/8” Lock Washer
11 Shifter Shaft
12 3/16 x 1-1/4” Roll Pin
13 Internal Retaining Ring
14 Bearing
15 19-Tooth Shifter Gear
16 External Retaining Ring
17 Locking Nut
18 1/4-20 x5/8” Socket-Head Screw
19 Spacer
20 Stud
21 Height Adjusting Nut
22 Adjuster Pivot Bracket
23 Gear Box Housing
24 5/16” Flat Washer
25 5/16-18 Hex Nut
26 24 Tooth Drive Gear
27 3/32 x 1-3/4” Cotter Pin
28 3/16 x 1-1/4” Roll Pin
29 Right-Side Locking Stud
30 Grease Fitting
31 Right-Side Frame
32 Stud
33 Roller Adjuster
34 5/16-18 x 1-1/2” Hex Bolt
35 5/16-18 x 1-1/2” Carriage Bolt
36 Right-Side Roller Bracket
Extension
37 5/16” Lock Washer
38 5/16-18 Hex Nut
39 5/16” Lock Washer
40 5/16-18 Hex Nut
41 3/8-16 Hex Nut
42 3/8” Lock Washer
43 Washer
44 Bearing
45 18-Tooth Idler Gear
46 Spacer
47 Bearing
48 Shoulder Bolt
