Soft-Touch Brush—Disassembly and
Assembly

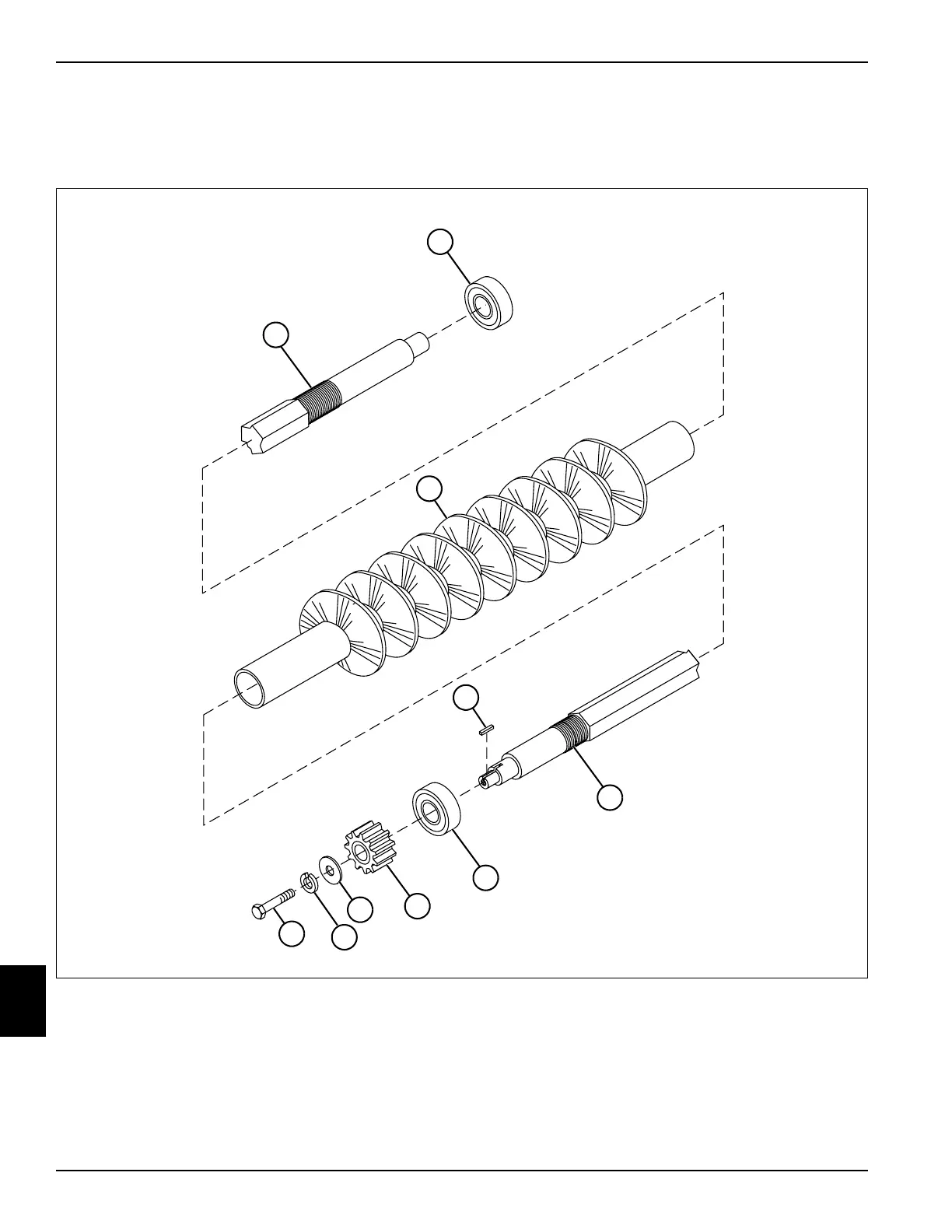

See Figure 10-65.
Figure 10-65
Disassembly Note
• Use a knife-edge puller to remove bearing (2) from
shaft (1).
Assembly Note
• Bearing (2) is press fit. Use a press to install bearing
(2) onto shaft (1).
1Shaft
2 Bearing (2) (Press Fit)
3 Brush Assembly
4Key
5Gear
6 Washer
7 Lock Washer
8Screw
TN0327
1
2
3
4
1
2
5
6
7
8
