Turf Groomer Shaft Assembly
Disassembly

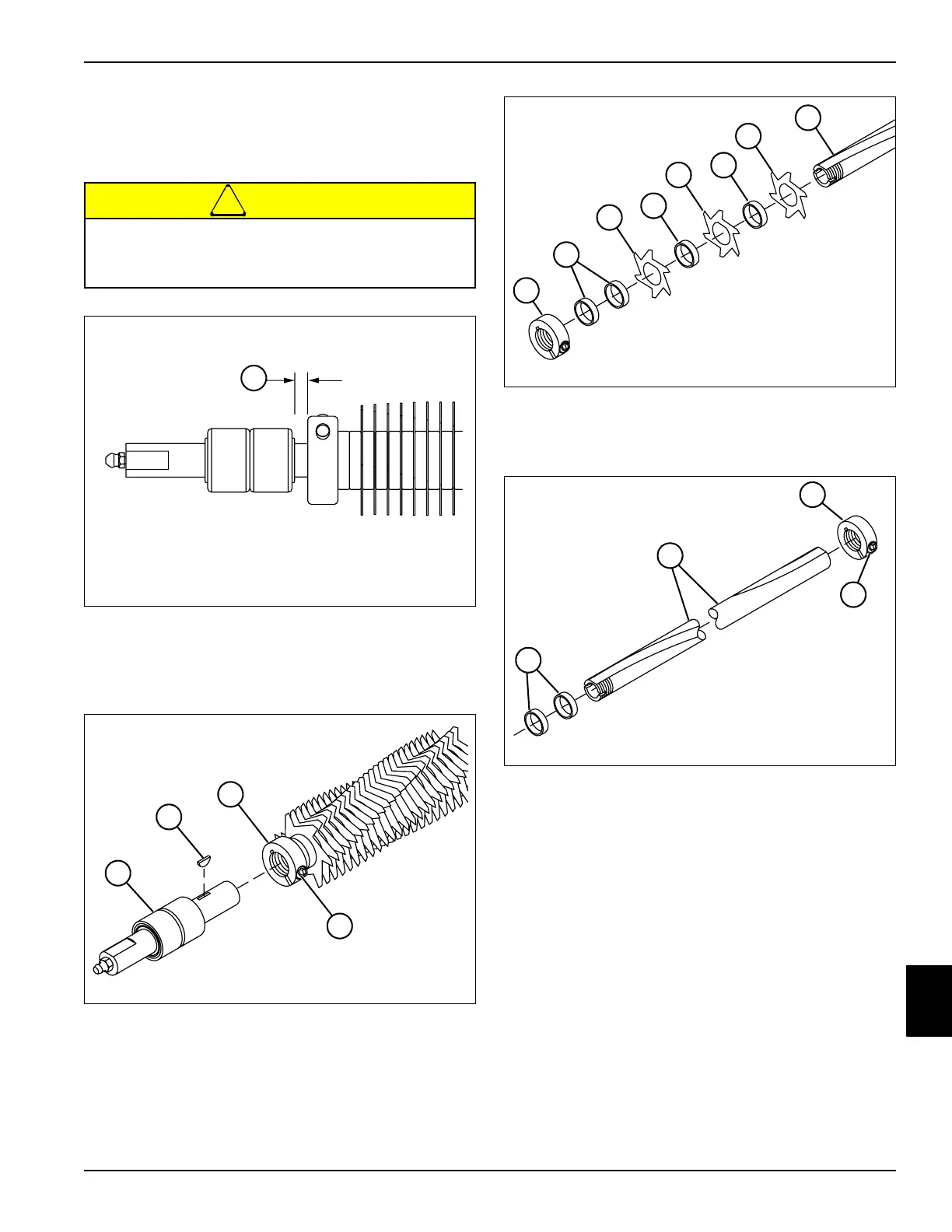

See Figures 10-47 through 10-50.
!
CAUTION
Figure 10-47
1. Measure and record the distance between the face of
the locking collar and the bearing face (1) on both
ends of the shaft assembly.
Figure 10-48
2. Loosen set screw (5) in locking collar (4) and remove
bearing shaft assembly (2) and key (3) from both
ends of the shaft.
Figure 10-49
3. Remove the locking collar (6), two spacers (7),
blades (8), and spacers (9) from shaft (10).
Figure 10-50
4. Remove two spacers (11) from the shaft (12).
5. Loosen the set screw (14) and remove the locking
collar (13) from the shaft (12).
To prevent personal injury and damage to cutting
edges, handle the vertical mower shaft assembly
with extreme care.
TN0338
1
2
TN0339
3
4
5
6
TN0340
7
8
9
8
9
8
10
TN0341
11
12
13
14
