POWER TRAIN
4157082 First Edition 5-9
5
NOTES
• Apply anti-seize compound to the threads of the
bedknife shoe mounting screws before installing.
• Install shims (if any) in the same locations as
recorded during removal.
8. Install the bedknife shoe mounting screw (13), shake
proof cone washer (14) and shim(s) (15) in the frame
and bedknife shoe.
9. Install left-side park brake band. (See “Park Brake
Band” on page 7-6.)

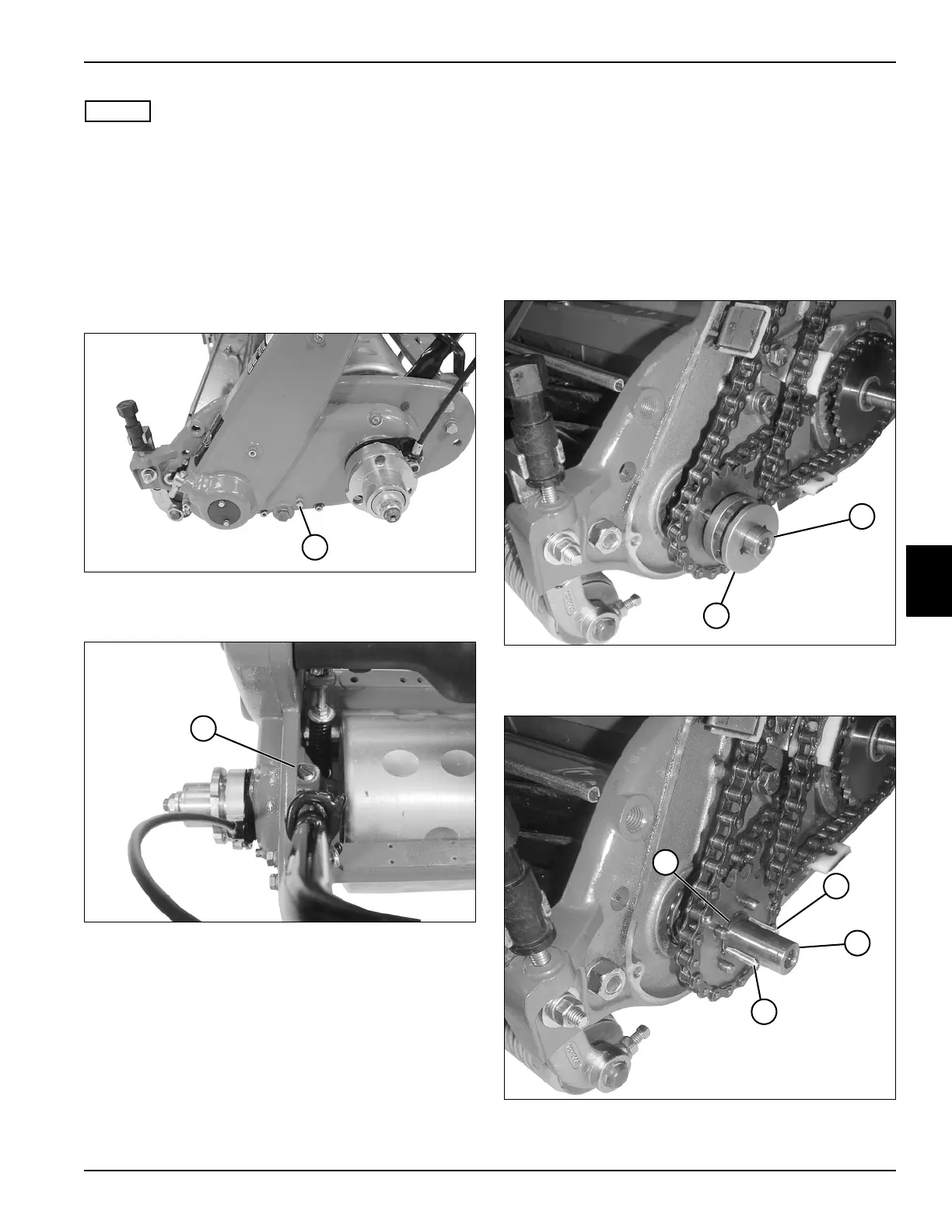

Figure 5-15
10. Remove the inspection plug (18).
Figure 5-16
11. Remove oil fill plug (19).
12. Add oil until oil flows from the inspection hole. (See
“Traction/Reel Drive Chain Case Oil” on page 2-7.)
13. Install the inspection (18) and oil fill (19) plugs.
14. Adjust bedknife. (See “Bedknife-to-Reel Adjustment”
on page 8-13.)
Drive Chains
Removal
See Figures 5-17 through 5-23.
1. Park mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove traction/reel drive case cover. (See
“Traction/Reel Drive Chain Case Cover” on
page 5-5.)
Figure 5-17
3. Remove reel clutch (2) from reel shaft (1).
Figure 5-18
4. Remove two keys (4 and 6) from reel shaft (5).
18
TN0021
19
TN0022
1
TN0046
2
5
TN0089
4
6
3
