Textron Jacobsen InCommand PGM 22 - Component Location

5-2 4157082 First Edition
POWER TRAIN
5
Component Location
See Figure 5-1.

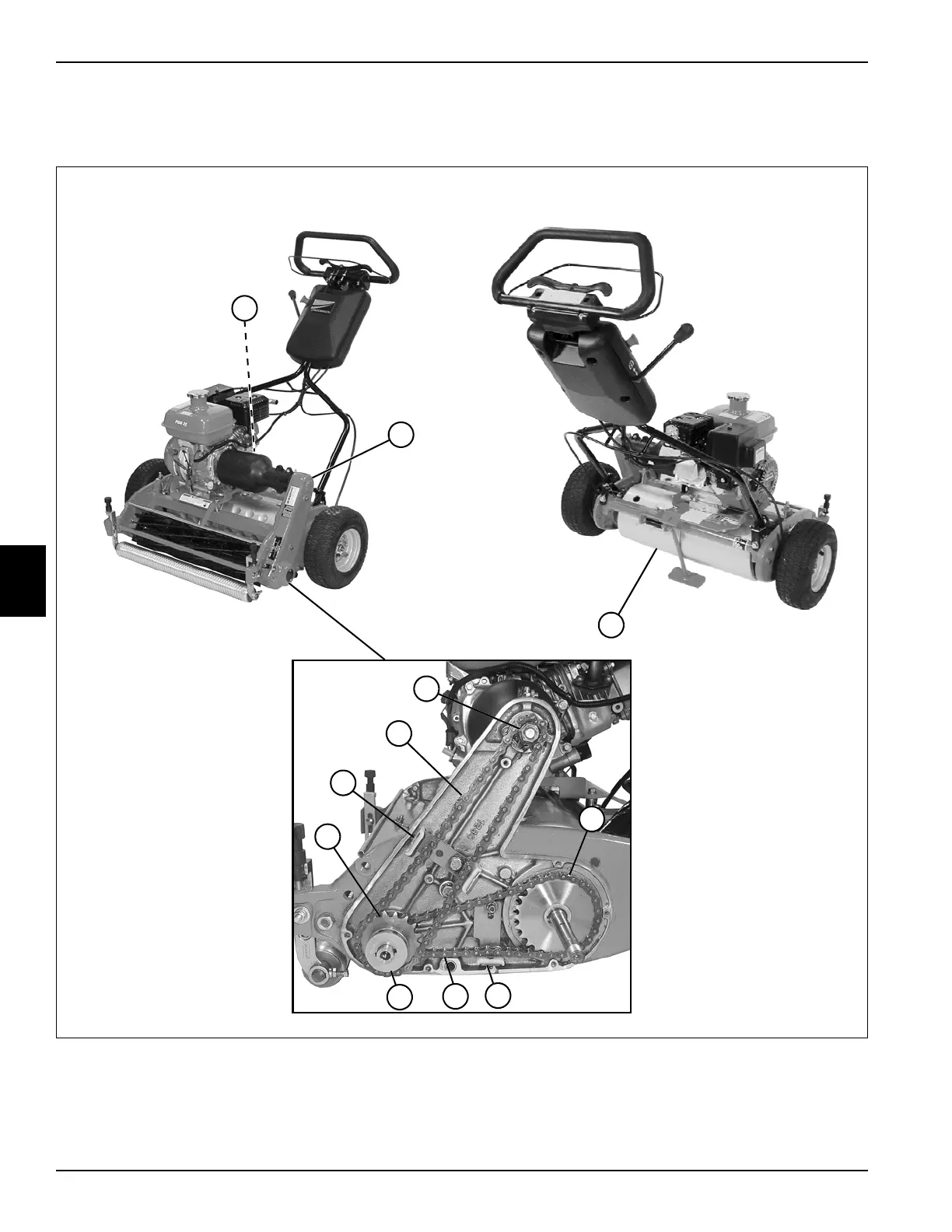

Figure 5-1: Drive Train Component Location
1 Traction/Reel Drive Clutch
2 Traction/Reel Drive Chain
Case
3 Traction Drum/Differential
Assembly
4 Clutch/Input Shaft and
Sprocket
5 Traction Drive
Sprocket/Planetary Gear
Assembly
6Chain Guide
7 Reel to Traction Drive
Chain
8 Reel Clutch
9 Reel Sprocket
10 Chain Guide
11 PTO to Reel Chain
TN0155, 0004, 0087
2
3
6
5
4
11
1
9
10
7
8
