Textron Jacobsen InCommand PGM 22 - Repair-Gear Drive; Left-Side Gear Drive-Disassembly and Assembly

ACCESSORIES
4157082 First Edition 10-29
10
Repair—Gear Drive
Left-Side Gear Drive—Disassembly
and Assembly

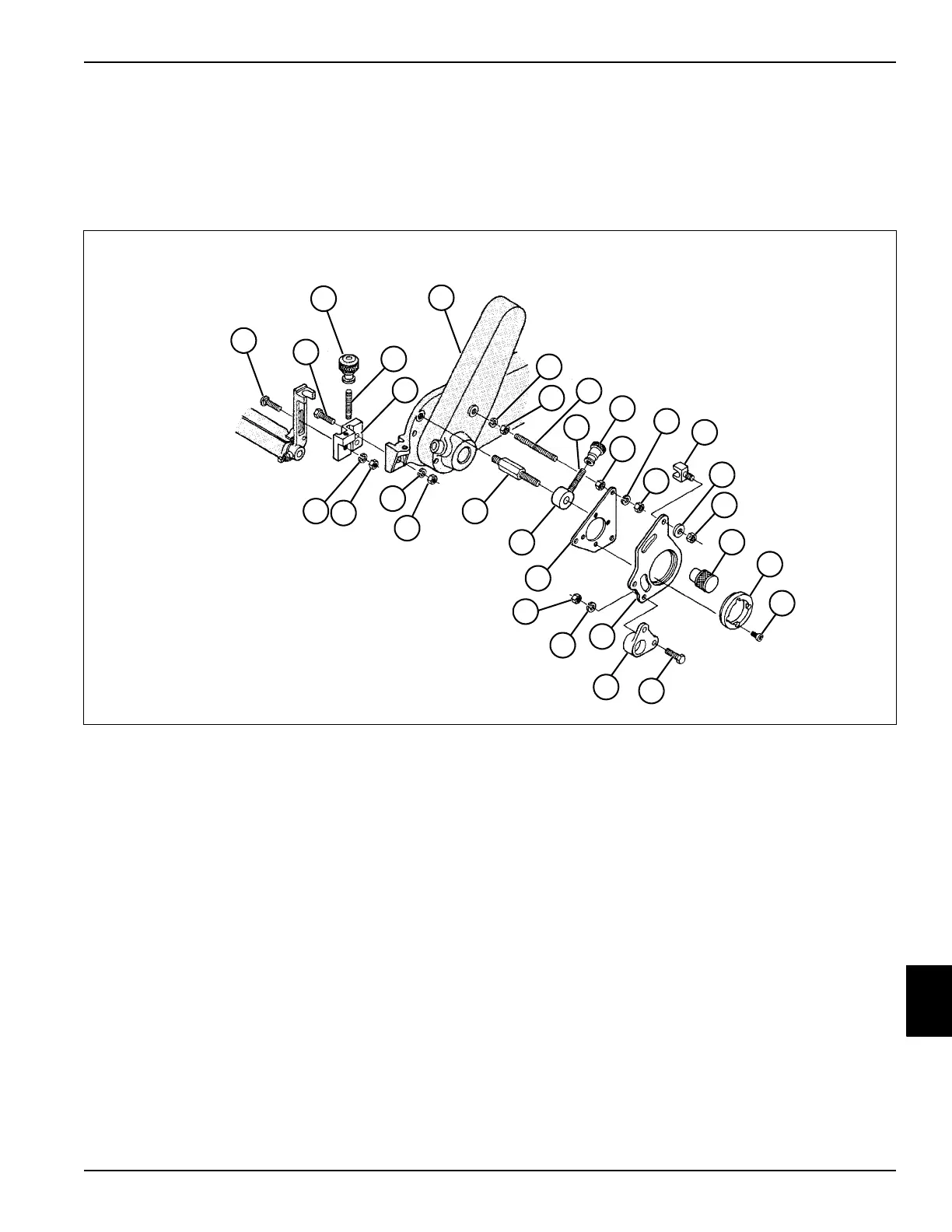

See Figure 10-54.
Figure 10-54
Assembly Notes
• Apply lithium grease NLGI Grade 2 to the channel of
roller bracket extension (5) before installing roller.
• Apply lithium grease NLGI Grade 2 to studs (4 and
10) before installing adjusters.
TN0343
1
3
2
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
24
23
25
26
27
28
29
30
32
31
10
1 5/16-18 x 1-1/2” Carriage Bolt
2 5/16-18 x 1-1/2” Hex Bolt
3 Roller Adjuster
4Stud
5 Left-Side Roller Bracket Extension
6 Left-Side Frame
71/4” Lock Washer
81/4-20 Hex Nut
9 1/4-20 x 4-1/8” Stud
10 Stud
11 Height Adjuster
12 1/4-20 Hex Nut
13 1/4” Lock Washer
14 1/4-20 Hex Nut
15 Adjuster Pivot Bracket
16 1/4” Flat Washer
17 1/4” Lock Nut
18 Locking Nut
19 Pivot Ring
20 1/4-20 x 1/2 Socket Head Screw (4)
21 5/16-18 x 1” Hex Bolt
22 Bearing Housing
23 Pivot Plate
24 5/16” Lock Washer
25 5/16-18 Nut
26 Pivot Mounting Plate
27 Spacer
28 Left-Side Locking Stud
29 5/16-18 Nut
30 5/16” Lock Washer
31 5/16-18 Nut
32 5/16” Lock Washer
