Figure 5-32
11. Install the front half of the clutch cover (28) using four
screws (26) and lock nuts (27).
12. Install traction/reel chain case cover. (See
“Traction/Reel Drive Chain Case Cover” on
page 5-5.)
Traction/Reel Drive Chain Case
Removal
See Figures 5-33 through 5-38.
1. Park mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove engine. (See “Engine and Clutch” on
page 3-7.)
3. Remove grass shield. (See “Grass Shield” on
page 8-17.)
4. Remove handle assembly. (See “Handle Assembly”
on page 6-3.)
5. Remove drive chains. (See “Drive Chains” on
page 5-9.)

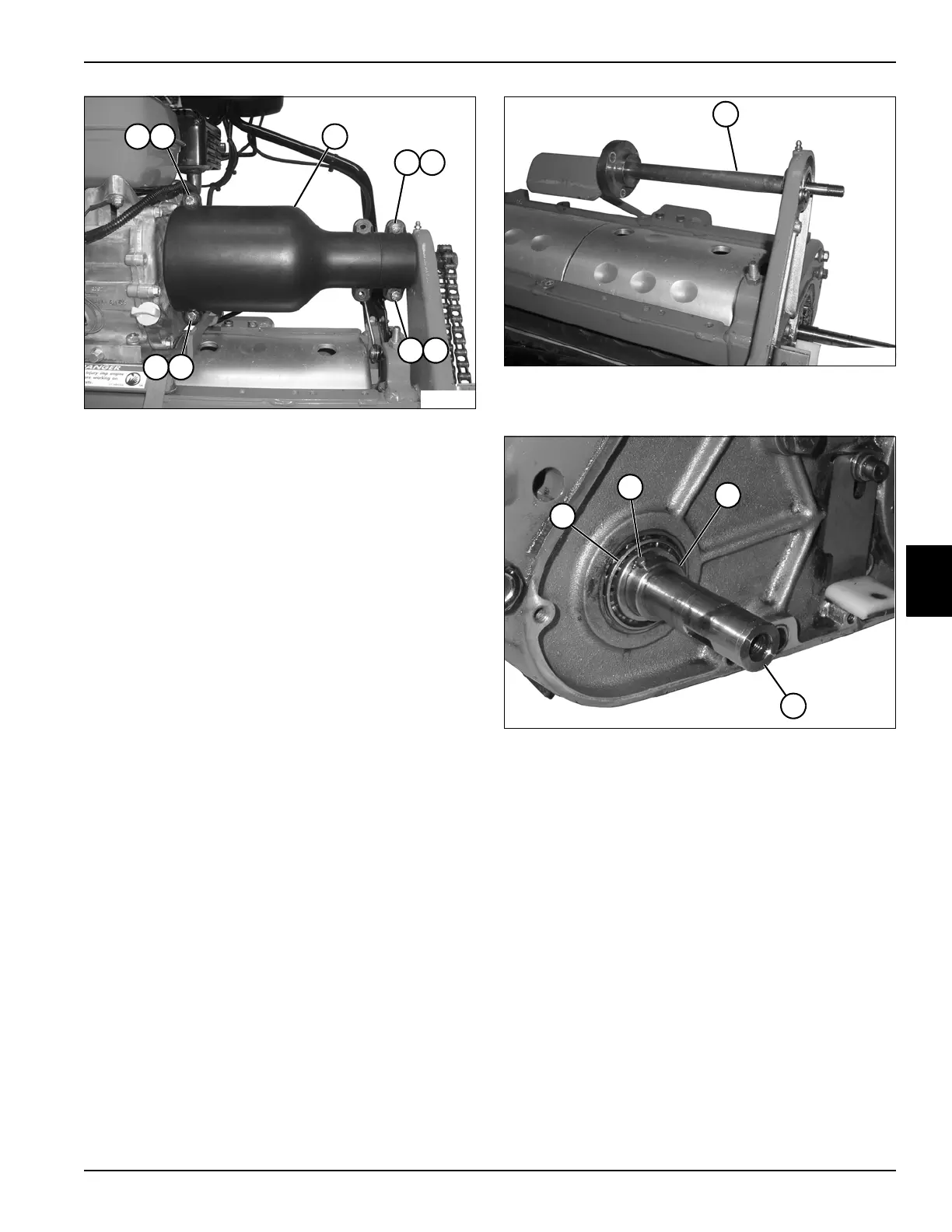

Figure 5-33
6. Remove clutch/input shaft (1).
Figure 5-34
7. Using a punch, remove pin (3) from the collar (4).
8. Remove the collar (4) from the reel shaft (5).
9. Remove bearing (2) from reel shaft (5).
TN0090
26 27
2826 27
26 27
26 27
1
TN0094
2
TN0095
3
4
5
