5-12 4157082 First Edition
POWER TRAIN
5

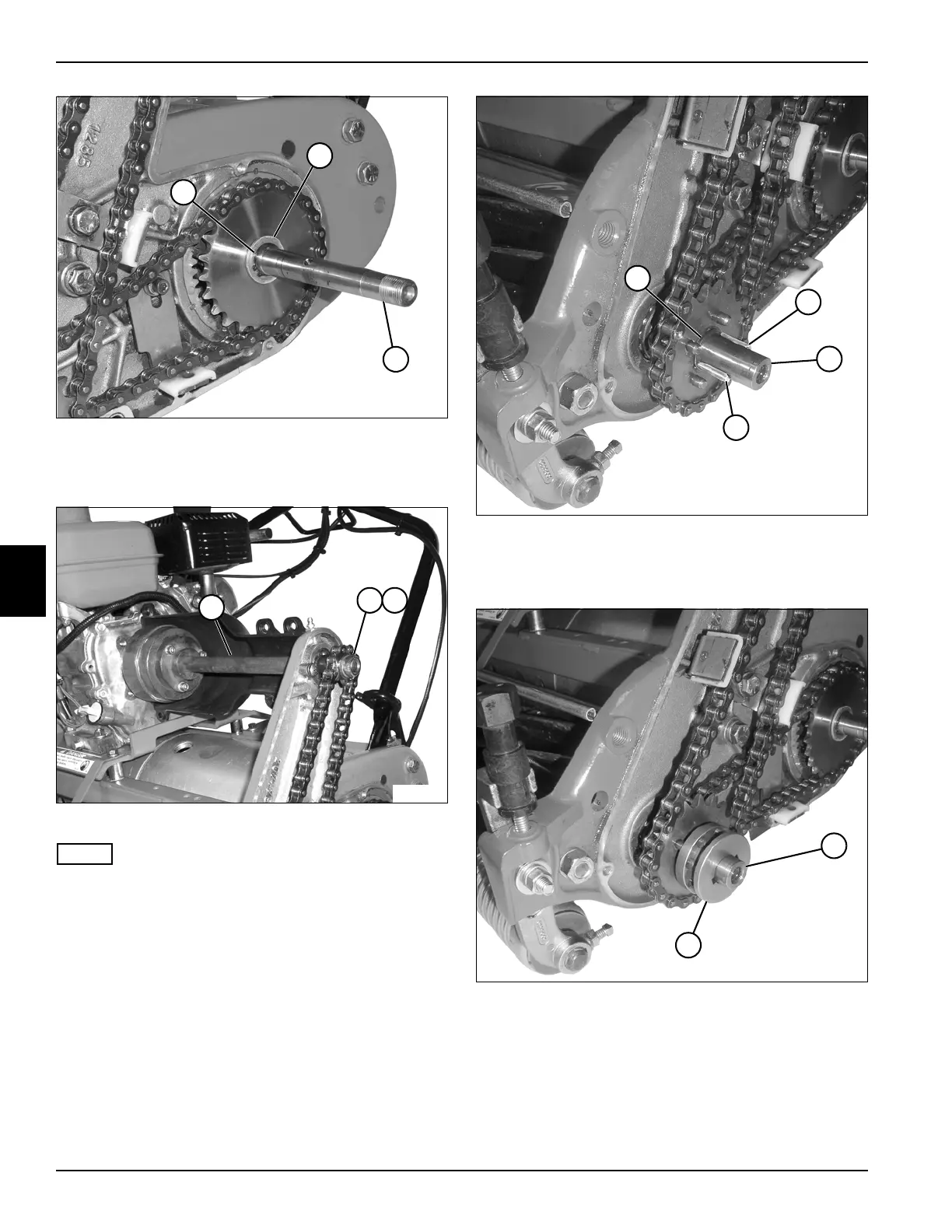

Figure 5-28
6. Install washer (15) and retaining ring (14) on the
traction drum shaft (16).
Figure 5-29
NOTE
Use a strap wrench to prevent clutch from turning while
installing nut.
7. Install nut (18) and washer (19) on the clutch/input
shaft (17).
Figure 5-30
8. Install washer (20) on reel shaft (22).
9. Install two keys (21 and 23) on reel shaft (22).
Figure 5-31
10. Install reel clutch (24) on reel shaft (25).
TN0092
15
14
16
17
TN0091
18 19
22
TN0089
21
23
20
25
TN0046
24
To Next Page
