5-14 4157082 First Edition
POWER TRAIN
5

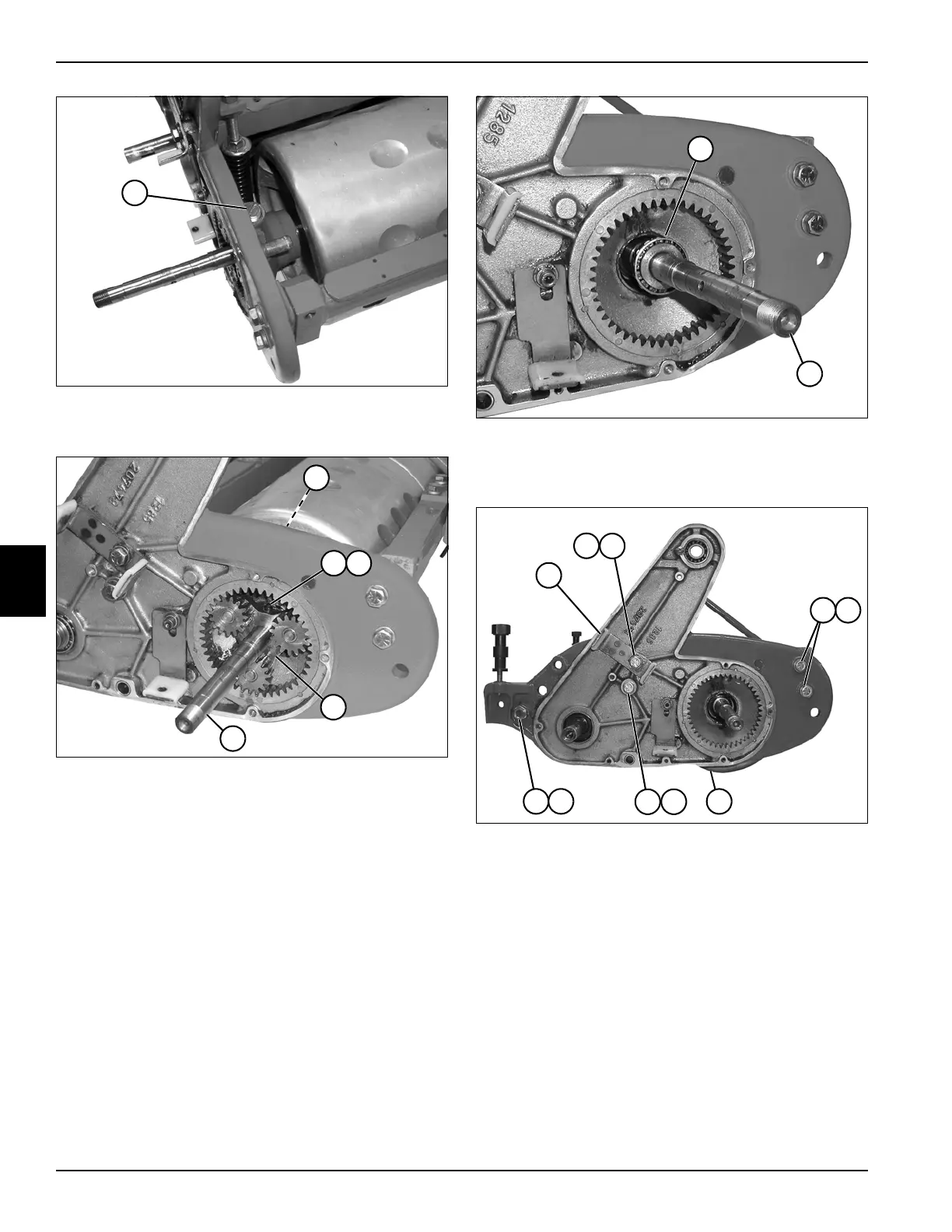

Figure 5-35
10. Remove oil fill plug (6).
Figure 5-36
11. Rotate the planetary gear assembly (10) until the
outer set screw (8) aligns with oil filler hole (7).
12. Remove the outer (8) and inner (9) set screws.
13. Remove the planetary gear set assembly (10).
14. Remove the key (not shown) from the traction drum
shaft (11).
Figure 5-37
15. Remove bearing (12) from the traction drum shaft
(13).
Figure 5-38
16. Remove nut (22) and lock washer (23).
17. Remove two screws (17) and lock washers (18).
18. Remove screw (15), lock washer (16), and chain
guide (14).
19. Remove screw (20) and lock washer (21).
20. Remove chain case (19).
6
TN0099
TN0098
8 9
10
11
7
12
TN0122
13
TN0143
15
14
19
20
22
18
23
16
17
21
