POWER TRAIN
5
8. Remove four flat socket-head screws (5) and right
brake mounting bracket (4).

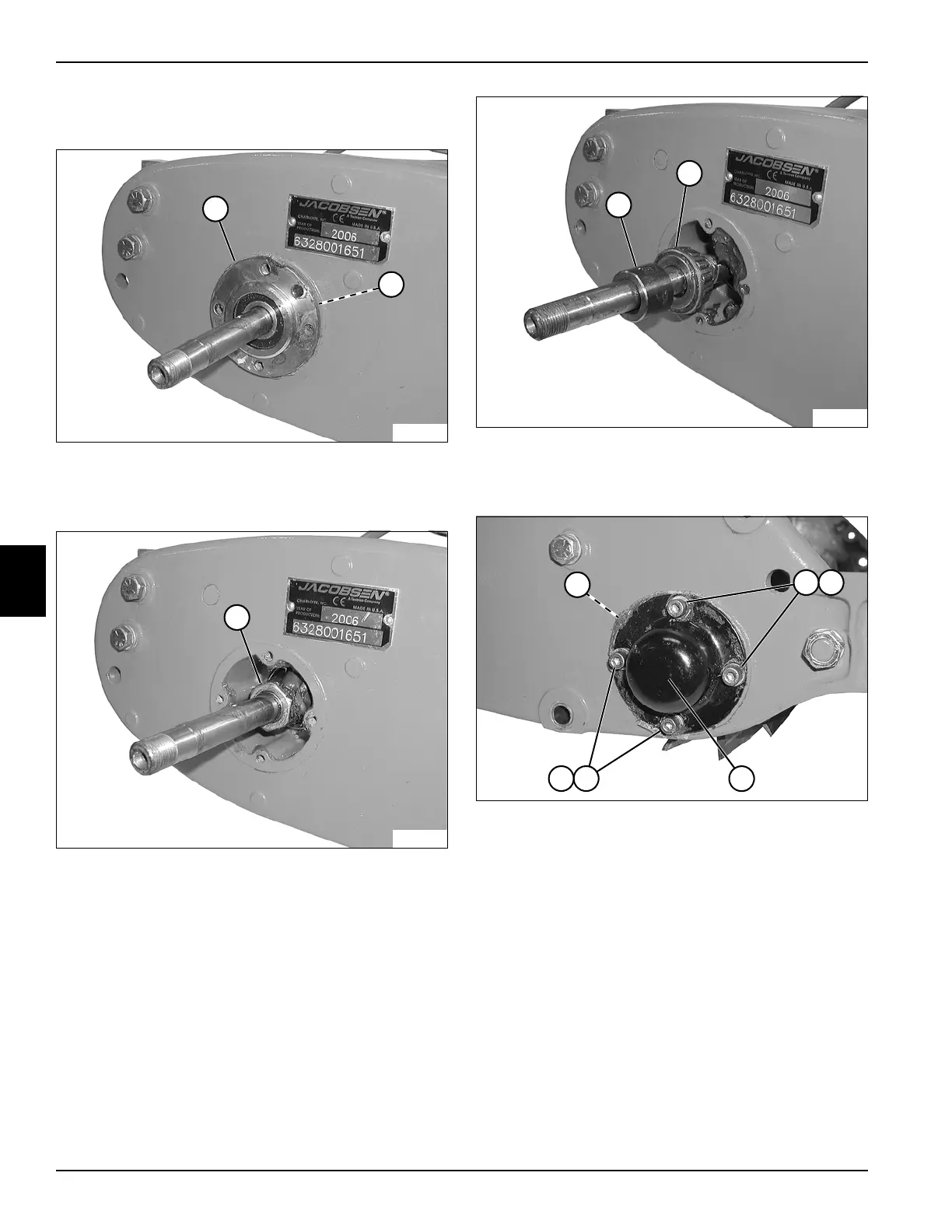

Figure 5-49
9. Remove the bearing housing assembly (6) and
gasket (7).
Figure 5-50
10. Remove nut (8) from the traction drum shaft.
Figure 5-51
11. Remove spacer (9) and bearing (10) from the traction
drum shaft.
Figure 5-52
12. Remove four socket-head screws (12), lock washers
(13), reel cover (14), and gasket (11).
6
TN0116
7
8
TN0117
9
TN0118
10
11
TN0111
12 13
14
~
12 13
