Service Diagnostic Software
8. When the capacitor gain is increased by an increment of 1, the gain steps and gain ratios for the
Vis and UV models should be:
Table 9. 2 Capacitor Gain Table
Step (n) Gain Step Ratio (Energy n)/(Energy n-1)
0 1.0000
1 1.2670 1.2670 – 7.14 max
2 5.4902 4.3333 – 7.14 max
3 28.0000 5.1000 – 7.14 max
4 40.0000 1.4286 – 7.14 max
5 70.0000 1.7500 – 7.14 max
6 280.0000 4.0000 – 7.14 max
9. If the gain ratios are not within the acceptable range, then there is a problem with the Detector
board cable, or the Detector board, or the Main board.
Lamp
1. Used to reset the Lamp Life value to 0 hours (Vis).
2. Used to reset the Lamp Life value to 0.0% used (UV).

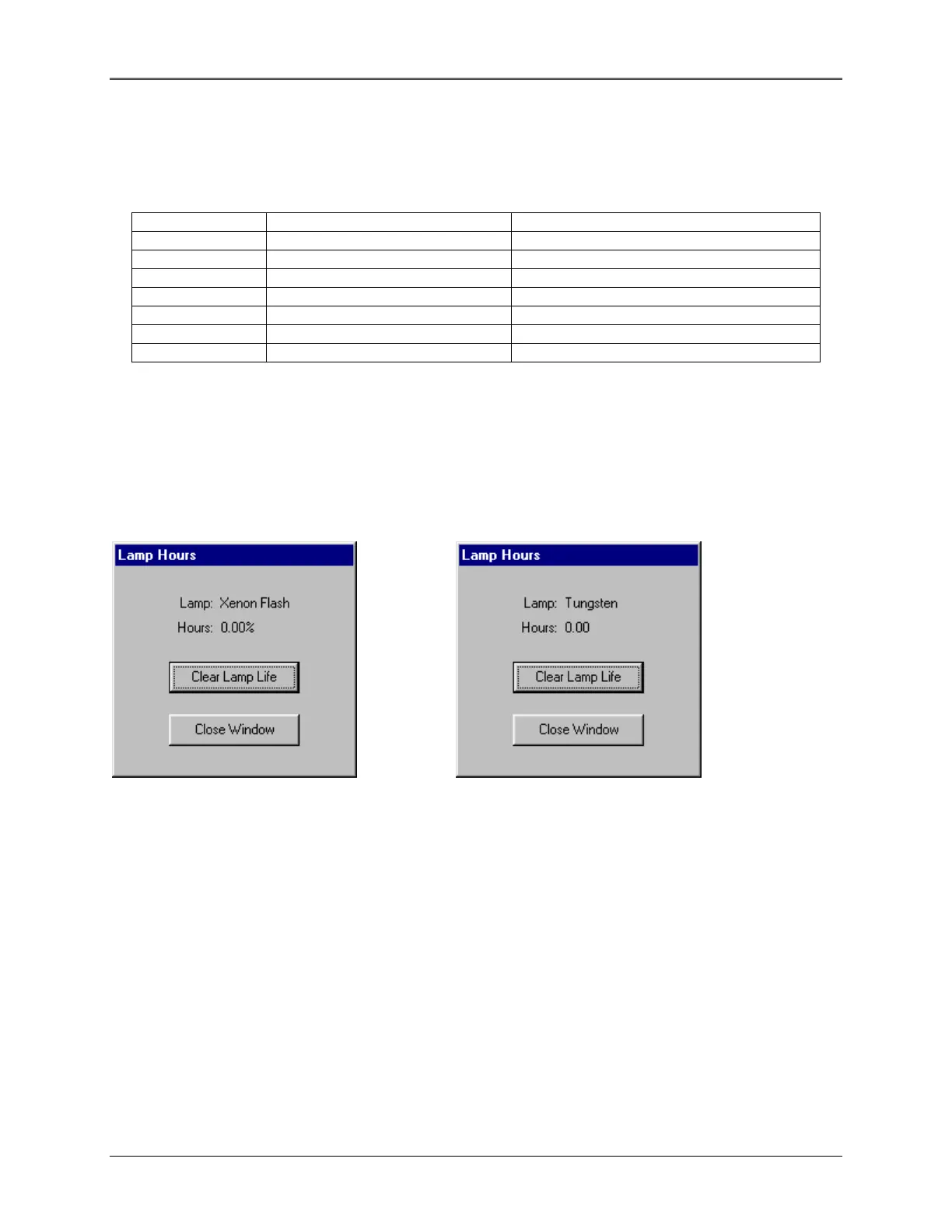

Figure 9.19 UV-Vis Lamp Hours Reset Window
Figure 9.20 Vis Lamp Hours Reset Window
9-13
