Disassembly and Replacement
Top cover
Removal
1. Access the back of the instrument and loosen the two screws at the back of the instrument (refer to
Figure 5.3). It is not necessary to remove the screws.

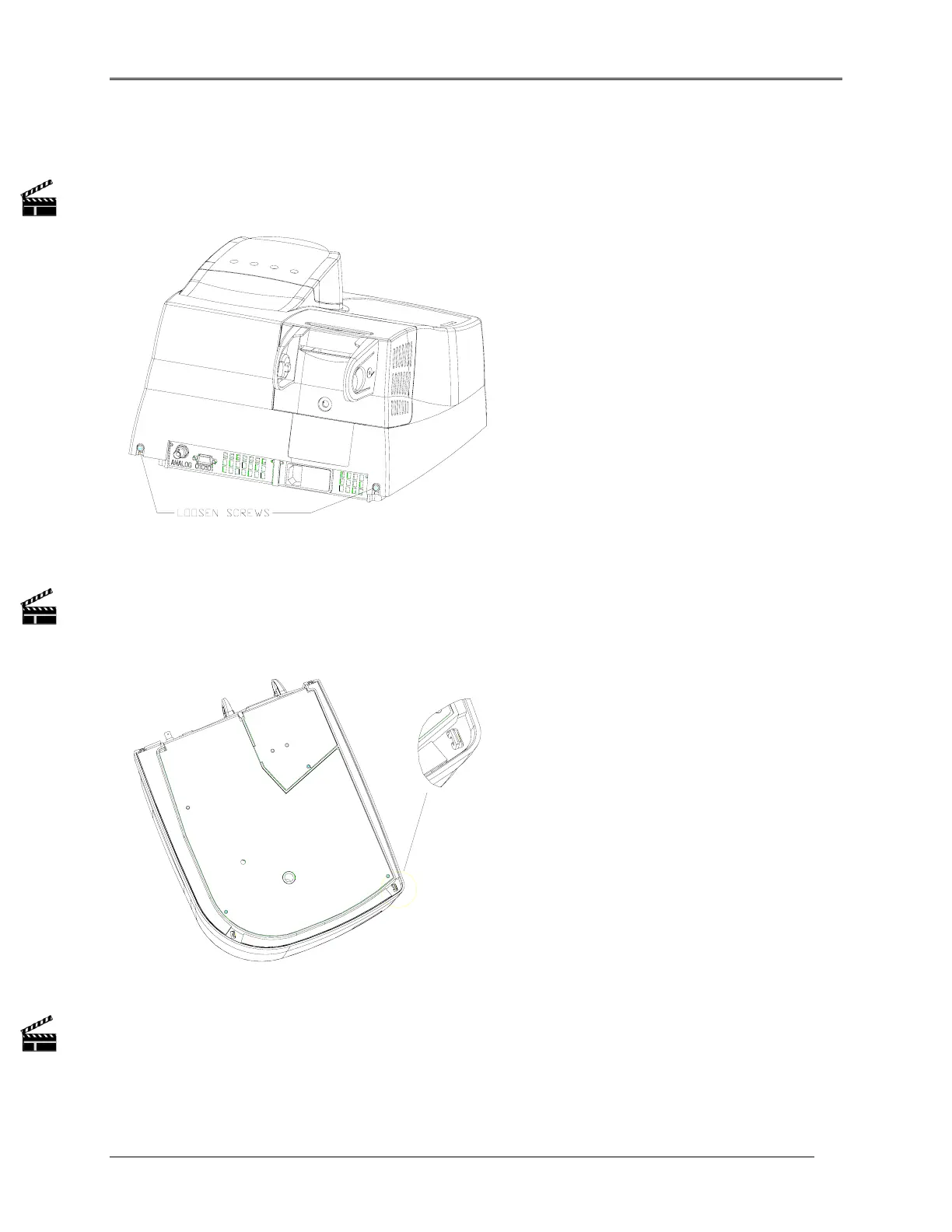

Figure 5.3 Spectronic GENESYS 10 Spectrophotometer: Rear View
2. Lift up on the front of the instrument and press the two tabs outward to release them from their clips
(refer to Figure 5.4). While holding the tabs outward, press the tabs up through the bottom of the
instrument.
Figure 5.4 Spectronic GENESYS 10 Spectrophotometer: Bottom View Showing Tabs
CAUTION: THE DISPLAY AND KEYPAD CABLES ARE CONNECTED BETWEEN THE
COVER AND THE MAIN CIRCUIT BOARD IN THE INSTRUMENT. BE
CAREFUL WHEN LIFTING OFF THE COVER TO MAKE SURE THE CABLES
5-4
