Disassembly and Replacement
Main board
Main board Connections

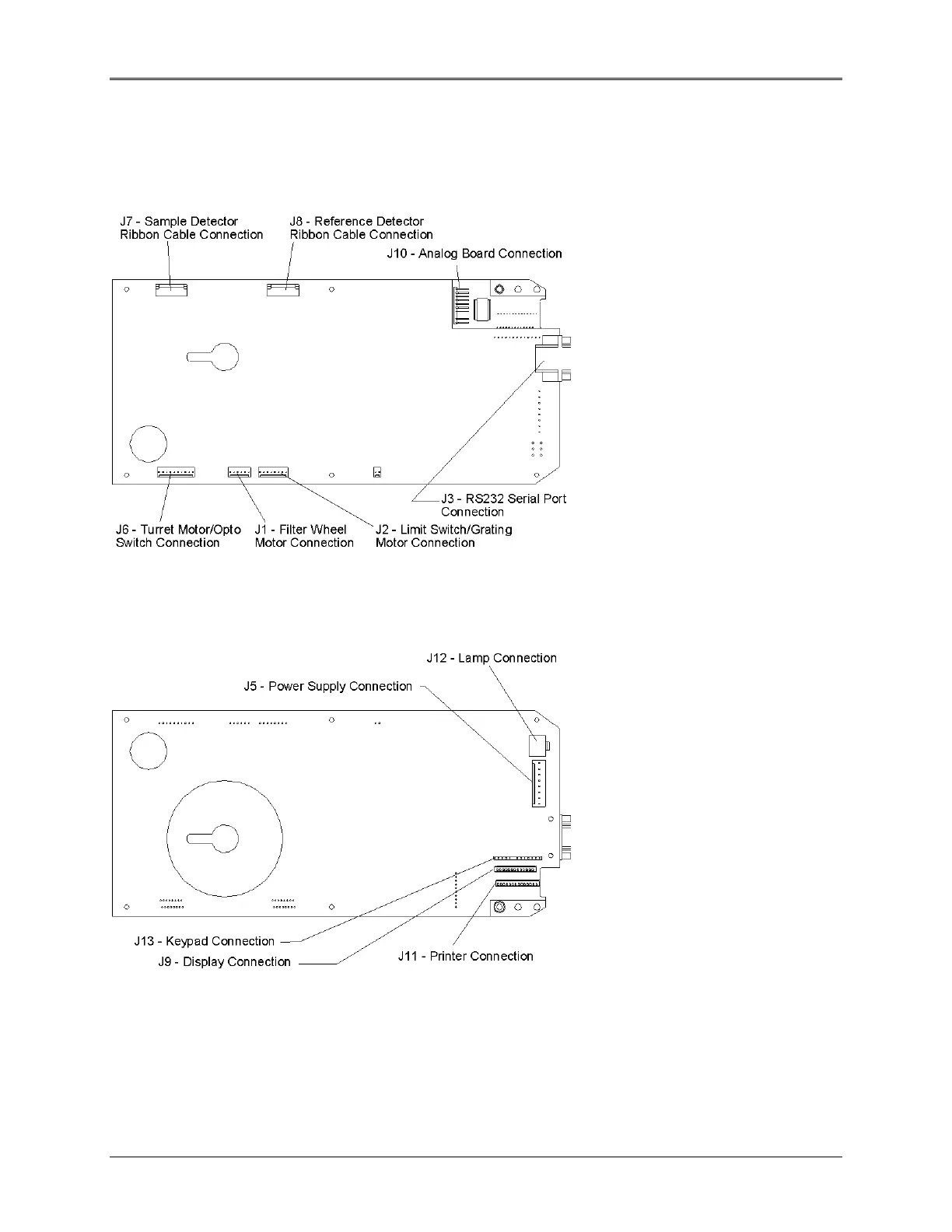

Figure 5.23 Main board as Viewed From Bottom of Instrument
Figure 5.24 Main board as Viewed From Top of Instrument
5-27
