15. MAJOR UNIT REPLACEMENT EM18-33031
15.1 POWER SUPPLY UNIT
15-2
15.1 POWER SUPPLY UNIT

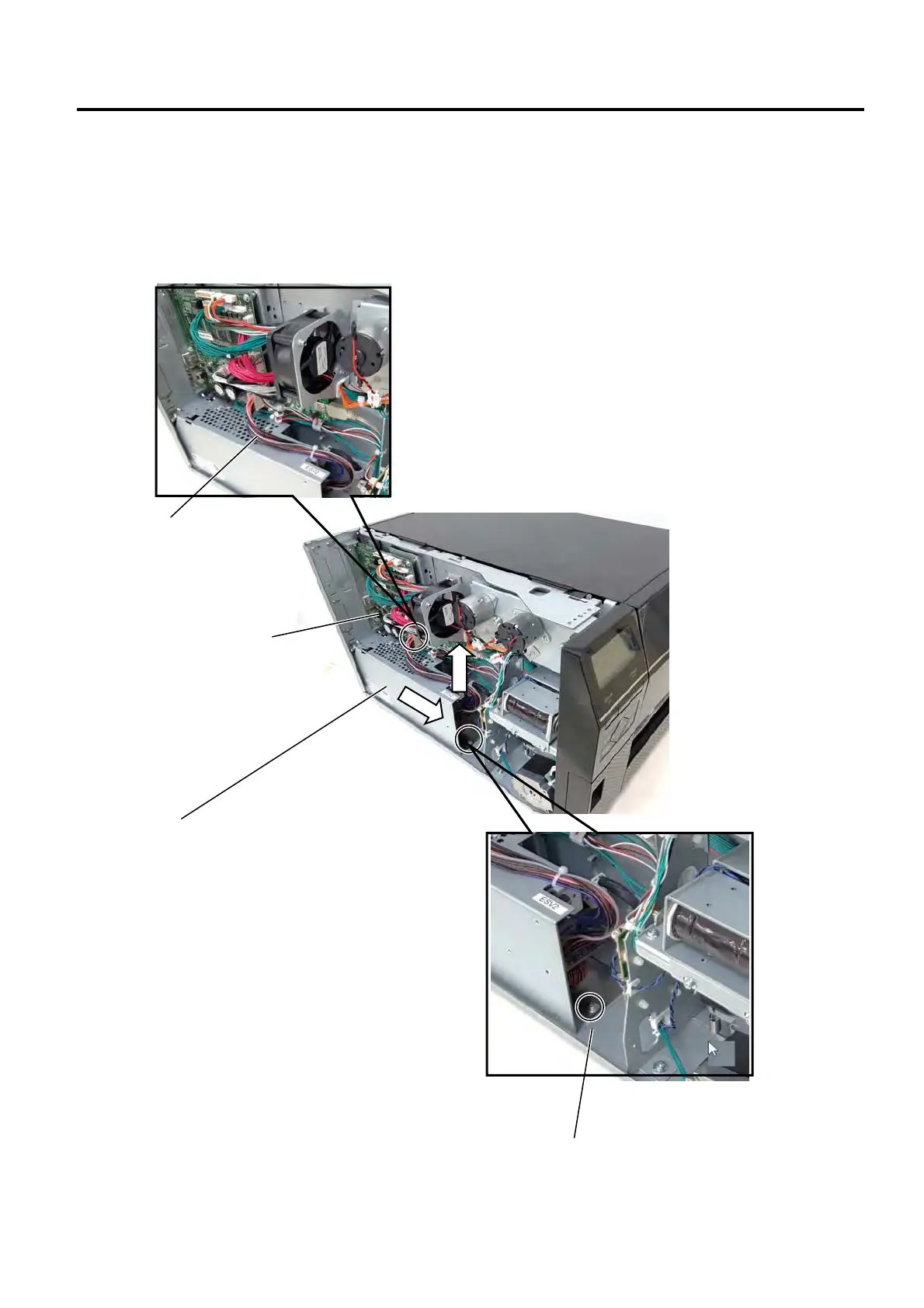

1) Remove the side panel (L). (Refer to Section 3.2.)
2) Disconnect the power supply harness from the Main PC board.
3) Remove the SMW-4x6 screw to detach the power supply unit from the printer.
Power Supply Unit
Main PC Board
SMW-4x6 Screw
Power Supply Harness
