4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33031
(Revision Date: Jan., 2019)
4.9 4” ROTARY CUTTER (B-EX206-R-QM-S)
4-60
4.9 4” ROTARY CUTTER (B-EX206-R-QM-S)

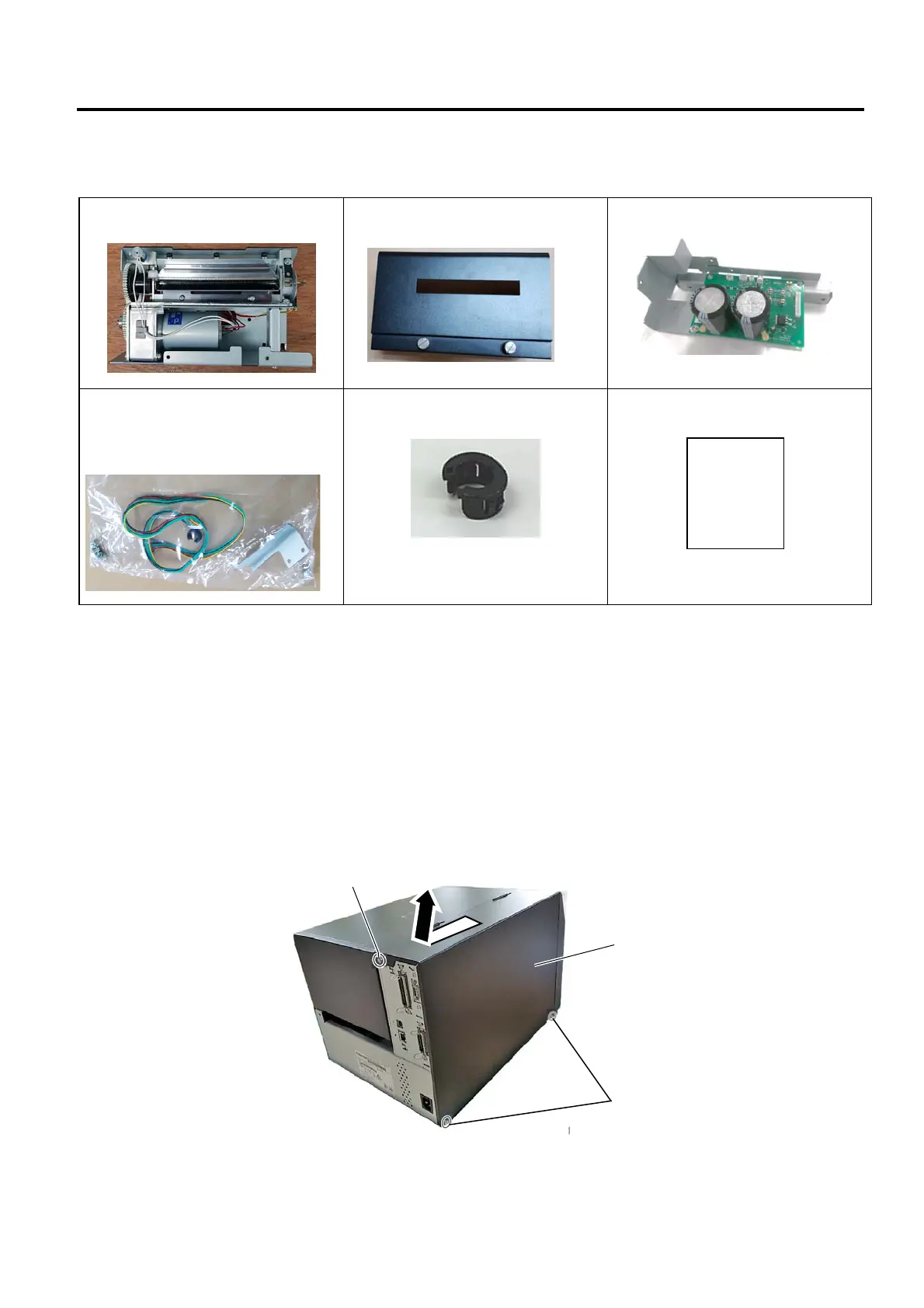

All the following parts are supplied with the kit. Make sure you have all items shown below.
Cutter Unit (1 pc.)
Cutter Cover (1 pc.)
Cutter Drive Unit (1 pc.)
Harness Ass’y (1 pc.)
M-4x8 Screw (5 pcs.)
M-4x6 Screw (2 pcs.)
Bracket (1 pc.)
Cord Bush (1 pc.)
Installation Manual (1 copy)
NOTE: This module cannot be used together with the B-EX906-H-QM-S strip module or B-EX206-QM-R disc
cutter.
When this cutter is used together with an RFID module, be sure to install the RFID module prior to the
cutter.
4.9.1 Removing the Covers and Strip plate
1. Turn the printer power off and disconnect the Power Cord.
2. Remove the three B-4x5 screws from the Side Panel (L).
3. Slide the Side Panel (L) backward, and raise it to remove from the printer.
B-4x5 Screw
Side Panel (L)
B-4x5 Screw
To Next Page
