15. MAJOR UNIT REPLACEMENT EM18-33031
15.13 RIBBON END SENSOR
15-27
15.13 RIBBON END SENSOR

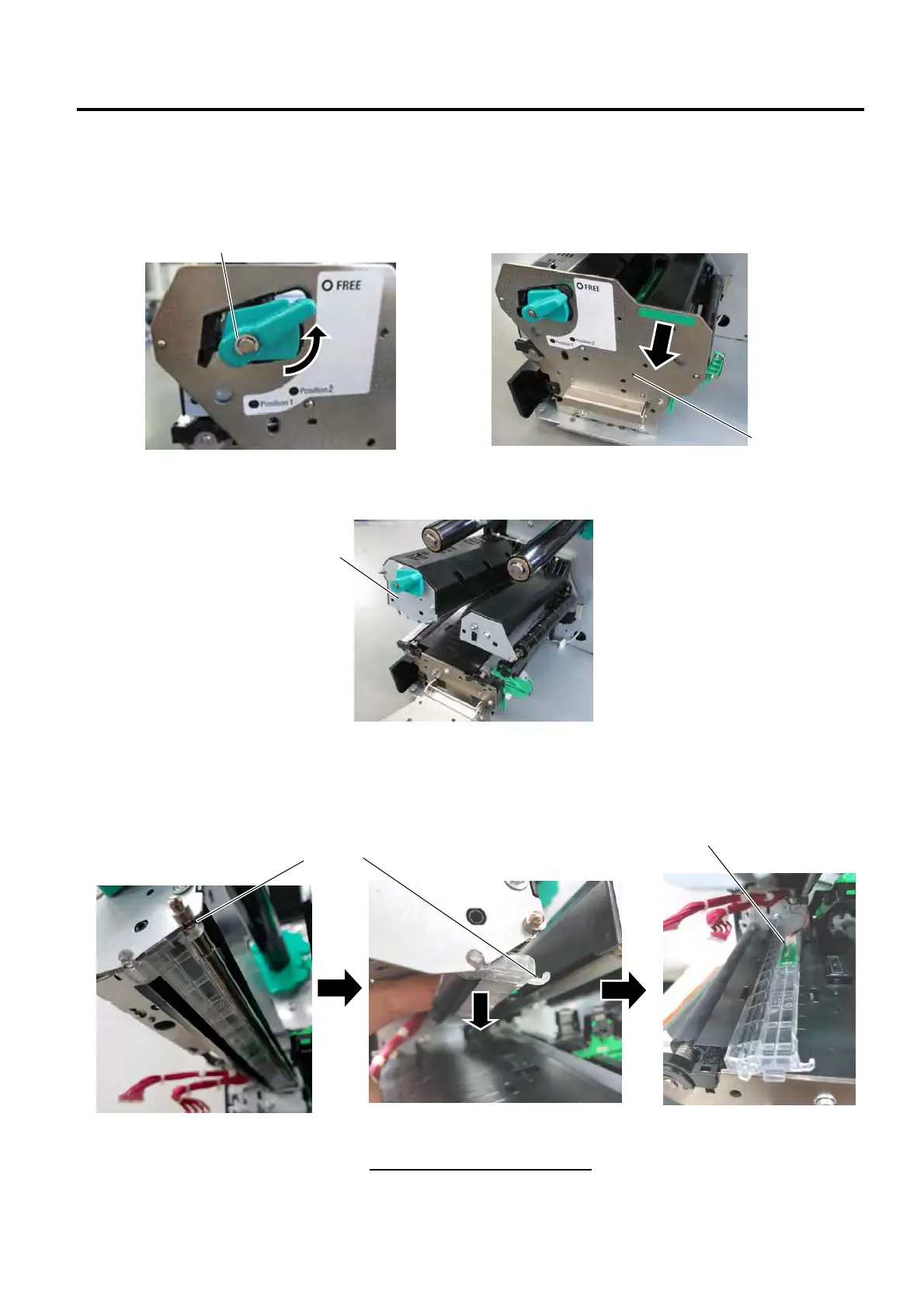

1) Open the top cover. (Refer to Section 3.1.)
2) Turn the head lock lever to FREE position and open the Print Head Block Holder Plate.
3) Open the print head block.
4) Remove the Print Head. See Section 15.7 for Details.
5) Push the Ribbon Guide down (both sides) to remove the assembly.
Head Lever
Print Head Block
View from the lower right side
Ribbon Guide Hook
Print Head Block
Holder Plate
Ribbon Guide Sensor
