Toshiba TOSVERT VF-AS3 User Manual

E6582062
6-163 6. [Advanced] How to use parameters
3
4
6
9

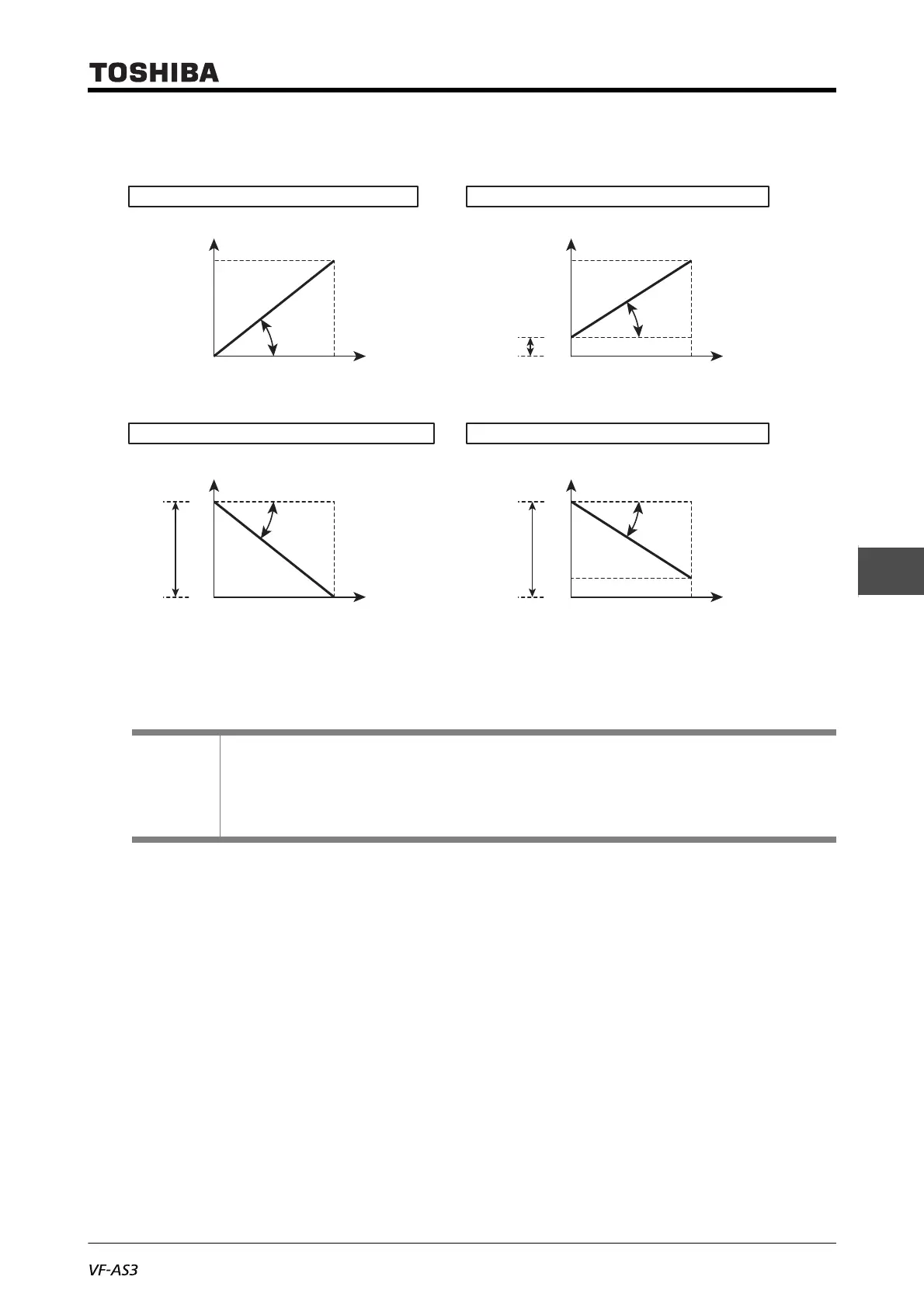

■ Setting example
Set the inclination of analog output with <FM: Terminal FM adjustment> and <F671: Terminal AM
adjustment>. For details of how to adjust, refer to [5. 2. 6].
Reference
• How to operate the operation panel -> Refer to [3. 1. 1].
• How to switch display mode on the operation panel -> Refer to [3. 1. 2].
• Procedure to change parameter setting -> Refer to [4. 2. 3]
• Details on operation by external signals -> Refer to [Chapter 7].
Analog output current (mA)
Internal calculated
value
0
0
20
100%
Analog output current (mA)
Internal calculated
value
0
4
20
100%
Analog output current (mA)
Internal calculated
value
:
Large
:
Small
0
0
20
100%
Analog output current (mA)
Internal calculated
value
0
4
20
100%
<F681>=”1”, <F691>=”1”, <F692>= “0” (%)
<F681>=”1”, <F691>=”1”, <F692>= “100” (%) <F681>=”1”, <F691>=”0”, <F692>= “100” (%)
<F681>=”1”, <F691>=”1”, <F692>= “20” (%)
<FM>
<FM> <FM>
<FM>
<F692> <F692>
<F692>

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
