EtherCAT Information
© TR-Electronic GmbH 2008, All Rights Reserved Printed in the Federal Republic of Germany
Page 74 of 119 TR - ECE - BA - DGB - 0069 - 02 11/17/2009
4.4 Device profile
The device profile describes the application parameters and the functional behavior of
the device, including the device class-specific state machine. With EtherCAT you do
not develop individual device profiles for device classes. Instead, simple interfaces are
provided for existing device profiles:
The measuring system supports the CANopen-over-EtherCAT (CoE) mailbox
protocol, and consequently the "Device Profile for Encoder", CiA DS-406, known
from CANopen.

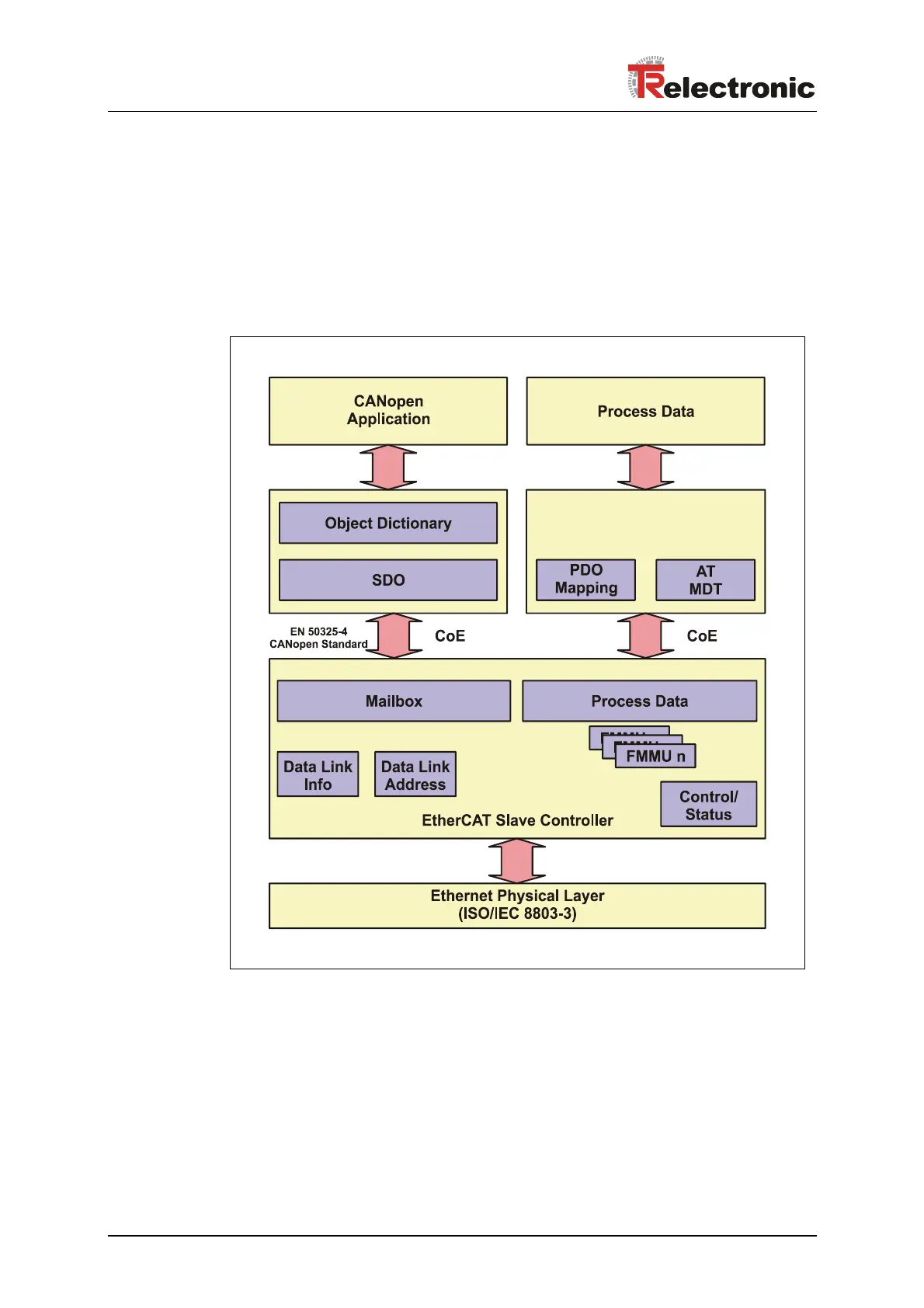

Figure 3: CANopen over EtherCAT communication mechanism
