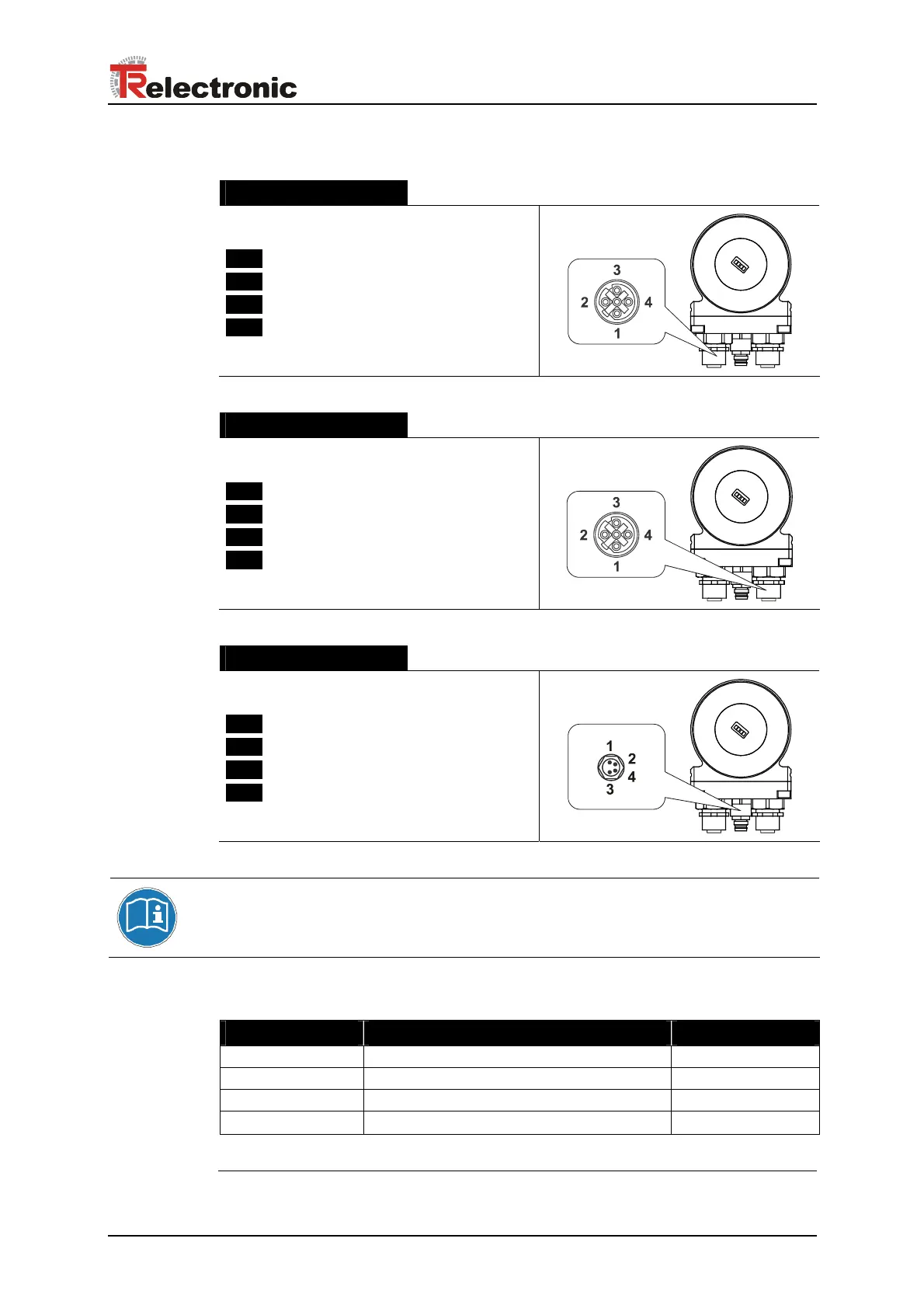

5.1 Connection
PORT-IN
Flange socket M12x1-4 pin D-coded
Pin 1 TxD+, transmitted data +
Pin 2 RxD+, received data +
Pin 3 TxD–, transmitted data –
Pin 4 RxD–, received data –
PORT-OUT
Flange socket M12x1-4 pin D-coded
Pin 1 TxD+, transmitted data +
Pin 2 RxD+, received data +
Pin 3 TxD–, transmitted data –
Pin 4 RxD–, received data –
Supply
Flange connector M8x1-4 pin
Pin 1 11 – 27 V DC
Pin 2
1)
TRWinProg+
Pin 3 GND, 0 V
Pin 4
1)
TRWinProg–
Shielded twisted pair cables must be used for the supply !
The shielding is to be connected with large surface on the mating
connector housing!
Order data for Ethernet flange socket M12x1-4 pin D-coded
Manufacturer Designation Order no.:
Binder Series 825 99-3729-810-04
Phoenix Contact SACC-M12MSD-4CON-PG 7-SH (PG 7) 15 21 25 8
Phoenix Contact SACC-M12MSD-4CON-PG 9-SH (PG 9) 15 21 26 1
Harting
HARAX
®
M12-L
21 03 281 1405
1)
For service purposes, e.g. software update
