PROGRAMMER’S GUIDE
FMS-1650
TRIATEK reserves the right to change product specifications without notice.
- 3 -
CAUTION
FAST ACTING
ELECTRONIC ACTUATOR
Controller
Actuator
120/24VAC, 30Va Transformer
Supplied by Triatek
120/24VAC, 20Va Third Party
Transformer

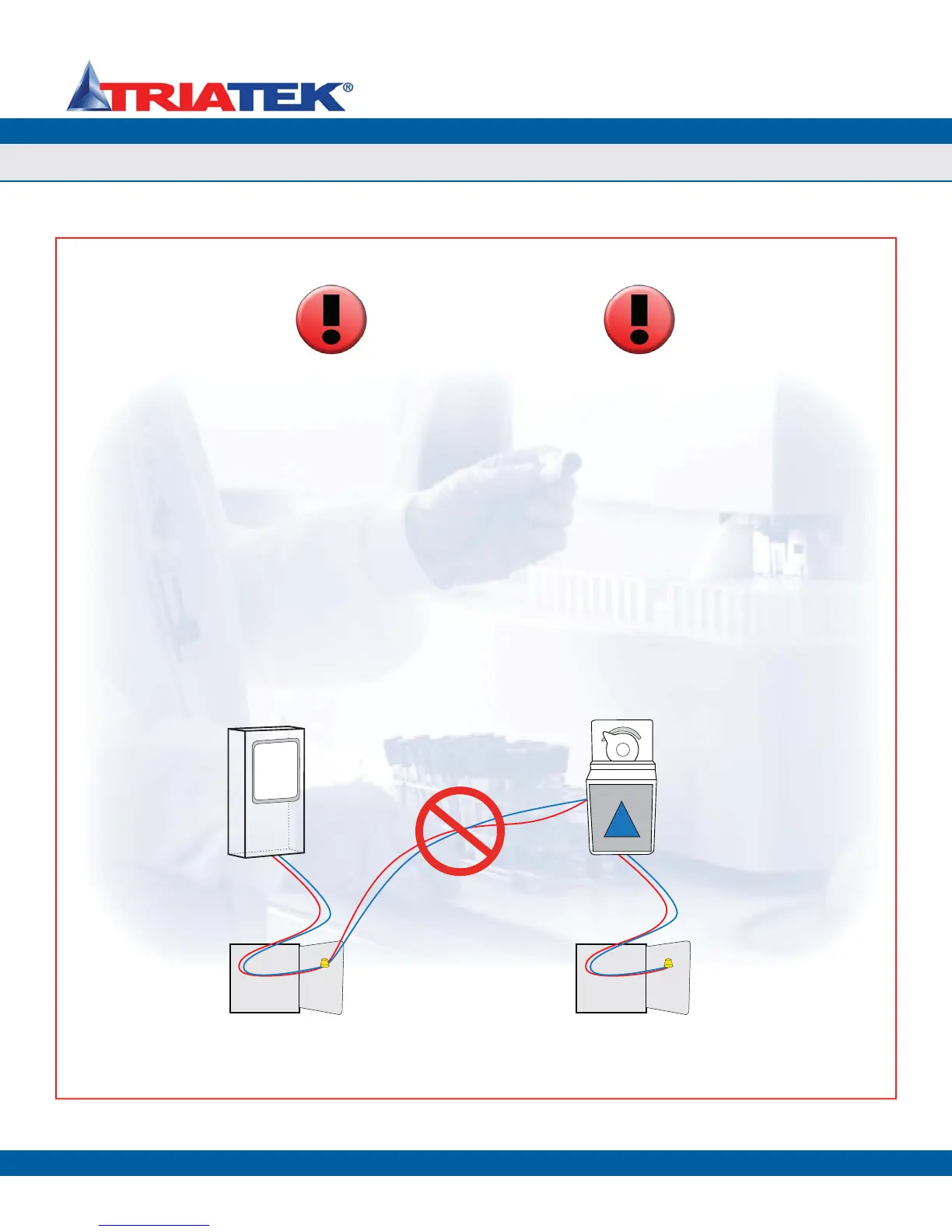

CORRECT
Failure to follow the wiring diagrams could result in damage to
your equipment and could void your warranty. Wiring diagrams
can also be found at www.triatek.com.
Under no circumstances should a single transformer be split
between actuator and controller. Doing so will damage the
actuator, the transformer, the controller or all units. A single
120/24V 30Va transformer is required for the controller and a
separate 120/24V 20Va transformer is required for the actuator.
