106
12 Interface
106
Interface
Chapter
12
- OFL1, FL2, -LOAD, +LOAD, OVERLOAD:
"1" is indicated every time an error occurs.
- Calibration process: "1" is indicated when calibrating.
- Calibration error: The error No. of the calibration error is indicated.
"0" is indicated when there is no calibration error.

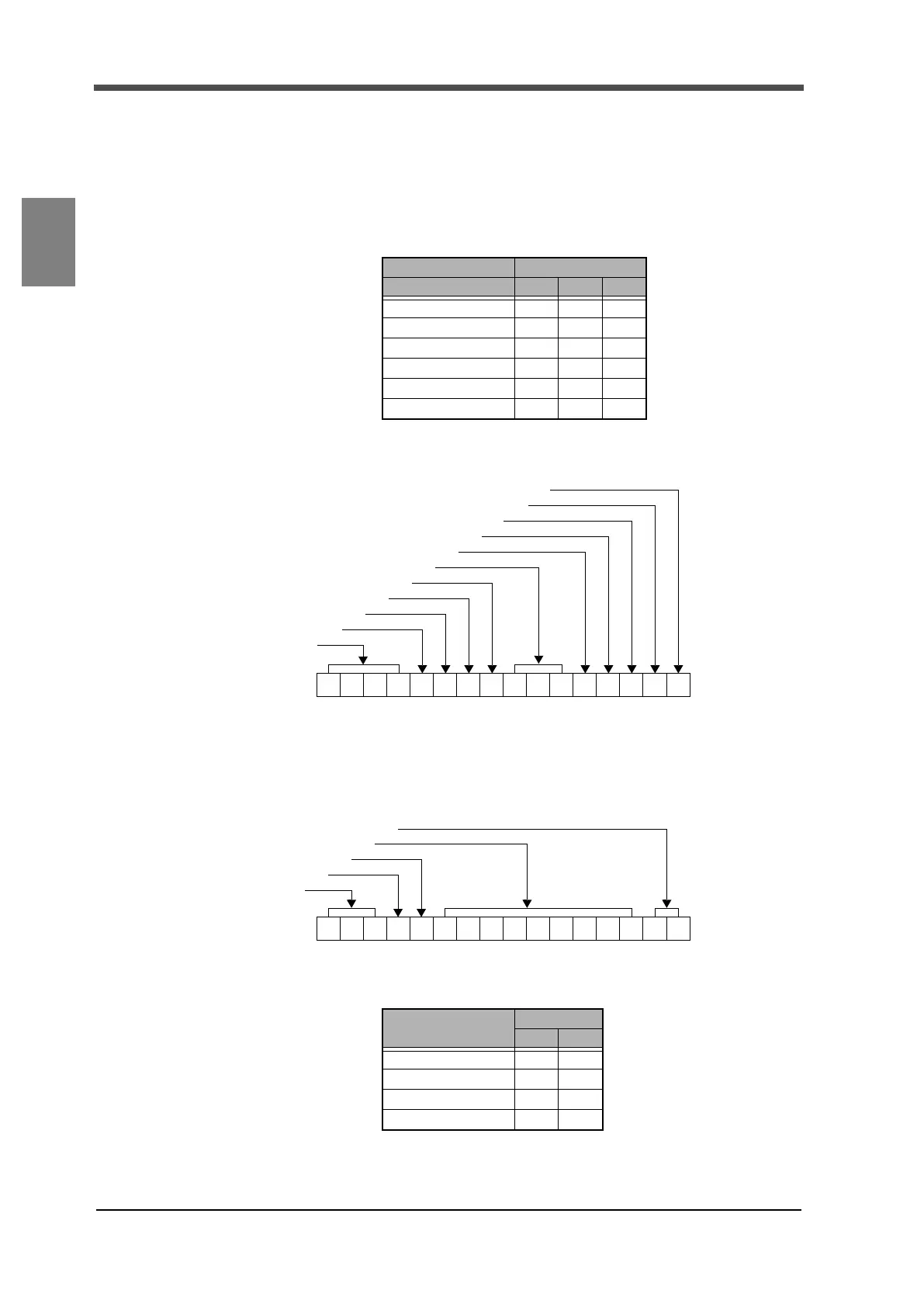

* Status 2 (measuring)
"1" is indicated when a status is ON.
* Status 3 (measuring)
・Decimal point: The decimal place is indicated.
Bit No.
Calibration error 6 5 4
2 010
3 011
4 100
5 101
6 110
7 111
Decimal place
Bit No.
1 0
None 00
0.0 01
0.00 10
0.000 11
Hold
Stable
Near zero
Zero tracking
Undefined
LL
LO
OK
1514131211109876543210
Undefined
HI
HH
Undefined
Calibration LOCK
Set value LOCK
Undefined
Decimal place
1514131211109876543210
