Linked with indicated value
Output is linked with indicated values.
Hold value is output even if sensor input signals change in case that indicated values are held.
■BCD B9 output selection
B9 terminal functions are changed.
Use the terminal at "0: 80000 (default value)" except when using near zero in particular.
■BCD B9 output selection setting method

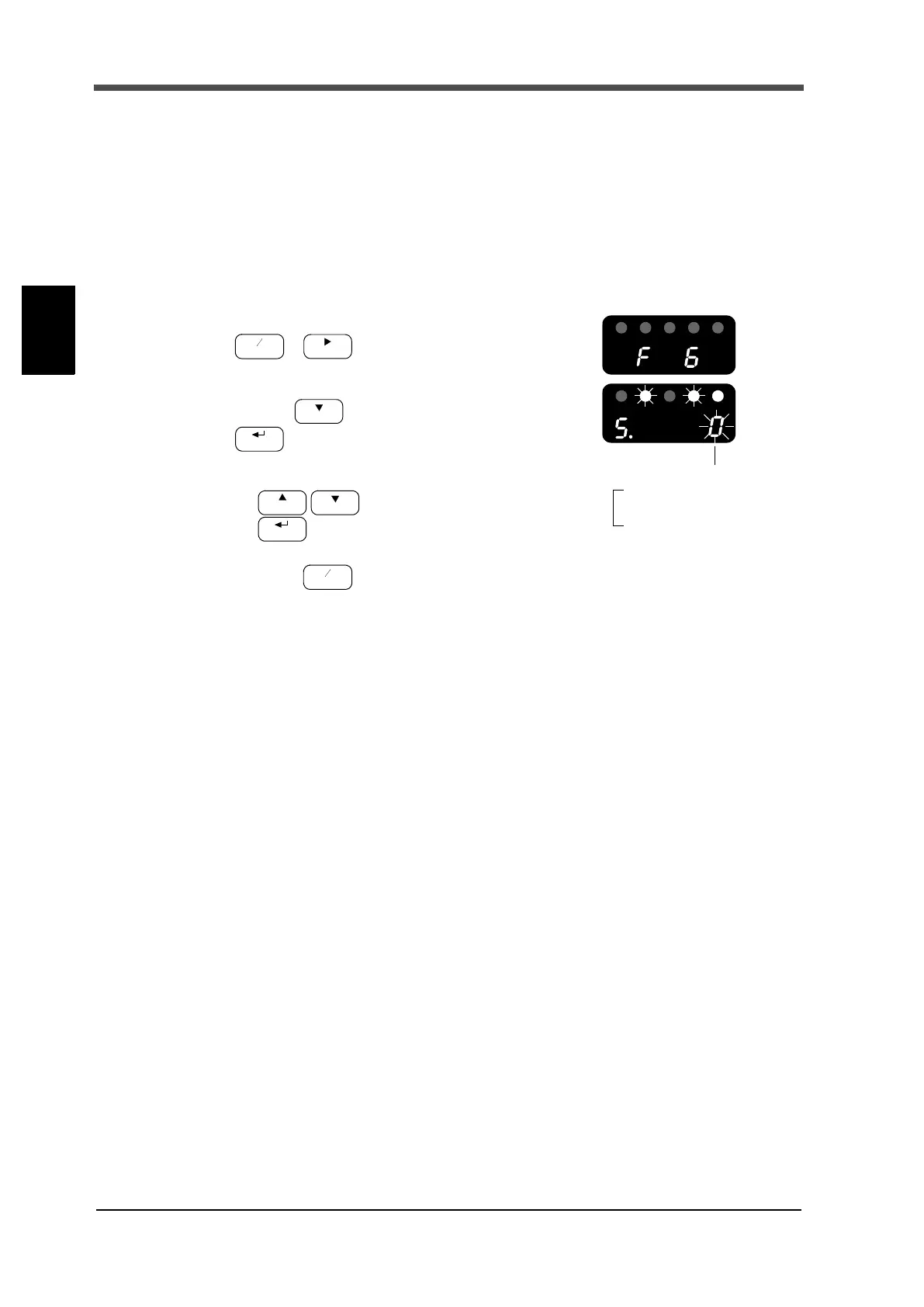

1. Select setting mode 6.
→ (five times)
2. Set "BCD B9 output selection".
Press the key five times.
Set the BCD B9 output selection using
the keys, and confirm it with
the key.
3. Press the key to return to the indicated value display.
■Sink type (BCO option)
Output
Output signal: Indicated value data (five-digit), 80000/near zero*, minus, OVER, stable,
STROBE
* Switch with setting value of BCD B9 output selection.
Output logic: Positive/negative logic selection
Output format: Sink type
Output transistor shall be ON when signal is ON.
When connecting input units such as PLC, connect a plus common type.
Rated voltage: 30V
Rated current: 50mA
Insulation method: Photo-coupler insulation
Input
Input signal: BCD data hold, logic selection
Input format: No-voltage contact input (self-powered)
Relays, switches, and transistors can be connected.
Signals are input by making short-circuit and open-circuit between input
terminals and a common terminal.
If connecting transistors, connect an NPN output type (sink type)
Current at the time of short circuit:
Approx. 6mA
Insulation method: Photo-coupler insulation
1: NZ
0: 80000
BCD B9 output selection
To Next Page
