13
2 Installation & Connection
13
Installation & Connection
Chapter
2

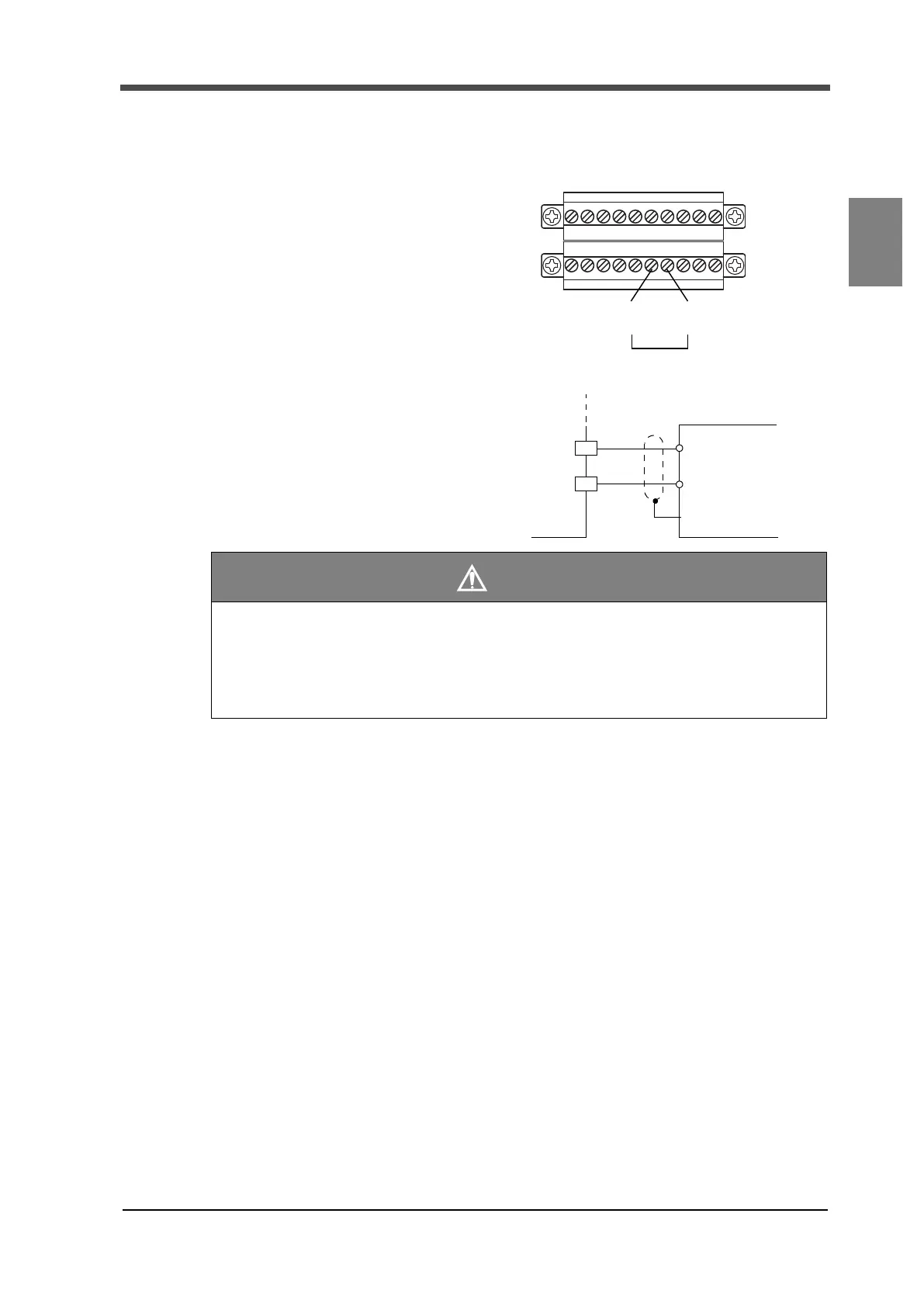

2-4. Connection of analog monitor output
(VOL OUT)
A voltage proportional to sensor inputs is output.
The voltage to be output is
approx. 2V per 1mV/V of sensor input.
Caution
● The VOL OUT terminal is not insulated from the internal circuit. Use shielded cables
for connection with external devices, and wire the cables within 2 to 3m.
● Do not short-circuit. This may cause malfunction.
● Do not apply voltage from outside. This will cause damage.
B6 B7
VOL OUT
+G
B6
＋
－
External device
Input resistance
2kΩ or more
SIG
GND
← Inside
B7
F325
Outside →
To Next Page
