■Rear panel
(1) Protective grounding
This is a protective grounding terminal block. Be sure to ground a protective grounding terminal in
order to prevent electric shock and trouble arising from static electricity. (A case and protective
grounding terminal are in continuity.)
Do not use screws other than the ones (with bind M4x8-tooth captive washer) for installing the
main unit.
(2) Options space
One of the following options can be selected.
- BCD parallel data output (sink type) (BCO)
- BCD parallel data output (source type) (BSC)
- D/A converter (voltage output) (DAV)
- D/A converter (current output) (DAI)
- RS-232C (232)
(3) AC power terminal block
Connect AC power cord. Input power supply is AC100 to 240V.
Frequency is 50/60Hz.
* Refer to P.21 “
■ DC spec. (specified at the time of order)” for DC specifications.

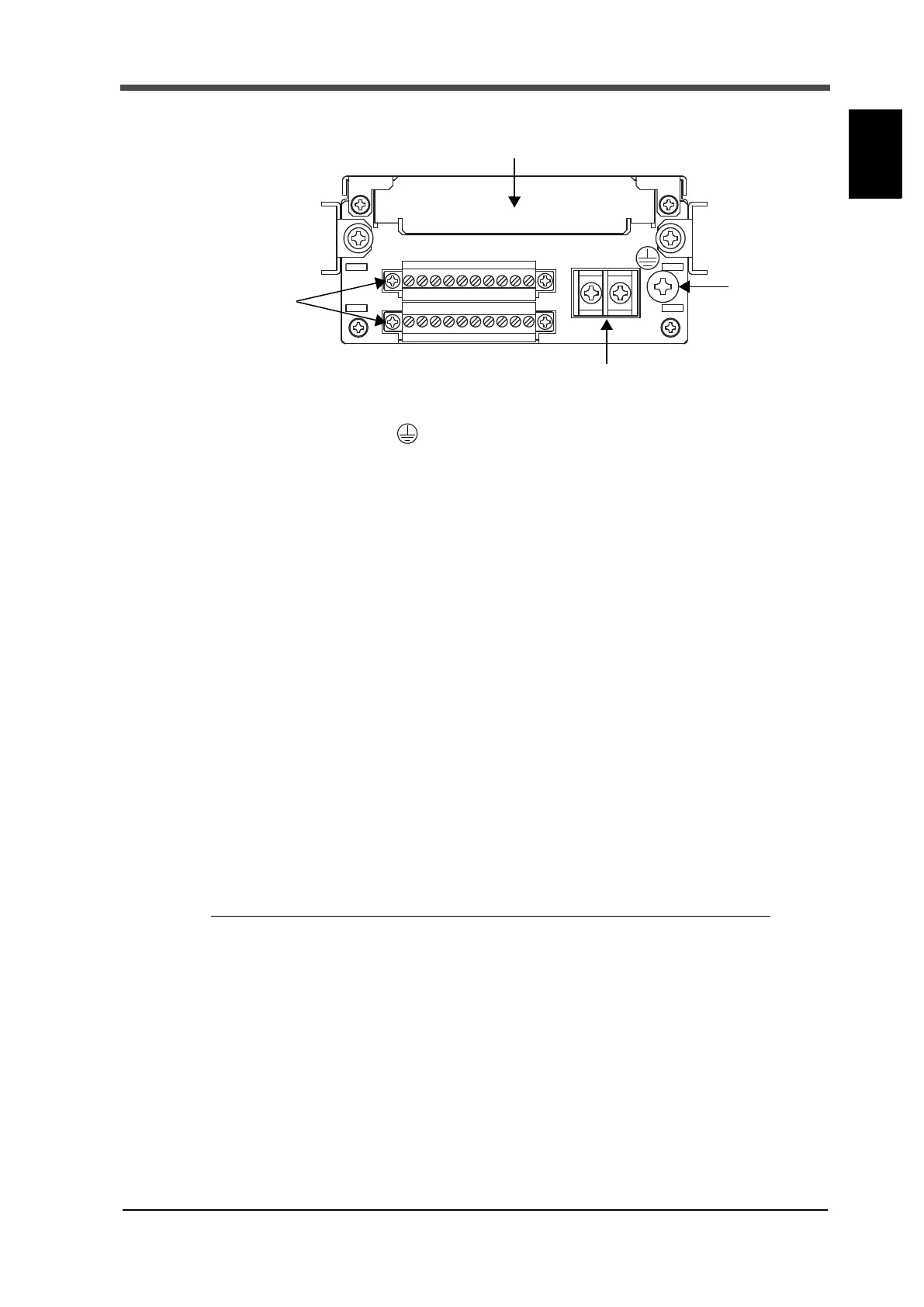

(1) Protective
(2) Options space
(3) AC power terminal block
(4) Signal I/O
grounding
terminal block
