36
5 Settings and Operations Related to Indicated Values
36
Settings and Operations Related to
Indicated Values
Chapter
5

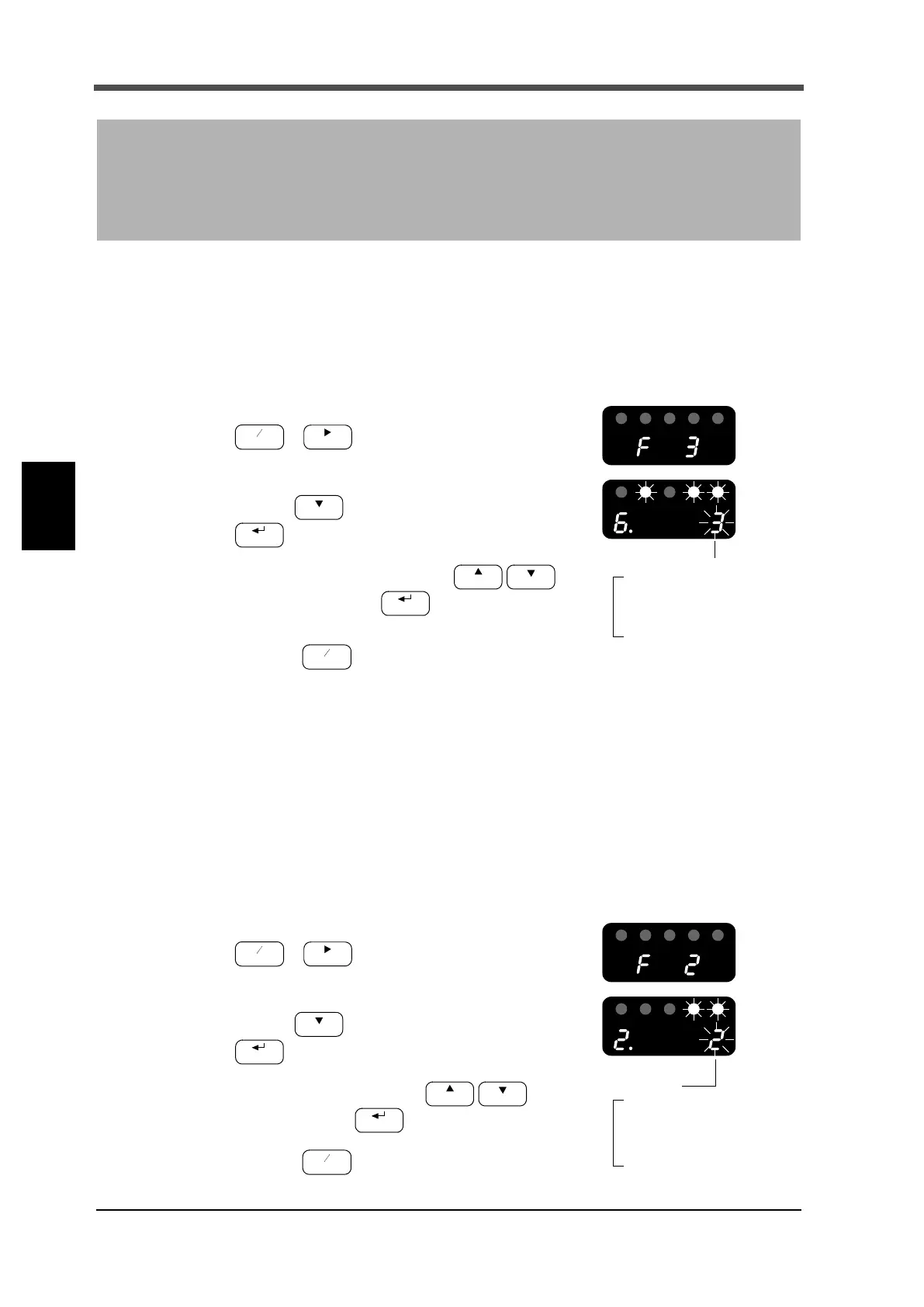

5-1. Display frequency
The display frequency of an indicated value per second is selected.
■Display frequency setting method
1.
Select setting mode 3.
→ (twice)
2. Select "display frequency".
Press the key six times.
Set the display frequency using the keys,
and confirm it with the key.
3. Press the key to return to the indicated value
display.
5-2. Analog filter
This low-pass filter screens input signals from a strain gauge type sensor and cancels unnecessary
noise. A cut-off frequency of a low-pass filter can be selected between 10Hz and 30kHz. This filter
suppresses frequency components higher than the set frequency. The higher the cut-off frequency,
the quicker the response to an input signal, but noise may also be displayed.
■Analog filter setting method
1.
Select setting mode 2.
→
2. Select "analog filter".
Press the key twice.
Set the analog filter using the keys, and
confirm it with the key.
3. Press the key to return to the indicated value
display.
5 Settings and Operations
Related to Indicated Values
3: 25 times/sec.
2: 13 times/sec.
1: 6 times/sec.
0: 3 times/sec.
Display frequency
7: 30kHz
5: 3kHz
3: 300Hz
Analog filter
6: 10kHz
4: 1kHz
2: 100Hz
1: 30Hz 0: 10Hz
To Next Page
