Unipulse F325 User Manual

80
12 Interface
80
Interface
Chapter
12

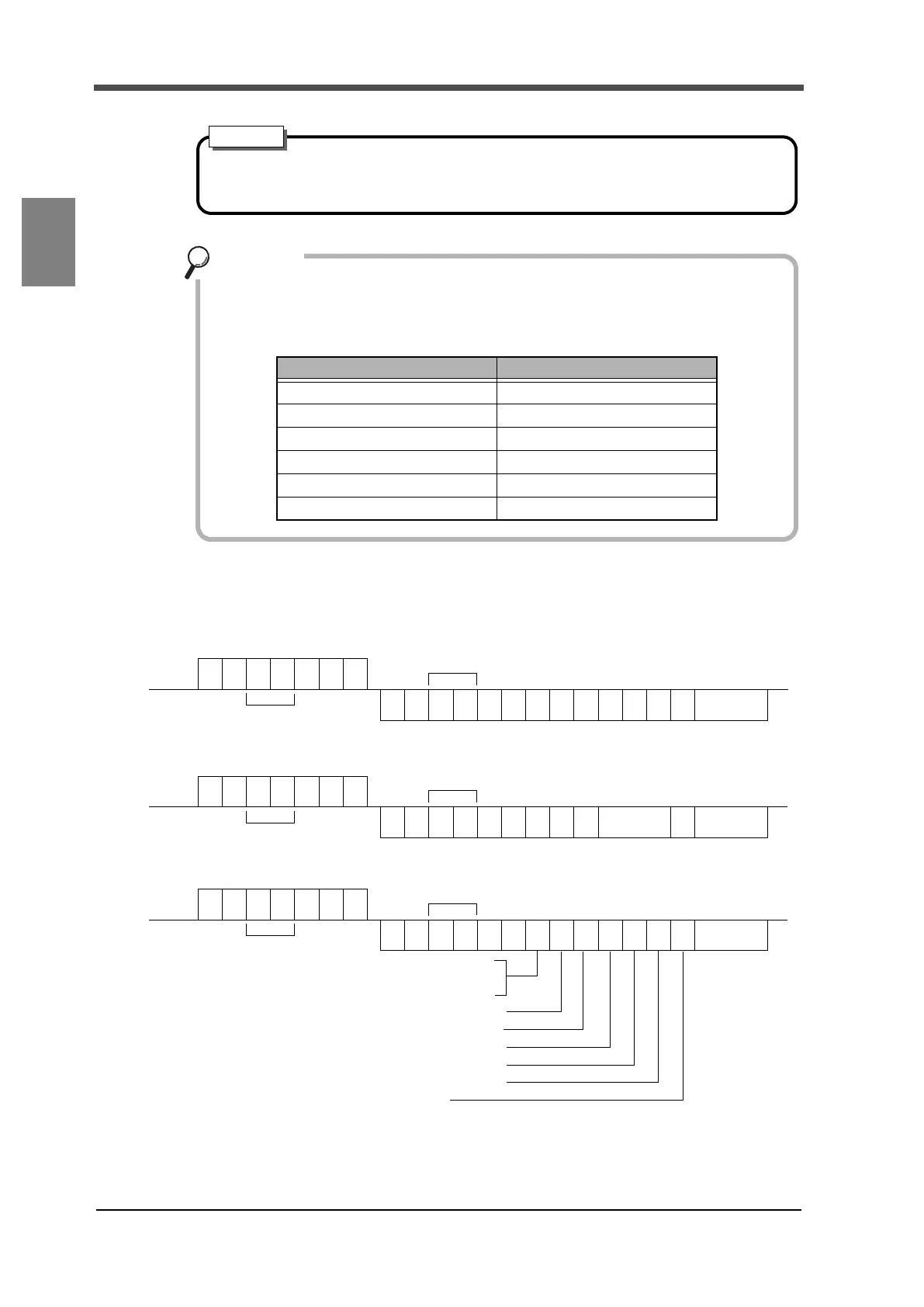

■UNI-Format commands
■Communication format for commands
- Read linked indicated values (sign, 5-digit, decimal point)
- Read non-linked indicated values (sign, 5-digit, decimal point)
- Read status 1
Refer to P.86 “■ Transmitting format for continuous transmission/printing” for
transmitting specifications.
Attention
Timing of continuous transmission
When Mode 1 or 2 is selected, the remote continuous transmissions
are as follows according to the communication baud rate settings.
Communication baud rate Remote continuous transmission
38400 bps 100 times/sec.
19200 bps 50 times/sec.
9600 bps 25 times/sec.
4800 bps 12 times/sec.
2400 bps 6 times/sec.
1200 bps 3 times/sec.
Key points
Host
F325
N
RA
＋
100 00
.
O RCRA
ID No.
ID
ID No.
Terminator
Host
F325
N
RB
＋
100 00
.
O RCRB
ID No.
ID
ID No.
Terminator
Host
F325
N
RC 0 0 0 0 0
0
O RCRC
ID No.
ID
ID No.
Terminator 0
When LOAD, LOAD, oFL1, oFL2. oLoAd
Zero tracking
HH
LL
Set value LOCK
Calibration LOCK
1: ON
0: OFF 1: ON
0: OFF 1: ON
0: OFF 1: ON
0: OFF 1: ON
0: OFF 1: ON
2 to 7Calibration error No.
0: OFFOther
