Unipulse F325 User Manual

10
2 Installation & Connection
10
Installation & Connection
Chapter
2
2-1. Installation to panel

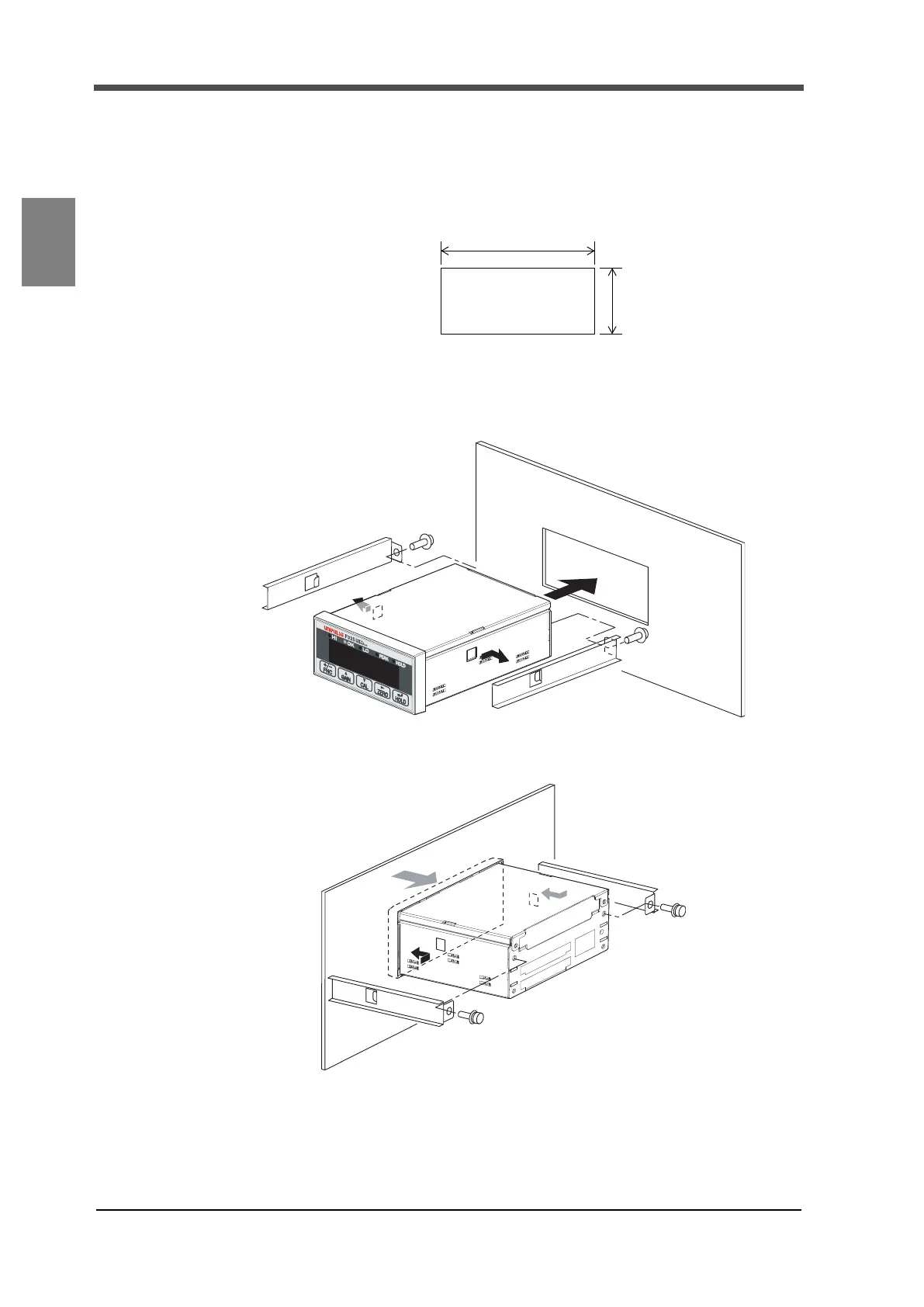

Use the following procedures when installing the F325 to the control panel.
1. Create holes on the panel in accordance with the panel cutout size.
2. Remove guide rails on both sides.
3. Fit the F325 in from the front of the panel.
4. Install the guide rails from the back and secure them using the screws included.
Panel cutout size
92(W)× 45(H)(mm)
[Unit: mm]
92
45
Installation panel thickness
1.6 to 3.2(mm)
+1
0
-
+1
0
-
